PU Helix Duct Hose
PU Helix Duct Hose

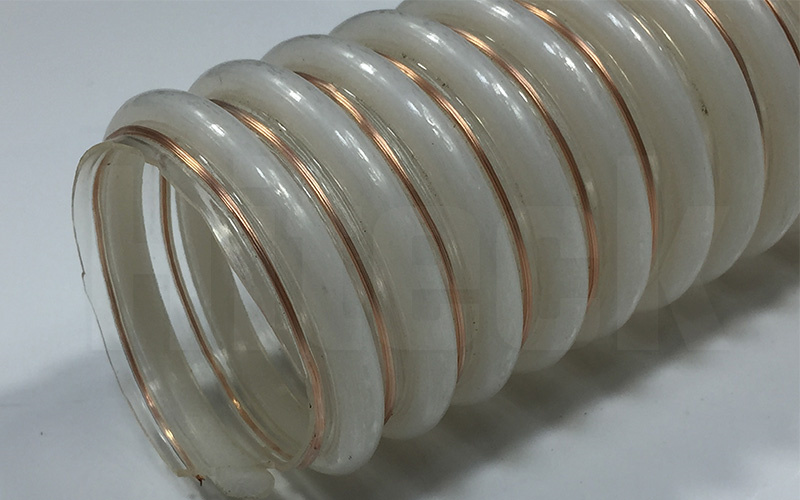

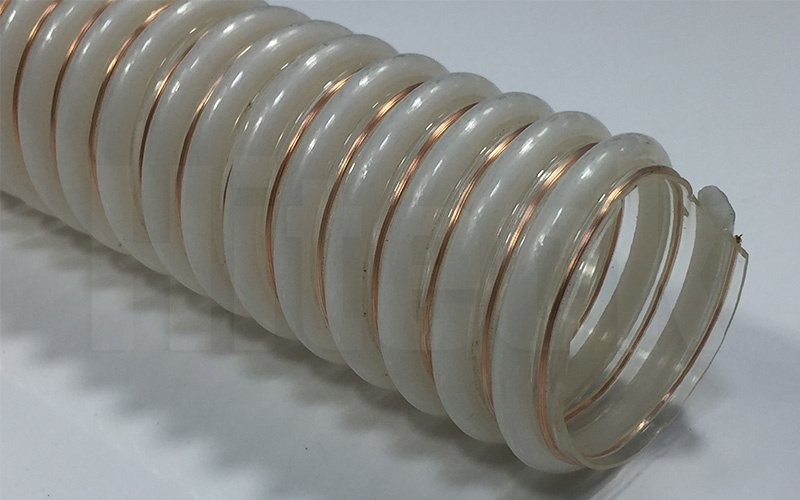

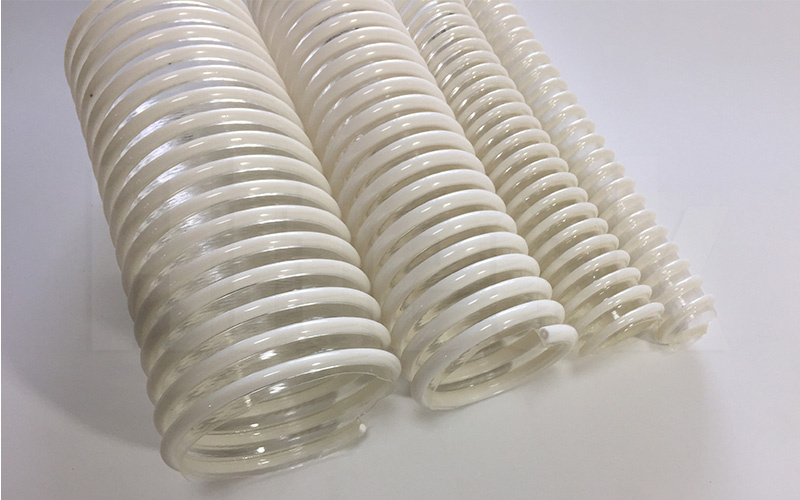

PU Helix Duct Hose is a flexible and transparent hose with a helix cover the body. It’s to transfer air, dust and other light materials in industry, chemical and so on. The clear tube makes you can see the medium flows inside the hose. While the smooth inner tube makes the transfer work more effective.
Details
Wall: Top grade of PU
Features: Different types are available
Very flexible with low weight Resistant to UV
Extremely compressible Highly transparent wall
Temperature: -40℃ (-104℉) to 90℃ (+194℉)
Size: ID 25mm to 305mm
PU Helix Duct Hose
The PU Helix Duct Hose is a lightweight flexible polyurethane hose designed for air, dust, and light material applications. This product is made from polyurethane hose materials and is recommended for industrial air movement, fume control, and dust collection applications. The polyurethane wall and Rigid PVC helix reinforcement gives the PU Helix Duct Hose excellent compressibility, abrasion resistance, and chemical resistance. One of the main advantages of polyurethane components is their excellent resistance to wear in both sliding and impact abrasion. Polyurethanes have excellent resistance to fuel, oils, grease, and many solvents. This makes them especially suited for applications such as automotive, steel and aluminum manufacture, and printing. These lightweight hoses are available in a black or clear flexible hose colors.
PU Helix Duct Hose Structure:
Wall: Top grade of PU
Spiral: Rigid PVC
Application:
As suction and transport hose especially suitable for below substance:
◆ Gaseous and liquid media
◆ Abrasive solids such as dusts, powders, chips and grains
◆ Also ideal as ventilation hose for air conditioning and ventilation system
Features:
● Extremely tearing-resistant with rigid reinforced PU helix
● Very abrasive
● Very smooth interior
● Flexible with low weight
● Extremely transparent
● Could be resistant to UV if requested
● Various sizes are available
● Comply to RoHS
Temperature: -40℃ (-104℉) to 90℃ (+194℉)
PU Helix Duct Hose Specification
| ID | OD | L | WP | BP | Weight | |||
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
| 3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
| 1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
| 1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
| 1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
| 1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
| 1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
| 1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
| 1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
| 1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
| 1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
| 1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
| 5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
| 5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
| 5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
| 5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
| 5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
| 5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
| 5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
| 5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
| 3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
| 3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
| 3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
| 1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
