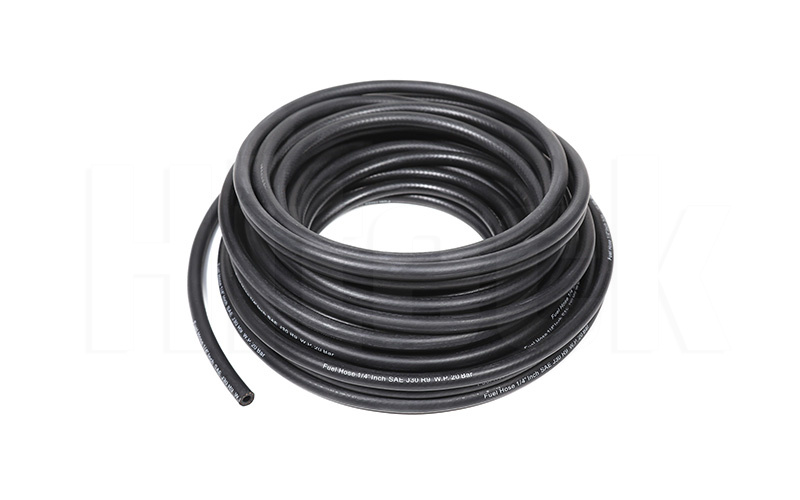

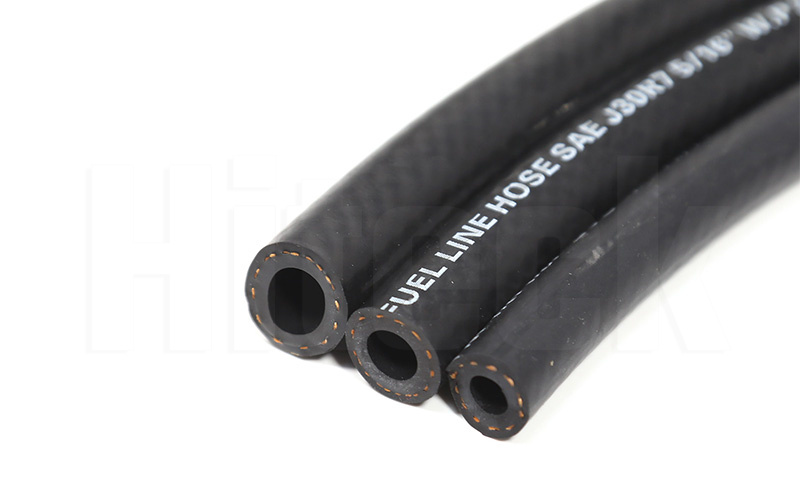

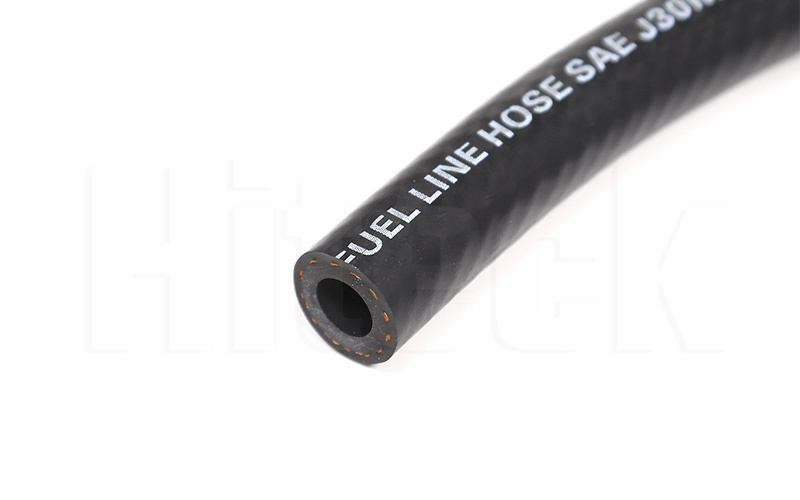

Rubber Fuel Hose SAE J30 R6
Rubber Fuel Hose SAE J30 R6
Rubber Fuel Hose SAE J30 R6 is made from NBR which has the best oil resistance among the rubbers. Thus it can work with fuel oil for long terms without aging. It can transfer diesel, petroleum and other oils in a vehicle fuel system.
Rubber Fuel Hose SAE J30 R6 Details
Tube: Smooth black fuel resistant NBR
Reinforcement: High strength polyester braid
Cover: Smooth, black, ozone and abrasion resistant synthetic rubber
Application: It is applied to circulate diesel, biodiesel, hydraulic oil, machinery oil and lubricaant or the oil products with the contents of aromatic substances no more than 30%.
Temperature range: -40℃ (-104 ℉) to +100℃ (+212 ℉)
Size: ID 5mm to 25mm
Rubber Fuel Hose SAE J30 R6
Structure:
Tube: Smooth black fuel resistant NBR
Reinforcement: High strength polyester braid
Cover: Smooth, black, ozone and abrasion resistant synthetic rubber
Application: It is applied to circulating diesel, biodiesel, hydraulic oil, machinery oil and lubricating oil etc or the oil products with the contents of aromatic substances not more than 30%.
Features:
● 100% New NBR Materials
● Aging resistant; insulation; acid and alkaline resistant
● Airtight; shock absorption, etc.
Temperature: -40℃ (-104 ℉ ) to +100℃ (+212 ℉ )
Rubber Fuel Hose SAE J30 R6 Specification
| ID | OD | L | WP | BP | Weight | |||
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
| 3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
| 1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
| 1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
| 1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
| 1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
| 1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
| 1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
| 1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
| 1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
| 1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
| 1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
| 5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
| 5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
| 5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
| 5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
| 5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
| 5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
| 5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
| 5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
| 3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
| 3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
| 3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
| 1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |
Rubber Fuel Hose SAE J30 R6
Rubber Fuel Hose SAE J30 R6
Rubber Fuel Hose SAE J30 R6
