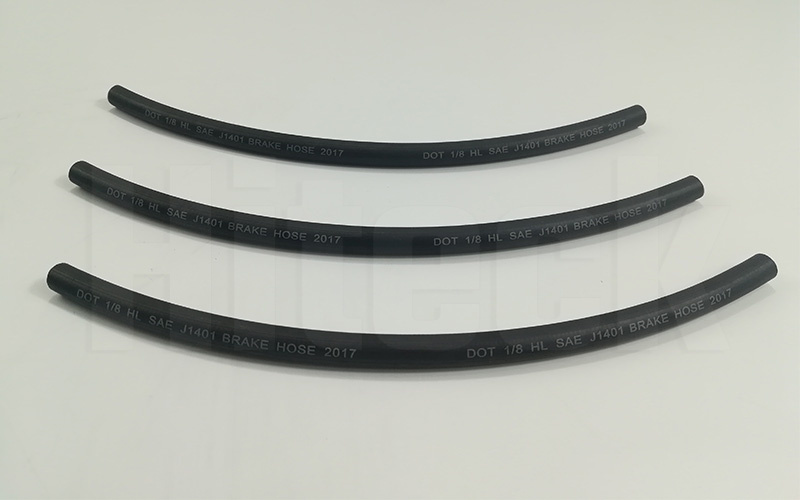

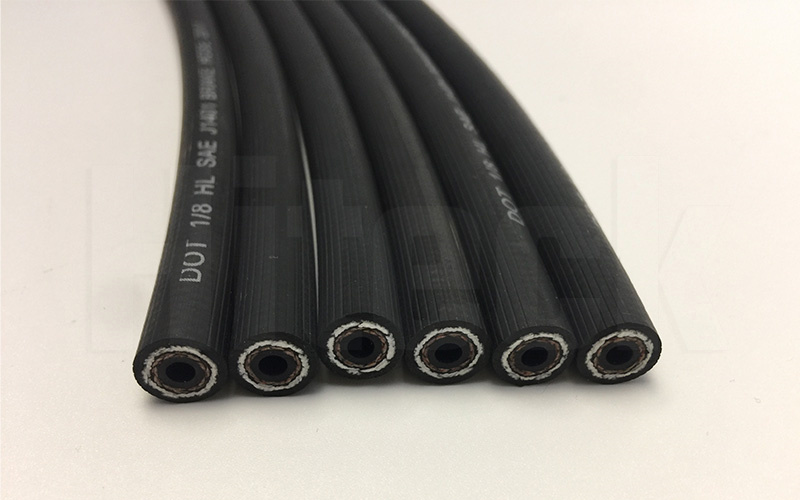

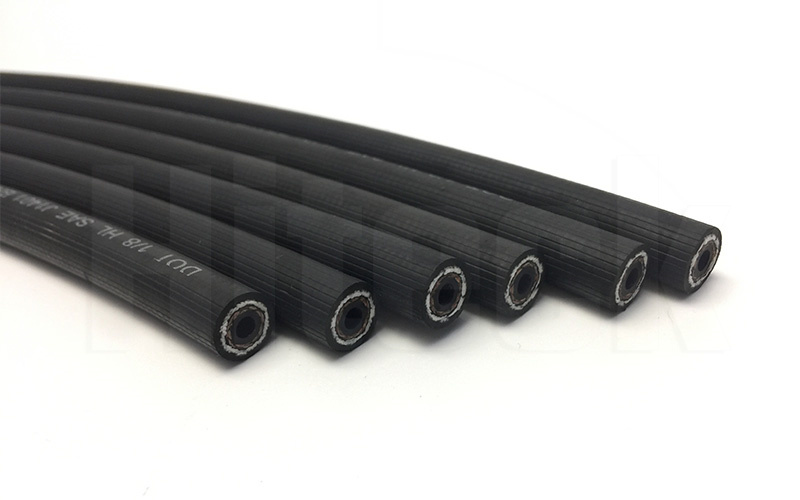

Rubber Brake Hose SAE J1401
Rubber Brake Hose SAE J1401
Rubber Brake Hose SAE J1401 adopts EPDM as the raw materal of inner tube and cover. Because it has excellent resistance to wear and aging. Besides, it can bear higher working temperature. It also has a high strength fibre braided reinforce.
Rubebr Brake Hose SAE J1401 Details
Tube: excellent ozone resistant EPDM
Reinforcement: High strength polyester braided
Cover: abrasion and weather resistant EPDM
Application: Designed to convey air in brake systems of truck, lorry, tailer and other heavy duty vehicle
High pressure resistant, lower volumetric expansion, flexible, small bend radius; Aging, oil and cold resistant with long lifespan
Temperature range: -40℃ (-140 ℉ ) to +121℃ (+250 ℉ )
Size:ID 3.2mm to 4.8mm
Rubber Brake Hose SAE J1401

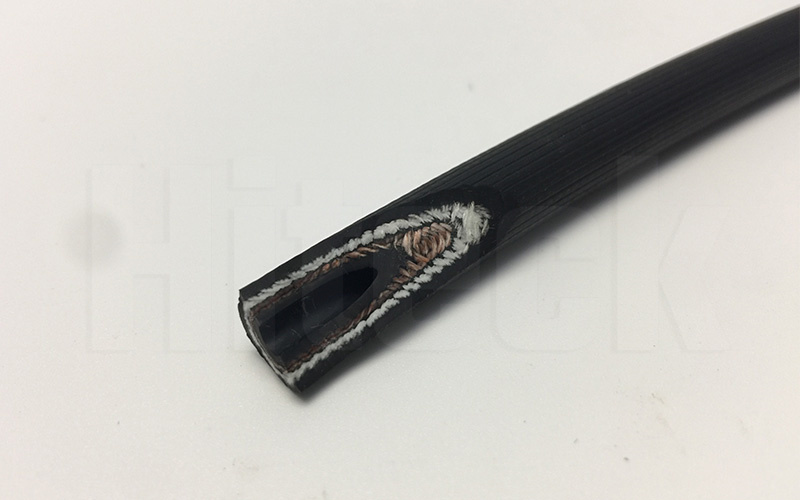

Structure:
Tube: Special rubber formula with perfect brake fluid compatibility
Reinforcement: High tensile braided fiber
Cover: Black, weather and aging resistant synthetic rubber
Application:
Hydraulic brake hose act as a pressure transmission for automotive hydraulic brake system. It is used for cars, motorcycles, light trucks and other light and heavy duty vehicles in hydraulic brake system.
Features:
● High pressure resistance, lower volumetric expansion, flexible, small bend radius,
● Aging, oil and cold resistant with long lifespan
Temperature: -40℃ (-40 ℉) to +121℃ (+250 ℉)
Rubber Brake Hose SAE J1401 Specification
| ID | OD | L | WP | BP | Weight | |||
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
| 3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
| 1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
| 1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
| 1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
| 1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
| 1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
| 1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
| 1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
| 1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
| 1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
| 1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
| 5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
| 5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
| 5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
| 5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
| 5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
| 5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
| 5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
| 5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
| 3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
| 3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
| 3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
| 1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |
Rubber Brake Hose SAE J1401
Rubber Brake Hose SAE J1401
Rubber Brake Hose SAE J1401
