Air Brake Hose SAE J1402
Rubber Brake Hose SAE J1402
Rubber Brake Hose SAE J1402 is to transfer brake oil in the air brake system. It can transfer the fluid with a temperature range from -40℃ to 121℃. While the working pressure can be max 1.1 Mpa.
Rubber Brake Hose SAE J1402 Details
Tube: excellent ozone resistant EPDM
Reinforcement: High strength polyester braid
Cover: abrasion and weather resistant EPDM
Application: Designed for conveying air in brake systems of truck, lorry, tailer and other heavy duty vehicle
High pressure resistance, lower volumetric expansion, flexible, small bend radius; Aging, oil and cold resistant with long lifespan
Temperature range: -40℃ (-140 ℉) to +121℃ (+250 ℉)
Size: ID 5mm to 25mm
Rubber Brake Hose SAE J1402
Construction:
Tube: excellent ozone resistant EPDM
Reinforcement: high tensile fiber braid
Cover: abrasion and weather resistant EPDM
Application: designed to convey air in brake systems of truck, lorry, tailer and other heavy duty vehicle
Features:
● High pressure resistant, lower volumetric expansion, flexible, small bend radius
● Aging, oil and cold resistant with long lifespan
Temperature: -40℃ (-140 ℉) to +121℃ (+250 ℉)
Rubber Brake Hose SAE J1402 Specification
| ID | OD | L | WP | BP | Weight | |||
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
| 3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
| 1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
| 1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
| 1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
| 1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
| 1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
| 1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
| 1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
| 1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
| 1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
| 1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
| 5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
| 5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
| 5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
| 5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
| 5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
| 5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
| 5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
| 5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
| 3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
| 3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
| 3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
| 1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |
Rubber Brake Hose SAE J1402

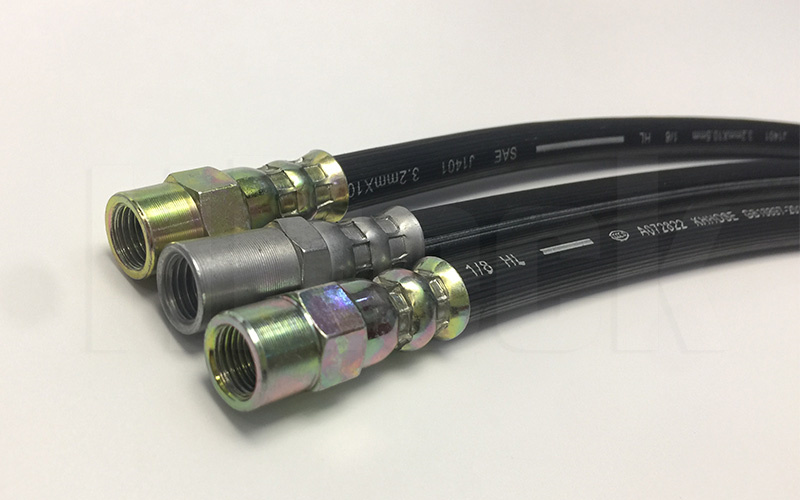

Rubber Brake Hose SAE J1402

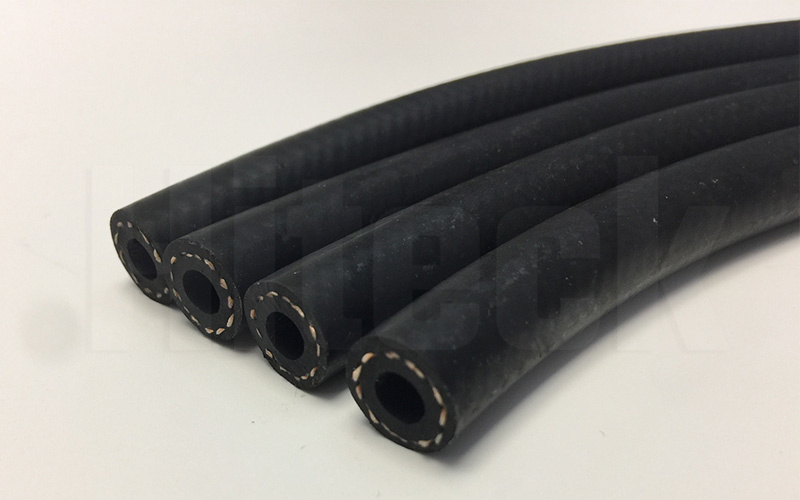

Rubber Brake Hose SAE J1402
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
