Rubber Heater Hose SAE J20 R3
Rubber Heater Hose SAE J20 R3
Twin Welding Hose has a special structure. There is a inner tube which is made from CDM or EMDP. Out of inner tube there is a barrier made from nylon. Then, there is a buffer made from EPDM or NBR. Then there is a polyester reinforce. While the outer is a EPDM cover.
Details
Tube: CSM/EPDM
Barrier-Nylon alloy
Buffer-EPDM/NBR
Reinforcement: High tensile synthetic yarn (Polyester) Cover: Black smooth EPDM
Application: to convey hot water predominantly in vehicles
Temperature range: -30℃ (-86 ℉) to +110℃ (+230 ℉)
Size: ID 10mm to 25mm
Rubber Heater Hose SAE J20 R3
Structure:
Tube: Special rubber formula with perfect brake fluid compatibility
Reinforcement: High tensile polyester yarn
Cover: Black, smooth EPDM
Application: to convey hot water predominantly in vehicles
Features:
● Good Quality EPDM Materials
● Heat, ozone and weather resistance
● ISO/TS 16949:2009 Registered
Temperature: -30℃ (-86 ℉) to +110℃ (+230 ℉)
Rubber Heater Hose SAE J20 R3 Specification
| ID | OD | L | WP | BP | Weight | |||
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
| 3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
| 1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
| 1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
| 1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
| 1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
| 1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
| 1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
| 1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
| 1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
| 1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
| 1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
| 5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
| 5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
| 5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
| 5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
| 5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
| 5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
| 5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
| 5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
| 3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
| 3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
| 3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
| 1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |

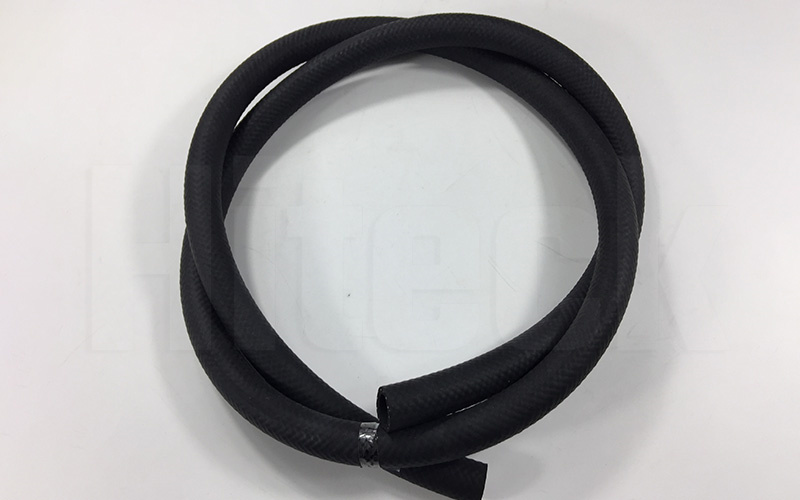

Rubber Heater Hose SAE J20 R3

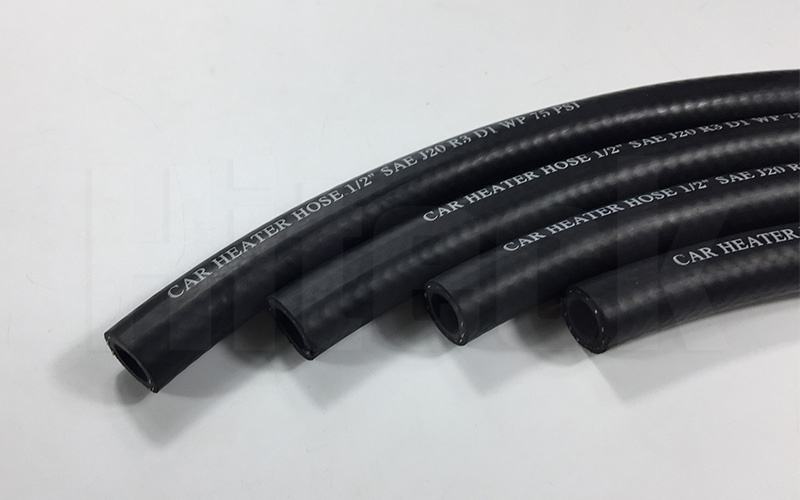

Rubber Heater Hose SAE J20 R3

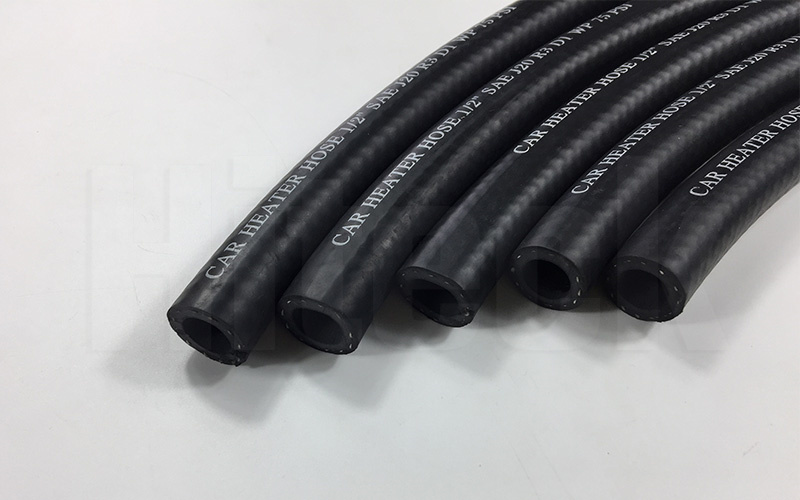

Rubber Heater Hose SAE J20 R3
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
