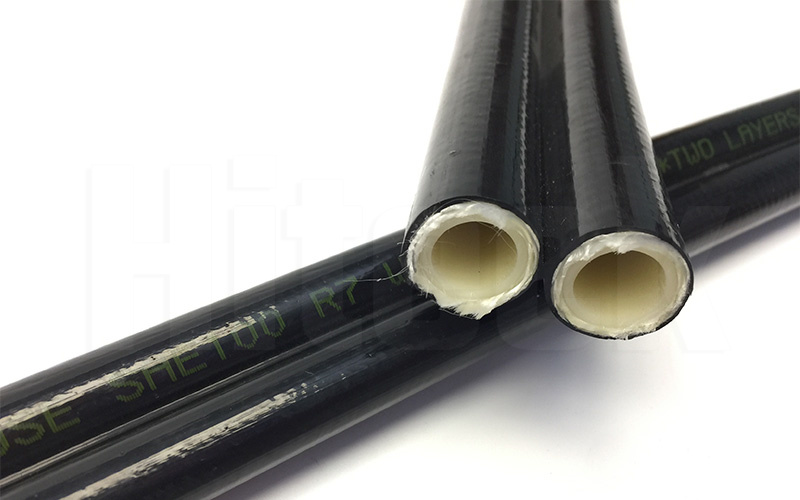

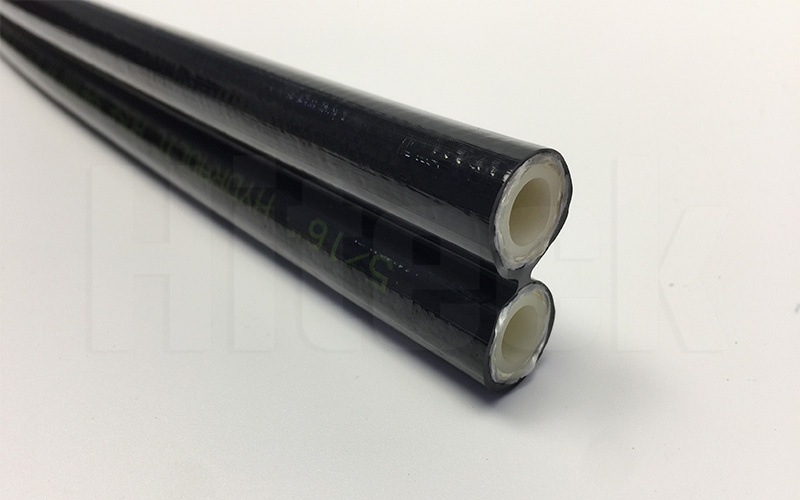

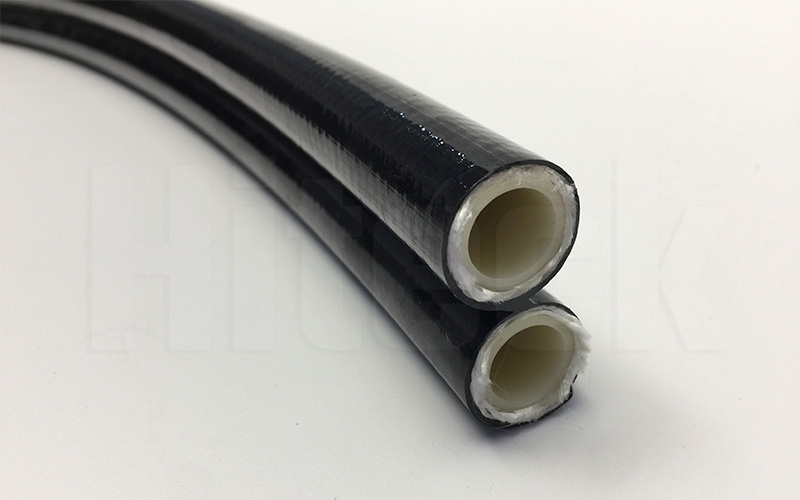

Hydraulic Hose SAE 100 R7
Hydraulic Hose SAE 100 R7
Hydraulic Hose SAE 100 R7 adopts PA as the raw material of the inner tube. PA has high tensile strength and pressure resistance. Besides, it has excellent corrosion resistance. Thus it’s ideal for corrosive materials such as oil. Besides hydraulic system, it’s also ideal for pneumatic tools.
Hydraulic Hose SAE 100 R7 Details
Inner tube: Oil resistant seamless thermoplastic Polyamide tube.
Reinforce: one or two layers of high tensile synthetic fibre braid.
Cover: Black and high abrasion resistant PU.
SAE100 R7 Thermoplastic Hydraulic Hose Application:
Medium pressure hydraulic and pneumatic systems. Exceeds SAE 100R7 requirements. For pneumatic or gaseous systems, use perforated (pin-pricked) hose.
Temperature range: -40℃ (-104 ℉) to +100℃ (+212 ℉)
Hydraulic Hose SAE 100 R7
SAE 100R7 Thermoplastic Hydraulic Hose is suitable for delivering synthetic, petroleum and water based hydraulic fluids in the working temperature from -40 °C to +100 °C. 100R7 Hydraulic Hose is non-conductive due to its special materials. 100r7 hose is composed of three parts: tube, reinforcement and cover. The tube is made from high quality oil resistant thermoplastic, making the hose widely used in delivering synthetic, petroleum and water based hydraulic fluids. The reinforcement is made from suitable synthetic fiber and the cover is made from high quality thermoplastic, which is resistant to weather and hydraulic fluids. Inquiry now!
SAE 100 R7 Fibre Braid
| Metric Size | Inch Size | SAE Dash size | ID | OD | Allowed Tolerance | WP | BP | BR | ||||
| Standard | one layer | two layers | one layer | two layers | one layer | two layers | one layer | two layers | ||||
| mm | inch | dash | mm | mm | mm | mm | psi | psi | mpa | mpa | mm | mm |
| 5 | 3/16 | 03 | 4.8 | 10.3 | 10.8 | ±0.10 | 3045 | 3620 | 84.0 | 100.0 | 35 | 55 |
| 6.3 | 1/4 | 04 | 6.3 | 12.7 | 13.3 | ±0.10 | 2900 | 3980 | 80.0 | 110.0 | 50 | 75 |
| 8 | 5/16 | 05 | 7.9 | 14.3 | 15.0 | ±0.10 | 2755 | 3770 | 76.0 | 105.0 | 50 | 85 |
| 10 | 3/8 | 06 | 9.5 | 15.9 | 18.0 | ±0.10 | 2540 | 3620 | 70.0 | 100.0 | 80 | 100 |
| 12.5 | 1/2 | 08 | 12.7 | 19.8 | 21.6 | ±0.15 | 2030 | 3040 | 56.0 | 84.0 | 100 | 140 |
| 16 | 5/8 | 10 | 15.9 | 23.3 | 23.6 | ±0.15 | 1885 | 2320 | 52.0 | 64.0 | 160 | 165 |
| 19 | 3/4 | 12 | 18.9 | 26.5 | 26.4 | ±0.15 | 1305 | 2030 | 36.0 | 56.0 | 180 | 195 |
| 25 | 1 | 16 | 25.4 | 34.0 | 34.0 | ±0.20 | 1015 | 1520 | 28.0 | 42.0 | 250 | 256 |
SAE 100 R7 Steel Wire Braid
| Metric Size | Inch Size | SAE Dash size | ID | OD | Allowed Tolerance | WP | BP | BR | ||||
| Standard | one layer | two layers | one layer | two layers | one layer | two layers | one layer | two layers | ||||
| mm | inch | dash | mm | mm | mm | mm | psi | psi | mpa | mpa | mm | mm |
| 6.3 | 1/4 | 04 | 6.3 | 12.7 | 13.3 | ±0.10 | 3990 | 5070 | 110.0 | 140.0 | 40 | 40 |
| 8 | 5/16 | 05 | 7.9 | 14.3 | 14.9 | ±0.10 | 3620 | 4710 | 100.0 | 130.0 | 55 | 50 |
| 10 | 3/8 | 06 | 9.5 | 15.9 | 16.7 | ±0.10 | 3260 | 4200 | 90.0 | 116.0 | 65 | 70 |
| 12.5 | 1/2 | 08 | 12.7 | 19.8 | 19.8 | ±0.15 | 2540 | 3770 | 70.0 | 105.0 | 85 | 80 |
| 16 | 5/8 | 10 | 15.9 | 23.3 | 23.3 | ±0.15 | 2030 | 2900 | 56.0 | 80.0 | 115 | 130 |
| 19 | 3/4 | 12 | 18.9 | 26.5 | 26.0 | ±0.15 | 1740 | 2540 | 48.0 | 70.0 | 140 | 160 |
| 25 | 1 | 16 | 25.4 | 34.0 | 33.0 | ±0.20 | 1450 | 1740 | 40.0 | 48.0 | 180 | 220 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
What is the material of 100 R7?
The inner tube is oil resistant polyamide and the reinforce can be both fibre and steel wire braid. While the cover is abrasion resistant PU.
What's the general application of such hose?
100 R7 hydraulic hose mainly serves in various hydraulic systems. Besides, it’s also a good choice for vehicles in the brake system.
Can I ask for other colors besides black?
Of course. We offer you custom service, all the factors like color, size and length are available.
