Hydraulic Hose SAE 100 R6
Hydraulic Hose SAE 100 R6
Hydraulic Hose SAE 100 R6 can transfer petroleum based fluids such as lubricant at lower pressure. Because it has only a single layer of wire braid. However, SAE 100 R6 hose is more flexible than other hydraulic hoses.
Hydraulic Hose SAE 100 R6 Details
Tube: Black and oil resistant synthetic rubber.
Reinforcement: one layer of fibre braid
Cover: Black, oil, abrasion and weather resistant thin synthetic rubber.
Temperature Range: -40℉ to +250℉ (-40℃ to +121℃)
Hydraulic Hose SAE 100 R6
SAE 100 R6 textile reinforced hydraulic hose does great job in low pressure conditions, especially where tight routing is urgently required. It is composed of three parts: tube, reinforcement and cover. The tube is made from high quality black synthetic rubber, which is resistant to oil, abrasion and corrosion. Therefore, the hose is widely used in the delivery of petroleum and water based hydraulic fluids.The reinforcement is made from one layer of braided textile, making it widely used in low pressure applications. The cover is made from high quality synthetic rubber, which is resistant to abrasion, corrosion, weather, ozone, cut, aging and sunlight. The hose has longer service life as a result. Inquiry Now!
Hydraulic Hose SAE100 R6 Is Ideal For:
Low-pressure hydraulic lines. Exceeds the requirements of SAE 100 R6 AT.

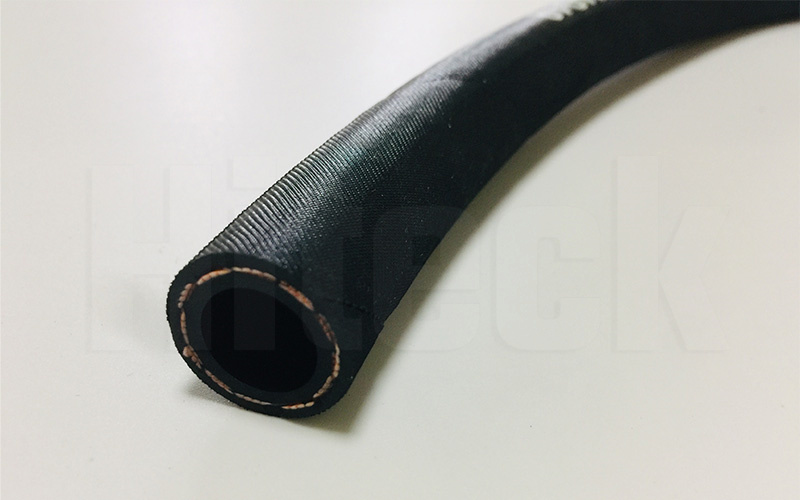

Structure:
Inner tube: oil resistant NBR
Reinforcement: single layer of fibre braided
Cover: oil and weather resistant synthetic rubber
Hydraulic Hose SAE 100 R6 Application:
Low working pressure conditions including return & suction lines, power steering return hoses, lube lines and air lines without brake applications.
Hydraulic Hose SAE100 R6 Temperature Range: -40℃ (-104 ℉) to +100℃ (+212 ℉)
Hydraulic Hose SAE 100 R6
| ID | OD | L | WP | BP | Weight | |||
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
| 3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
| 1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
| 1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
| 1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
| 1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
| 1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
| 1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
| 1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
| 1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
| 1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
| 1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
| 5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
| 5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
| 5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
| 5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
| 5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
| 5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
| 5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
| 5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
| 3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
| 3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
| 3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
| 1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |

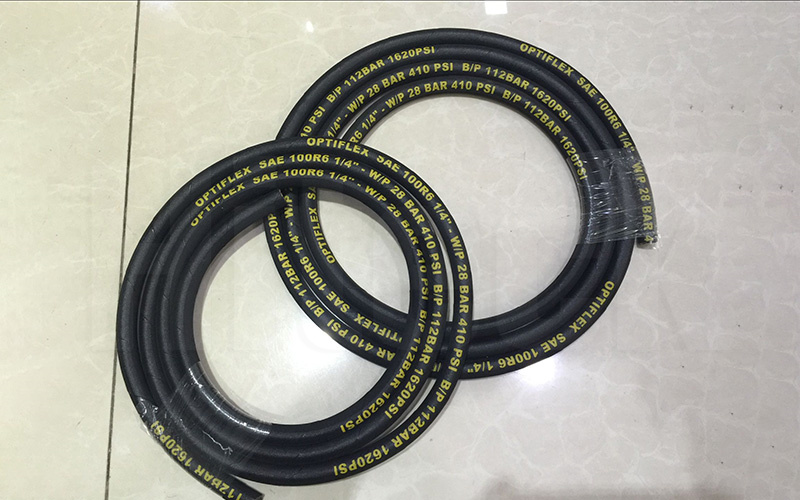

Hydraulic Hose SAE 100 R6

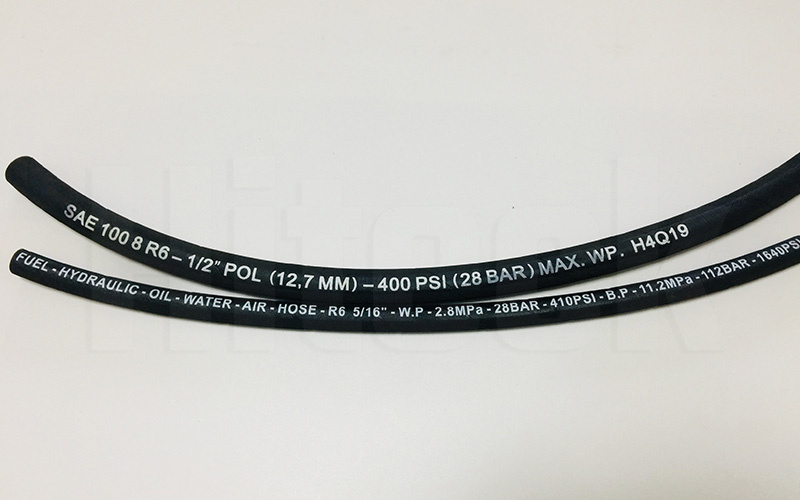

Hydraulic Hose SAE 100 R6
Hydraulic Hose SAE 100 R6
