PVC Layflat Hose
PVC Layflat Hose

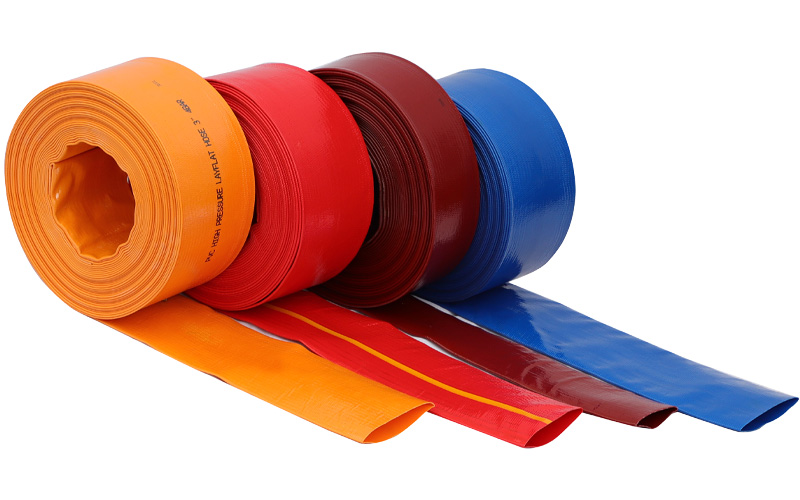

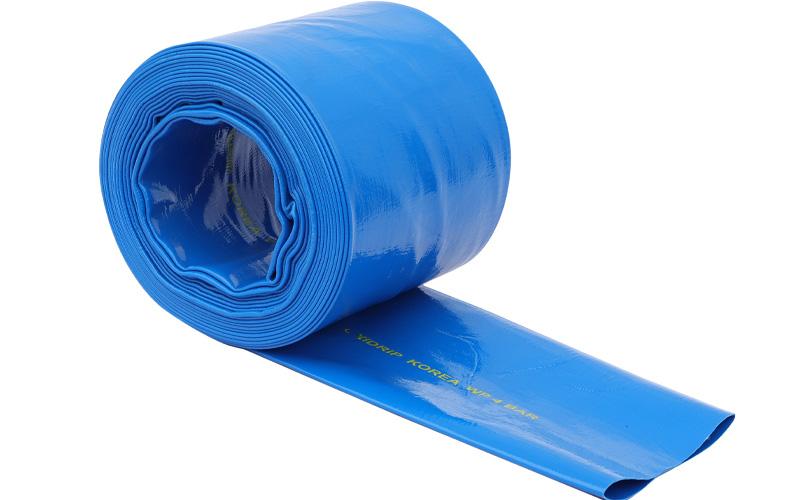

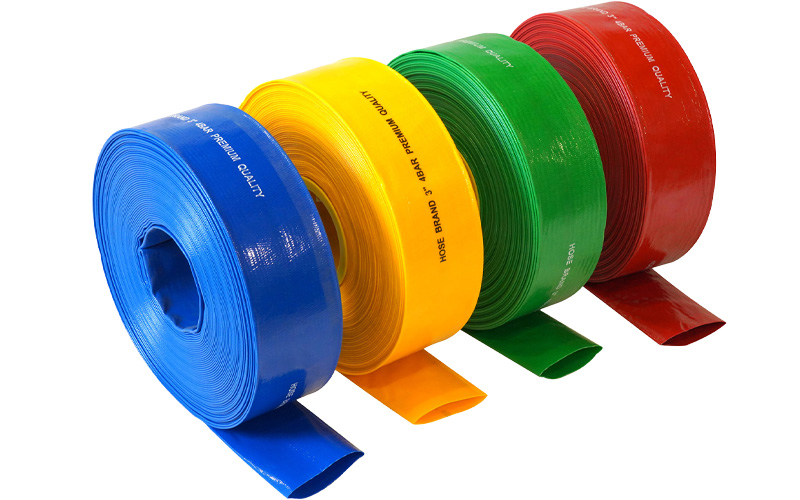

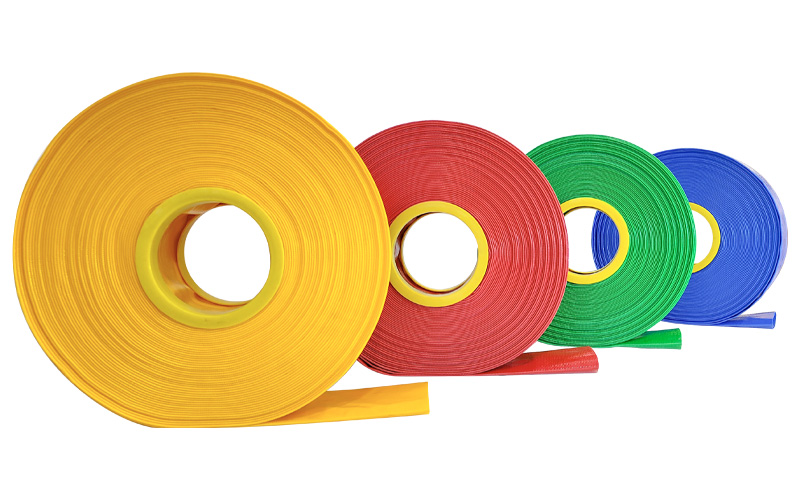

PVC Layflat Hose is a flat PVC hose for water discharge and transfer. Thus it is also known as water discharge hose, water pump discharge hose and layflat irrigation hose. Such layflat water hose is widely used in various industries such as agriculture, construction, mining and water treatment.
Details
Tube and Cover: PVC, blue, orange, red.
Reinforcement: high tensile polyester braid
Temperature: -10℃(-50℉) to 65℃(+150℉)
Advantage: Anti aging, long working life, non toxic, odorless, light in weight and flexible
Size: 3/4″ to 8″
PVC Layflat Hose
Our PVC layflat hose is also called lay flat hose, water discharge hose, irrigation water hose, pump hose and layflat discharge hose. Such PVC hose is mainly for water discharge. While the usages mainly include irrigation, mining and construction. Besides, you can use it to deliver light chemicals. Because it has a certain chemical resistance.
Such flat water hose is light in weight and extremely flexible. Thus it is easy to transport and recycle. Besides, it is kind resistant. Thus it can gurantee a reliable water supply in irrigation. At the same time, it has good ozone resistance. Thus it can work at any weather conditions. More important, it is cost-effective. Thus it is the idela choice for any water transfer applications.
Such PVC hose can be coupled with aluminum, malleable or Gator Lock shank connectors or quick connects through a variety of methods, including standard hose clamps or crimp on connectors.
PVC Layflat Hose Structure:
Tube and Cover: high quality PVC
Reinforcement: high tensile polyester braid
Lay Flat Discharge Hose Application:
Lay flat water hose is suitable for light and heavy duty applications.It widely serves in agriculture, water pump, pool & spa, construction, mining, etc. Besides, it is ideal for emergency, for example, flood. With large diameter layflat hoses, it is efficient to discharge the flood. In some cases, people use it as garden hose.
PVC layflat hose Features:
Light weight and flexible
Corrosion resistant, anti-aging
Easy to handle and store
Various colors are available
Assembly and custom lengths are available
Nontoxic and odorless
Burst pressure is 3 times that of working pressure
Temperature: -10℃ (-50℉) to + 60°C (+ 140°F)
Light Duty
| ID | WP | BP | Length | |||
| inch | mm | psi | bar | psi | bar | m/roll |
| 3/4" | 20 | 30-45 | 2-3 | 90-135 | 6-9 | 100 |
| 1" | 25 | 30-45 | 2-3 | 90-135 | 6-9 | 100 |
| 1-1/4" | 32 | 30-45 | 2-3 | 90-135 | 6-9 | 100 |
| 1-1/2" | 38 | 30-45 | 2-3 | 90-135 | 6-9 | 100 |
| 2" | 51 | 30-45 | 2-3 | 90-135 | 6-9 | 100 |
| 2-1/2" | 64 | 30-45 | 2-3 | 90-135 | 6-9 | 100 |
| 3" | 76 | 30-45 | 2-3 | 90-135 | 6-9 | 100 |
| 4" | 102 | 30-45 | 2-3 | 90-135 | 6-9 | 100 |
| 5" | 127 | 30-45 | 2-3 | 90-135 | 6-9 | 50 |
| 6" | 153 | 30-45 | 2-3 | 90-135 | 6-9 | 50 |
| 8" | 203 | 30-45 | 2-3 | 90-135 | 6-9 | 50 |
| 10" | 254 | 30-45 | 2-3 | 90-135 | 6-9 | 50 |
| 12" | 305 | 30-45 | 2-3 | 90-135 | 6-9 | 50 |
Standard Duty
| ID | WP | BP | Length | |||
| inch | mm | psi | bar | psi | bar | m/roll |
| 3/4" | 20 | 58 | 4 | 218 | 15 | 100 |
| 1" | 25 | 58 | 4 | 218 | 15 | 100 |
| 1-1/4" | 32 | 58 | 4 | 218 | 15 | 100 |
| 1-1/2" | 38 | 58 | 4 | 218 | 15 | 100 |
| 2" | 51 | 58 | 4 | 174 | 12 | 100 |
| 2.5" | 64 | 58 | 4 | 174 | 12 | 100 |
| 3" | 76 | 58 | 4 | 174 | 12 | 100 |
| 4" | 102 | 58 | 4 | 174 | 12 | 100 |
| 5" | 127 | 58 | 4 | 174 | 12 | 100 |
| 6" | 153 | 58 | 4 | 174 | 12 | 100 |
| 8" | 203 | 58 | 4 | 174 | 12 | 100 |
Medium Duty
| ID | WP | BP | Length | |||
| inch | mm | psi | bar | psi | bar | m/roll |
| 3/4" | 20 | 87 | 6 | 305 | 21 | 100 |
| 1" | 25 | 87 | 6 | 305 | 21 | 100 |
| 1-1/4" | 32 | 87 | 6 | 305 | 21 | 100 |
| 1-1/2" | 38 | 87 | 6 | 305 | 21 | 100 |
| 1-1/2" | 40 | 87 | 6 | 261 | 18 | 100 |
| 2" | 51 | 87 | 6 | 261 | 18 | 100 |
| 2.5" | 64 | 87 | 6 | 261 | 18 | 100 |
| 3" | 76 | 87 | 6 | 261 | 18 | 100 |
| 4" | 102 | 87 | 6 | 261 | 18 | 100 |
| 5" | 127 | 87 | 6 | 261 | 18 | 100 |
| 6" | 153 | 87 | 6 | 261 | 18 | 100 |
| 8" | 203 | 87 | 6 | 261 | 18 | 100 |
Heavy Duty
| ID | WP | BP | Length | |||
| inch | mm | psi | bar | psi | bar | m/roll |
| 3/4" | 20 | 145 | 10 | 435 | 30 | 50 |
| 1" | 25 | 145 | 10 | 435 | 30 | 50 |
| 1-1/4" | 32 | 145 | 10 | 435 | 30 | 50 |
| 1-1/2" | 38 | 145 | 10 | 435 | 30 | 50 |
| 1-1/2" | 40 | 145 | 10 | 435 | 30 | 50 |
| 1-3/4" | 45 | 145 | 10 | 435 | 30 | 50 |
| 2" | 51 | 116 | 8 | 348 | 24 | 50 |
| 2" | 51 | 145 | 10 | 435 | 30 | 50 |
| 2.5" | 64 | 145 | 10 | 435 | 30 | 50 |
| 3" | 76 | 116 | 8 | 348 | 24 | 50 |
| 3" | 76 | 145 | 10 | 435 | 30 | 50 |
| 4" | 102 | 116 | 8 | 348 | 24 | 50 |
| 4" | 102 | 145 | 10 | 435 | 30 | 50 |
| 6" | 153 | 116 | 8 | 348 | 24 | 50 |
| 8" | 203 | 87 | 6 | 261 | 18 | 50 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
What is a PVC layflat hose?
A PVC layflat hose is a type of flexible hose made of PVC material. It is designed to convey water and other fluids at low pressure. It is a “layflat” hose because it is flat when not in use. Thus you can roll it up for storage.
