Hydraulic Hose EN856 4SP
Hydraulic Hose EN856 4SP
Hydralic Hose EN856 4SP is ideal for forklift, hydraulic engine, oilfield extraction machinery, mine/road/construction machinery, especially for some high pressure machine.
Hydraulic Hose EN856 4SP Details
Inner tube: oil resistant nitrile rubber
Reinforce: 4 layers of spiral steel wire
Cover: oil and weather resistant synthetic rubber
Application: petroleum and water based hydraulic fluids
Temperature range: -40℃ (-104 ℉) to +100℃ (+212 ℉)
Size: 3/4″ to 2″
Hydraulic Hose EN856 4SP

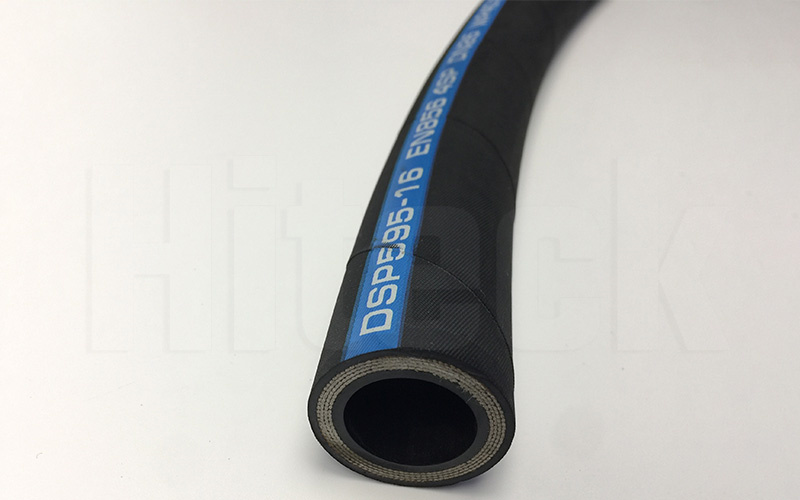

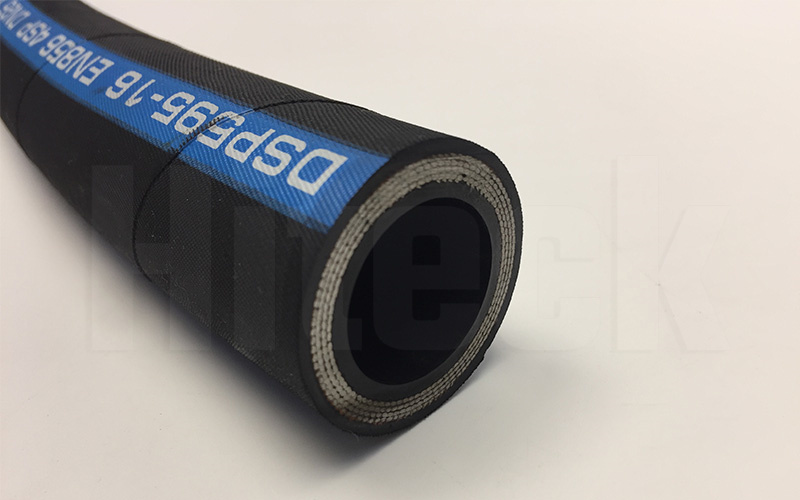

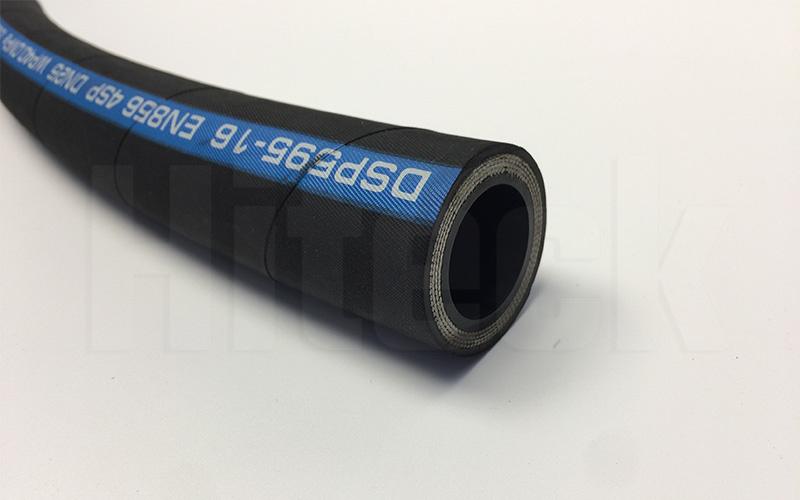

EN 856 4SP steel wire spiraled hydraulic hose is suitable for mine hydraulic support and the related equipment. The hose is resistant to flame and static. It is similar to EN 856 4SH steel wire spiraled hydraulic hose in structure, but it can bear higher working pressure than EN 856 4SH steel wire spiraled hydraulic hose under the same temperature. It is composed of three parts: tube, reinforcement and cover. The tube is made from black and oil resistant synthetic rubber, making the hose resistant to abrasion and corrosion. The reinforcement is made from four layers of high tensile and high strength spiraled steel wire which is specially designed for rubber hose, making the hose perfectly resistant to high pressure. The cover is made from high quality black synthetic rubber, making the hose resistant to abrasion, corrosion, cut, weather, ozone, oil and aging. More important, the surface is clothimpression. Therefore,the hose has longer service life.We can also supply R1/R2/4SH/1SN/2SN and other types hydraulic hoses, contact us now!
Ideal For: extremely high pressure and high impulse hydraulic applications. It is the most flexible EN856 4SP hose in the industry with superior impulse performance ( tested to 1,000,000 impulse cycles at bend radius lower than EN 856 Standard). Compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols, vegetable oils and petroleum based fluids.
Inner tube: oil resistant synthetic nitrile rubber
Reinforce: 4 layers of steel wire spiral
Cover: oil and weather resistant synthetic rubber
Application: petroleum and water based hydraulic fluids
Surface: wrapped surface
Temperature range: -40℃ (-104 ℉) to +100℃ (+212 ℉).
Hydraulic Hose EN856 4SP Specification
| ID | OD | L | WP | BP | Weight | |||
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
| 3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
| 1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
| 1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
| 1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
| 1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
| 1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
| 1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
| 1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
| 1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
| 1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
| 1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
| 5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
| 5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
| 5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
| 5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
| 5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
| 5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
| 5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
| 5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
| 3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
| 3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
| 3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
| 1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |
Hydraulic Hose EN856 4SP
Hydraulic Hose EN856 4SP
Hydraulic Hose EN856 4SP
