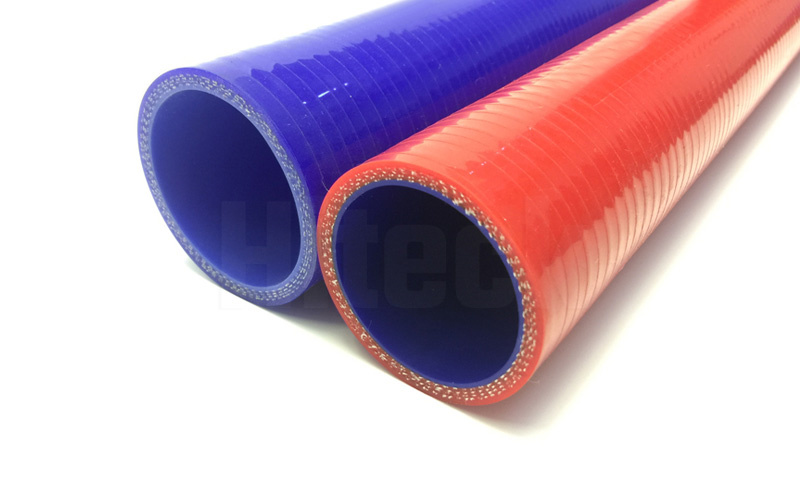

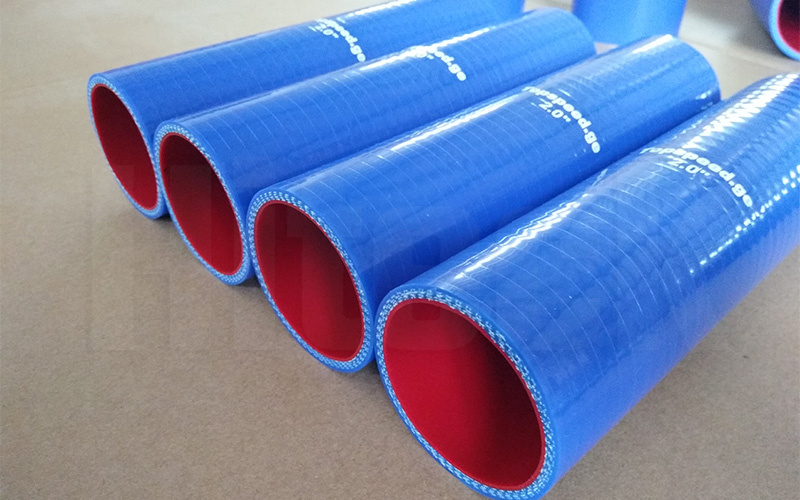

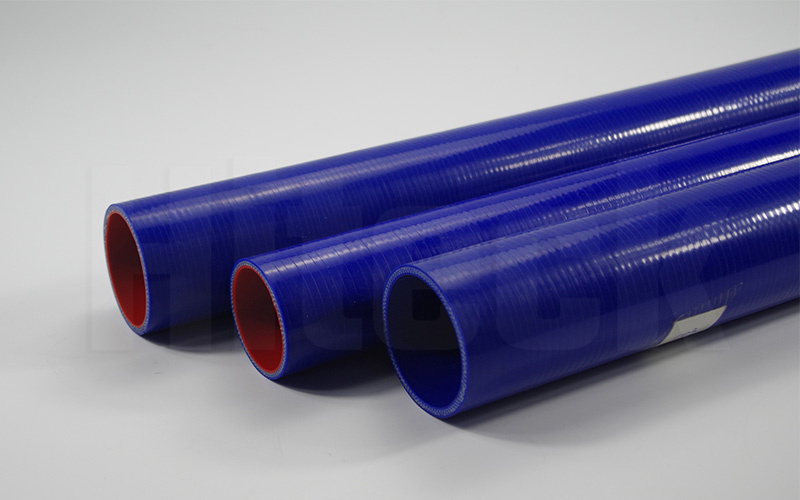

Straight Silicone Hose
Silicone Straight Hose
Twin Welding Hose is a type of flexible hose made of silicone material, which is commonly used in various industries such as automotive, aerospace, and medical. It’s famous of the high temp resistance. Besides, it can also bear chemical, ozone and aging.
Silicone Straight Hose Details
Inner: 100% High quality silicone Cover: silicone Reinforcement: 4ply Polyester/Aramid fabric with helix wire
Color: Black/Red/Blue/Green/Yellow
No taste, no toxic, eco-friendly
High temperature and aging resistant
Temperature range: -40℃ (-104 ℉) to +220℃ (+428 ℉)
Size: ID 25mm to 102mm
Silicone Straight Hose
Silicone Straight Coupler meet or exceed SAEJ20 standard, ideal for heavy duty pressure connections in hostile engine environments, extreme temperatures and various pressure ranges where high performance levels are required. great for marine and industrial use, custom turbo or intercooler piping fabrication, DIY intake or radiator cooling system.
Constructed from hand-wrapped, 4-ply, high-grade silicone, these couplers feature superior temperature resistance rated for -104 degrees F to 428 degrees F. Vibrant Performance reinforced hose couplers are strong and reliable–they won’t swell or burst under extreme conditions. Vibrant Performance offers these couplers in straight, transition, and hump styles in a variety of sizes and lengths to meet your fabrication needs.
Silicone Straight Coupler Structure:
Inner: 100% High quality silicon Cover:silicon
Reinforce ply: 4ply Reinforce:Polyester/Aramid/Glass fiber
Color: Black/Red/Blue/Green/Yellow
Silicone Straight Coupler Application:
Joining your intake pipe to the throttle body assembly, air metering assembly, intercooler, BOV pipe, or turbo inlet/outlet. Custom compressor, intercooler or inlet piping for turbo/supercharged car .Custom cold air intake for nonturbo car,Custom cold air intake for nonturbo car .These silicone parts can be used in trucks, recreational vehicles, boats, or anything else with an engine
Silicone Straight Coupler Features:
● Good electrical insulating performance
● No odor, no toxic, eco-friendly.
● High temperature and aging resistant
● Having physical laziness,Good air permeability
● We offer OEM/ODM, We can 3D design, produce according to your drawings
Silicone Straight Coupler Temperature: -40℃ (-104 ℉) to +220℃ (+428 ℉)
Silicone Straight Hose Specification
| ID | OD | L | WP | BP | Weight | |||
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
| 3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
| 1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
| 1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
| 1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
| 1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
| 1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
| 1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
| 1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
| 1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
| 1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
| 1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
| 5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
| 5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
| 5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
| 5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
| 5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
| 5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
| 5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
| 5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
| 3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
| 3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
| 3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
| 1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |
Material of Silicone Straight Hose
Production of Silicone Straight Hose
Package Style of Silicone Straight Hose
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
