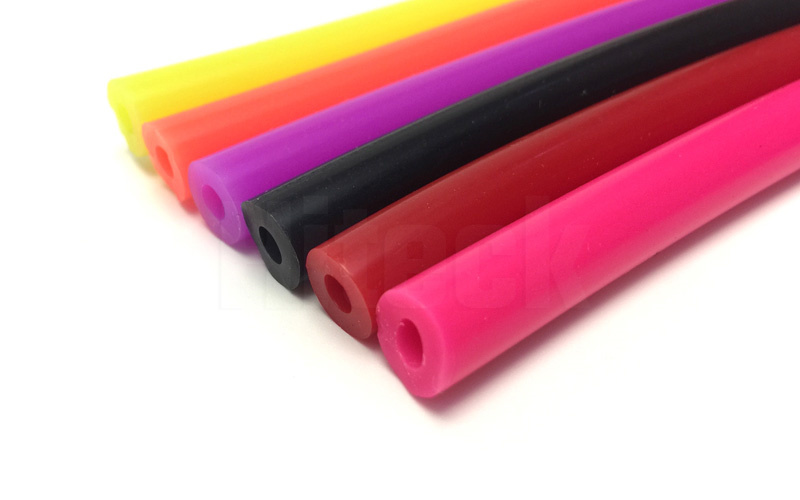

Silicone Vacuum Hose
Silicone Vacuum Hose
Silicone Vacuum Hose is ideal for turbo system and coolant system for vehicles. The high quality silicone material makes the hose flexible and resistant to high temperature. Besides, silicone vacuum hose is also ideal for food use and medical use.
Silicone Vacuum Hose Details
Wall: 100% virgin silicone
Various colors and sizes are available
No odor, no toxic, eco-friendly
High temperature and aging resistant
Temperature range: -40℃ ~ 220℃
Size: ID 10mm to 102mm
Silicone Vacuum Hose

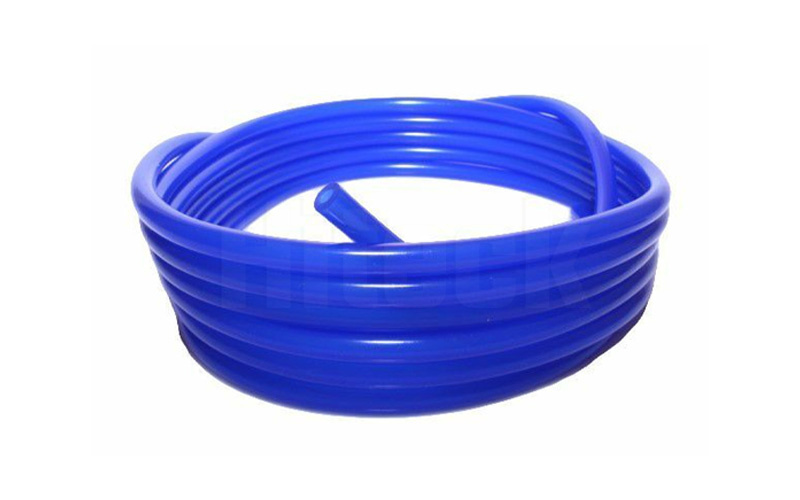

Common Grade Silicone Vacuum Hose
Common Grade Silicone Vacuum Hose is commonly use for vacuum advance systems, turbo systems, coolant systems, emission control, and temperature range applications. Made of Premium grade Silicone. Heavy wall design gives it the ability to handle extreme pressure. Ultra flexible & Excellent tensile strength.
Structure:
Material: 100% High quality silicone
Any colors are available
Features:
● Material: 100% silicone raw material
● No odor, no toxic, eco-friendly.
● High temperature resistance, aging, operative temperature: – 40℃ ~ 220℃
● For industrial use car use
● Various colors and sizes are available

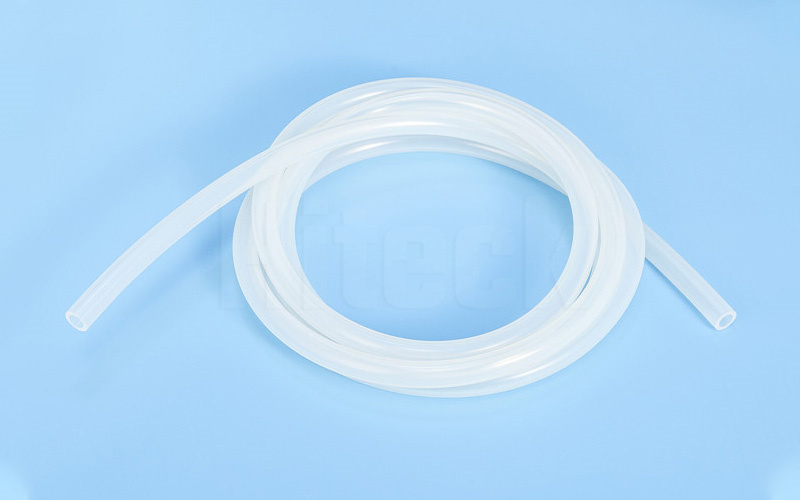

Food Grade Silicone Vacuum Hose
Food Grade Silicone Vacuum Hose is designed for a variety of pump and transfer applications including , laboratory, bioprocess manufacturing and food and beverage applications. The tubes are able to withstand a high temperature of 200C (intermittent) and are available in various internal diameters and wall thickness. Uses: Food tube products; Food Machinery connecting pipe; Liquor connecting conduit; Water dispenser, coffee maker, water heaters.
Structure:
Material: 100% FDA silicone
Any colors are available
FDA, LFGB certificated
Features:
● 100% Food grade silicone raw material
● No odor, no toxic, eco-friendly.
● High temperature resistance,aging,operative temperature: – 40 ℃ ~ 220℃
● For industrial use car use
● Various colors and sizes are available
Medical Grade Silicone Vacuum Hose
Medical Grade Silicone Vacuum Hose has long been used for medical tubing, as it meets the medical industry’s requirements for cleanliness and non-toxicity. Another of silicone’s major features — resistance to extreme temperature variations — has enabled its use in applications where a flexible tubing is needed to handle temperatures not possible with other plastics or rubbers.
Structure:
Medical grade silicone
Any colors are available
Features:
● 100% medical grade silicone raw material
● No odor, no toxic, eco-friendly.
● High temperature resistance,aging,operative temperature: – 40 ℃ ~ 220 ℃
● For industrial use car use
● Various colors and sizes are available
Silicone Vacuum Hose Specification
| ID | OD | L | WP | BP | Weight | |||
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
| 3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
| 1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
| 1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
| 1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
| 1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
| 1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
| 1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
| 1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
| 1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
| 1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
| 1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
| 5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
| 5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
| 5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
| 5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
| 5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
| 5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
| 5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
| 5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
| 3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
| 3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
| 3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
| 1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |
Material of Silicone Vacuum Hose
Production of Silicone Vacuum Hose
Package Style of Silicone Vacuum Hose
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
