Hydraulic Hose SAE 100 R4
Hydraulic Hose SAE 100 R4

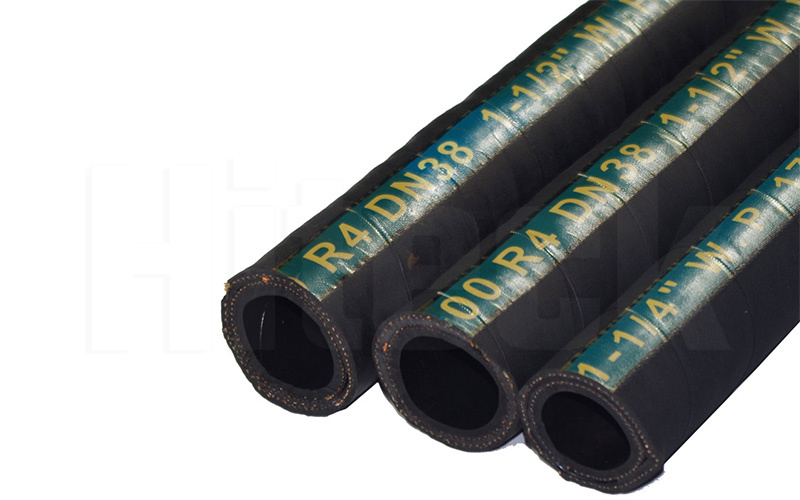

Hydraulic Hose SAE 100 R4 has 2 or 4 layers of fibre braid. It’s flexible and oil resistant. Thus it can work with the hydraulic oil very well. It’s ideal for oil based fluid and water in air brake system, power steering system and turbo oil lines.
Hydraulic Hose SAE 100 R4 Details
Inner tube : oil resistant NBR
Cover: single layer of fibre braid
Reinforcement: single layer of fibre braid
Application: petroleum based hydraulic oil, air and water for use in air brake, power steering, turbo oil lines, tilt cab cylinders, transmission coolant and filtration lines.
Temperature range: -40℃ (-104 ℉) to +100℃(+212 ℉)
Size: 3/16 “to 3”
Hydraulic Hose SAE 100 R4

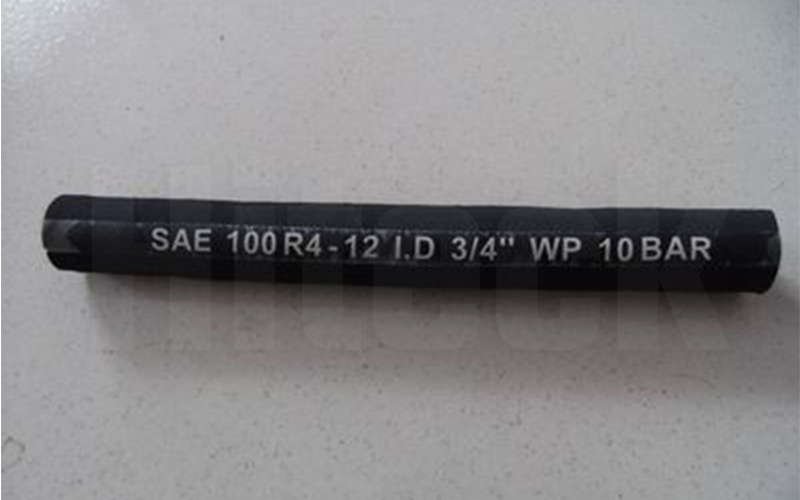

SAE 100 R4 textile reinforced hydraulic hose is mainly used for oil suction and delivery in the hydraulic systems. It is composed of three parts: tube, reinforcement and cover. The tube is made from high quality black, smooth and oil resistant synthetic rubber, making the hose widely used for oil delivery. The reinforcement is made from one layer or multiple layers of high strength braided textile with helix steel wire, making the hose have solid structure. The cover is made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone, aging and cut. The hose have longer service life as a result. Contact us now!
Hydraulic Hose SAE100 R4 Is Ideal For:
Petroleum and water based hydraulic fluids in suction lines or in low pressure return line. Exceeds the requirements of SAE 100 R4.

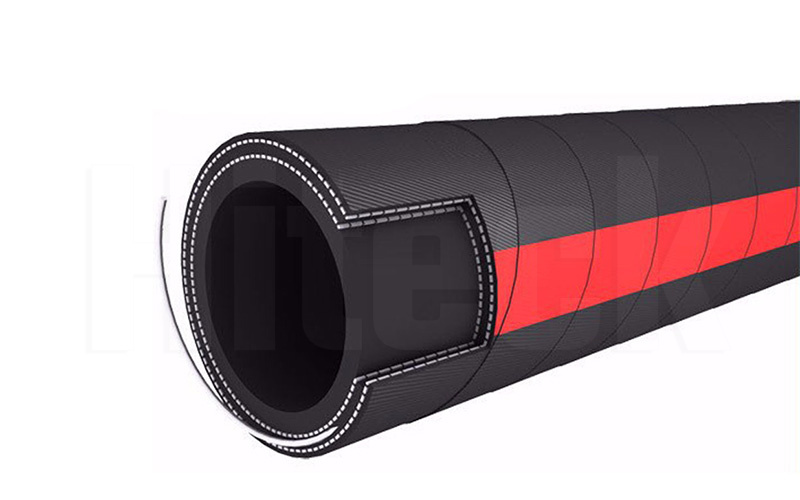

Structure:
Inner Tube: oil resistant NBR
Reinforcement: 2 layers or 4 layers of high strength synthetic textile and helix steel wire
Cover: oil and weather resistant synthetic rubber
Hydraulic Hose SAE100 R4 Application:
Suction and refill hose for hydraulic systems. Also suitable for low pressure hydraulics. The hose fulfils requirements according to SAE 100 R4.
Surface: wrapped surface
Hydraulic Hose SAE100 R4 Temperature Range: -40℃ (-104 ℉) to +100℃(+212 ℉)
Hydraulic Hose SAE 100 R4 Specification
| ID | OD | L | WP | BP | Weight | |||
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
| 3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
| 1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
| 1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
| 1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
| 1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
| 1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
| 1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
| 1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
| 1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
| 1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
| 1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
| 5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
| 5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
| 5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
| 5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
| 5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
| 5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
| 5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
| 5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
| 3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
| 3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
| 3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
| 1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |
Hydraulic Hose SAE 100 R4
Hydraulic Hose SAE 100 R4
Hydraulic Hose SAE 100 R4
