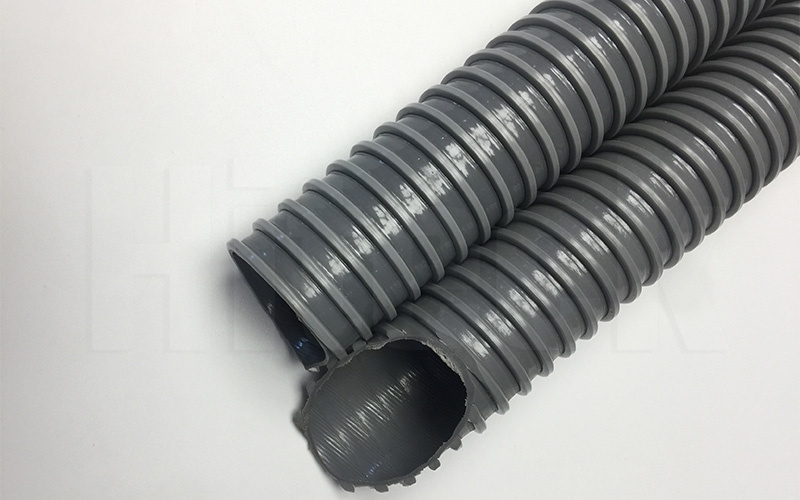

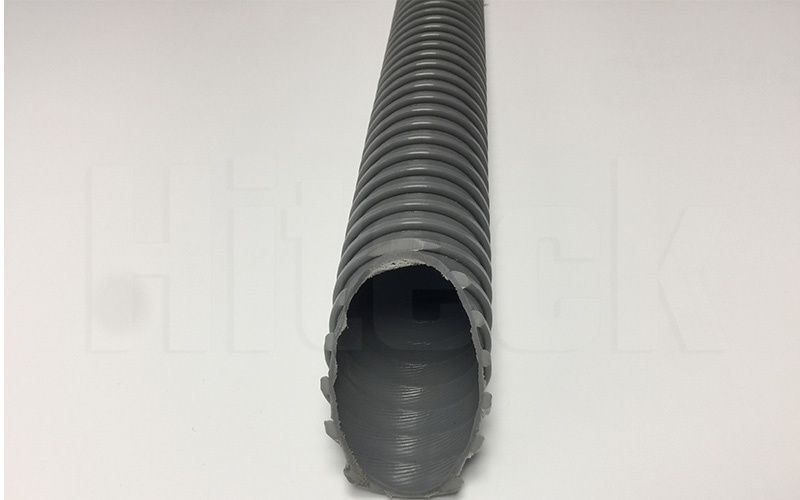

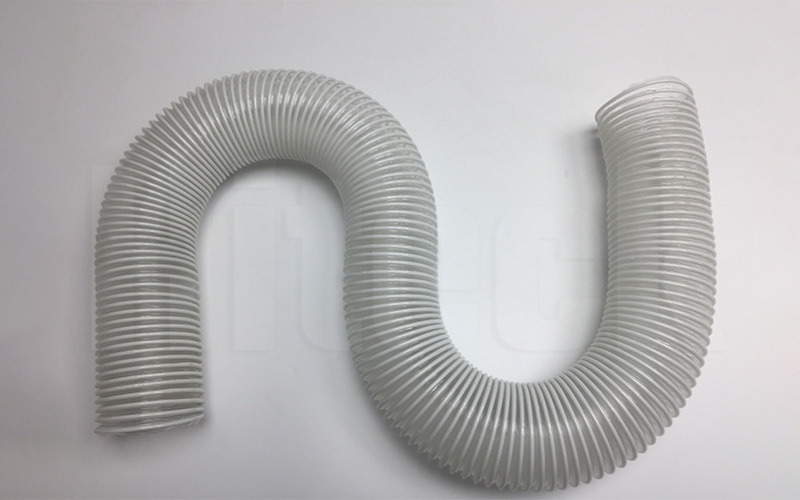

PVC Helix Duct Hose
PVC Helix Duct Hose
PVC Helix Duct Hose is made from high quality PVC with a helix outside. While the helix offers ultra abrasion resistance. Thus the hose has a long service life. It’s ideal for solid, liquid and gas such as powder, water and air.
Details
Wall: Top grade of PVC
Spiral: Rigid PVC
Features: Different types are available
Very flexible with low weight Resistant to UV
Extremely tearing-resistant with rigid reinforced PVC helix.
Temperature: -10℃ to 65℃
Size: ID 19mm to 152.4mm
PVC Helix Duct Hose
PVC Helix Duct Hose has many advantages such as excellent resistance to corrosive properties of harsh chemicals, resistance to oxidation caused by moisture, as well as excellent crush resistance. PVC Helix Duct Hose made with rigid PVC materials that are ideal for a broad range of applications as in moving ambient air, elevated temperatures, abrasives transfer abrasive powders, chips,gravel, sand, cements, shavings, and smoke, vapours and bulk material collection. PVC Helix Duct Hose to be move-able and flexible, perfect for requirements requiring ambient air circulation.
Structure:
Wall: Top grade of PVC
Spiral: Rigid PVC
Application:
As suction and transport hose suitable for below substance: Gaseous medias such as vapors and smoke Liquid media.
Abrasive solids such as dusts, powders, chips and grains.
Also ideal as ventilation hosefor air conditioning and ventilation system.
Features:
●Extremely tearing-resistant with rigid reinforced PVC helix.
●Very abrasive.
●Very smooth interior
●flexible with low weight.
●Extremely transparent.
●Could resistant to UV if requested.
●Various sizes abd available.
●Comply to RoHS.
Temperature: -10℃ to 65℃
PVC Helix Duct Hose Specification
| ID | OD | L | WP | BP | Weight | |||
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
| 3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
| 1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
| 1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
| 1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
| 1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
| 1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
| 1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
| 1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
| 1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
| 1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
| 1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
| 5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
| 5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
| 5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
| 5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
| 5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
| 5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
| 5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
| 5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
| 3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
| 3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
| 3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
| 1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
