Hydraulic Hose SAE 100 R3
Hydraulic Hose SAE 100 R3

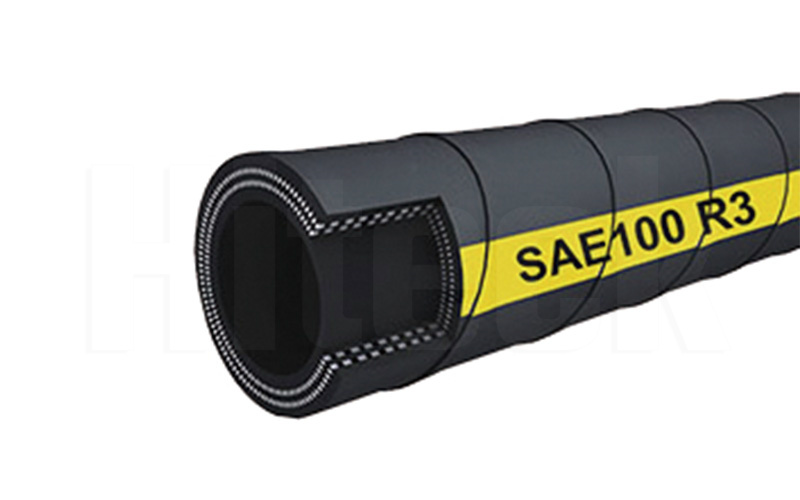

Hydraulic Hose SAE 100 R3 adopts NBR as the raw material of inner tube. Because it has the best oil resistance among the rubbers. It has a 2-layer high strength fibre braid, thus it will be more flexible. Besides, it can bear high pressure.
Hydraulic Hose SAE 100 R3 Details
Inner tube: oil resistant NBR
Cover: oil and weather resistant synthetic rubber
Reinforcement: 2 layers of high strength fiber braid
Application: Hydraulic system with perroleum or water based fluid & for fuel and lubricant
Temperature range: -40℃ (-104℉) to +100℃ (+212 ℉)
Size: 3/16 “to 5/4”
Hydraulic Hose SAE 100 R3
SAE 100 R3 textile reinforced hydraulic hose is suitable for delivering petroleum or water based hydraulic fluids. It is mainly used in low pressure conditions and it is also used in pneumatic applications. It is composed of three parts: tube, reinforcement and cover. The tube is made from high quality oil resistant synthetic rubber, and it doesn’t react with petroleum or water-based hydraulic fluids. The reinforcement is made from two layers of braided textile, making the hose lightweight and flexible. The hose is easy to operate as a result. The cover is made from high quality abrasion, corrosion, weather and oil resistant synthetic rubber, making the hose have longer service life. Contact us now!
Hydraulic Hose SAE100 R3 Is Recommended For:
Low-pressure hydraulic lines. Exceeds the requirements of SAE100 R3 AT.

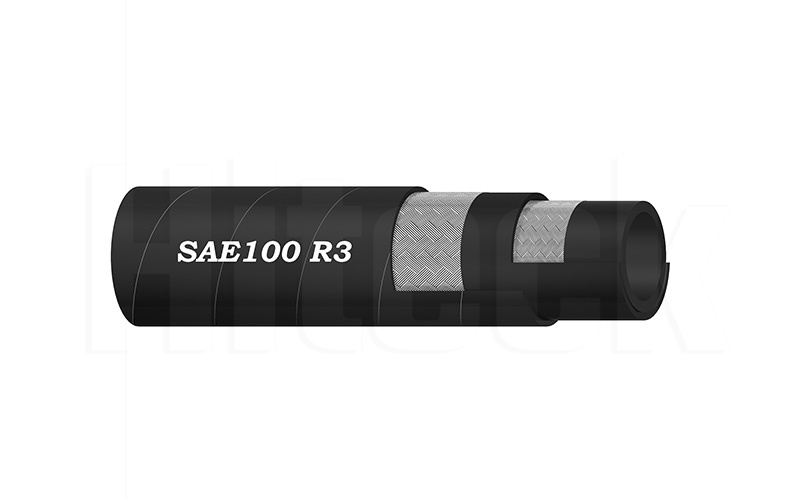

Structure:
Inner tube: oil resistant NBR
Reinforcement: 2 layers of high strength fiber braid
Cover: oil and weather resistant synthetic rubber
Hydraulic Hose SAE100 R3 Application:
Hydraulic system with perroleum or water based fluid & for fuel and lubricating oils.
Surface: wrapped surface and smooth surface are available.
Hydraulic Hose SAE100 R3 TEMPERATURE RANGE: -40℃ (-104℉) to +100℃ (+212℉)
Hydraulic Hose SAE 100 R3 Specification
| ID | OD | L | WP | BP | Weight | |||
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
| 3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
| 1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
| 1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
| 1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
| 1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
| 1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
| 1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
| 1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
| 1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
| 1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
| 1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
| 5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
| 5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
| 5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
| 5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
| 5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
| 5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
| 5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
| 5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
| 3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
| 3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
| 3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
| 1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |
Hydraulic Hose SAE 100 R3
Hydraulic Hose SAE 100 R3
Hydraulic Hose SAE 100 R3
