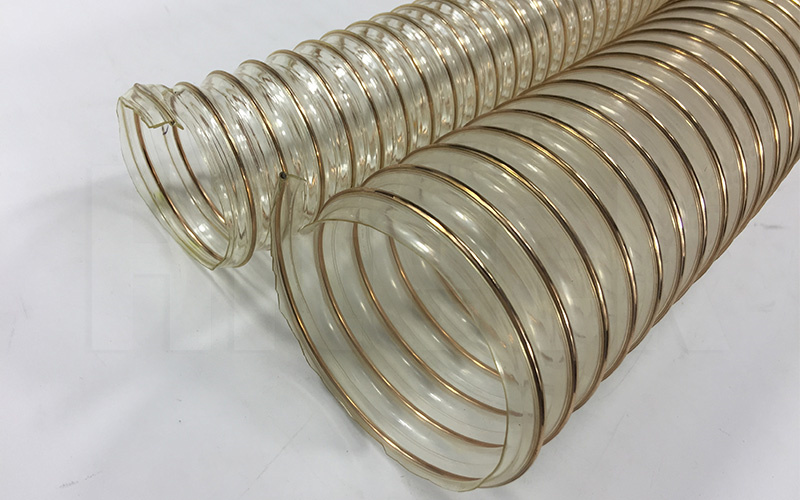

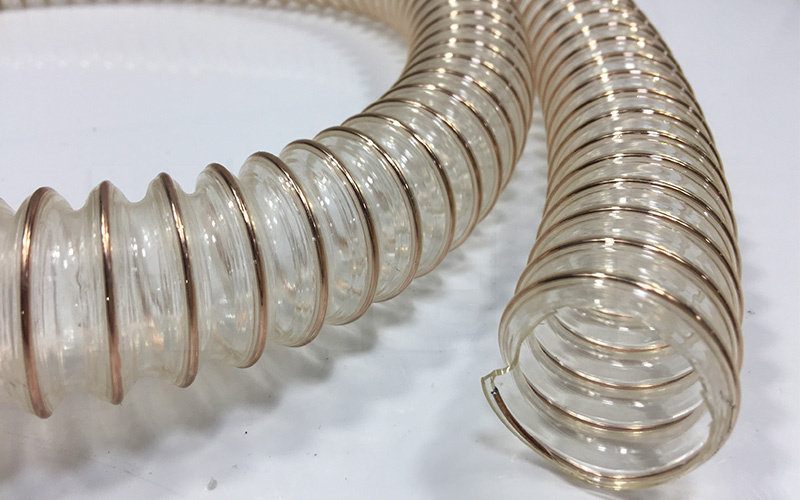

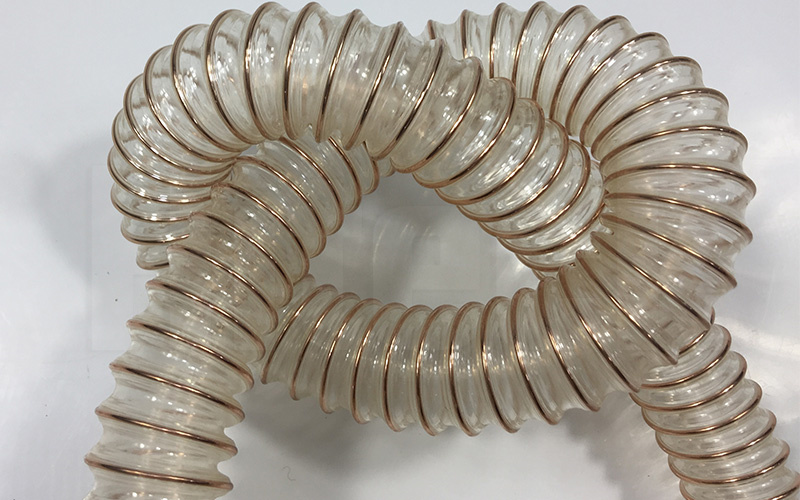

PU Duct Hose
PU Duct Hose
PU Duct Hose is a very flexible and durable hose which is to transfer abrasive materials such as sand, grain, gravel and many others. Such hose widely serves in wood work, powder suction work as well as ventilation work.
Details
Wall: Top grade of PU
Spiral: Steel wire PVC coated
Features: Different types are available
Very flexible with low weight Resistant to UV
Extremely compressible Highly transparent wall
Temperature: -40℃ (-104℉) to 90℃ (+150℉)
Size: ID 25mm to 305mm
PU Duct Hose
PU Steel Wire Duct Hose used for dust collection, light bulk material handling, and clean room applications, is a clear, medium weight, static-dissipative polyurethane hose, reinforced with a bronze-coated spring steel wire helix; it resists chemicals, moisture, abrasion, and tearing, and is very flexible and compressible for easy manipulation and installation. A temperature range of -65 to 225 degrees F makes it suitable for applications such as food preparation and paint spray extraction, and it is conductive to reduce static build-up for bulk material handling and pneumatic conveying applications. This duct hose is clear for viewing interior flow, Made from FDA acceptable materials for use in food preparation plants and pharmaceutical drug handling applications.
PU Steel Wire Duct Hose Structure:
Wall: Top grade of ester base polyurethane
Spiral: Copper plated steel wire
Application:
Ideally as suction and transport hose for abrasive solids such as dust, powders, wood chips, granulates, oil and fuel etc. Also very suitable for ventilation system and industrial vacuum cleaner
Features:
●Very nice looking with transparent wall and copper plated steel wire
●Extremely abrasion-resistant
●High tensile and burst strength and tearing resistant
●Could be static electricity conductive by grounding the steel wire
●Resistant to oil and fuel
●Extremely flexible and compressible
●Small bending radius
●Free of plasticizer
●Free of halogen
●Various colors are available
●Different wall thickness are available
● Comply to Rohs
Temperature: -40℃ (-104℉) to 90℃ (+150℉)
PU Duct Hose Specification
| ID | OD | L | WP | BP | Weight | |||
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
| 3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
| 1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
| 1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
| 1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
| 1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
| 1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
| 1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
| 1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
| 1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
| 1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
| 1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
| 5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
| 5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
| 5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
| 5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
| 5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
| 5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
| 5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
| 5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
| 3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
| 3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
| 3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
| 1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
