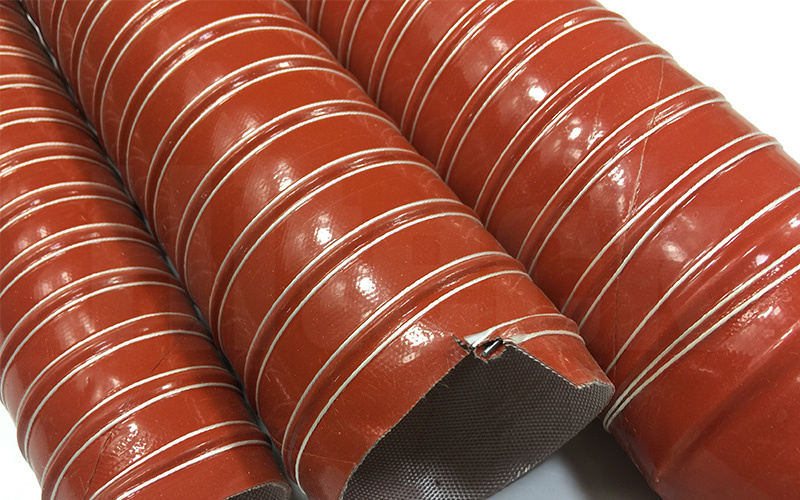

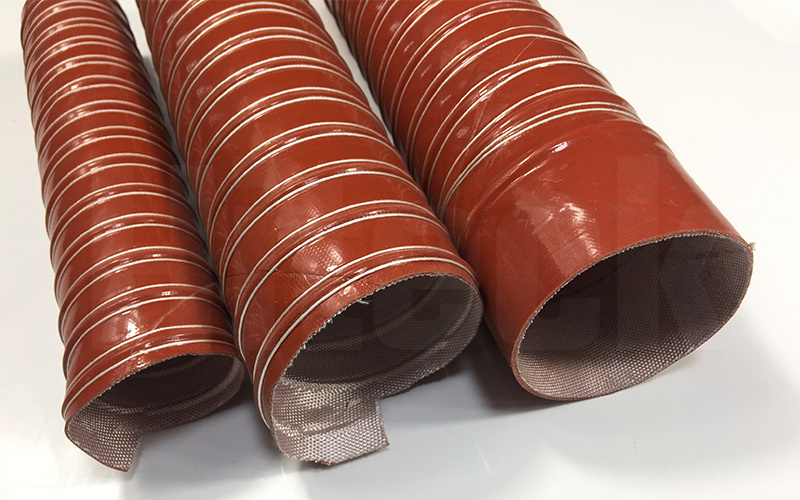

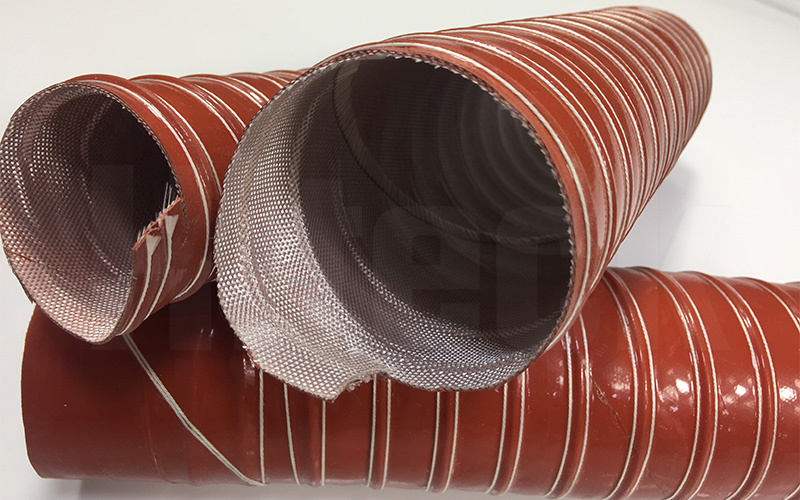

Silicone Duct Hose
Silicone Duct Hose
Silicone Duct Hose is a flexible duct which has extremely excellent heat resistance. It can bear 260℃ high pressure for long term and shortly to 280℃. Thus it’s the best choice where has a high temp work condition. For example, the steel factory.
Details
Spiral: Spring steel wire
Wall: Silicon coated glass fiber fabric
Reinforcement: Glass fiber cord
Feattures: Extremely good heat resistance
Highly flexible, small bending radius
Small bending radius, kink-proof
Temperature: -70℃ to +260℃, shortly to +280℃
Size: ID 1″to 12″
Silicone Duct Hose
Silicone Coated Fiberglass Fabric Duct Hose is a high temp duct suited for a variety of applications such as hot air and fumes. This flex silicone air ducting hose consists of double layer silicone coated fiberglass reinforced with a spring steel wire helix & external filament fiberglass cord.
Silicone Coated Fiberglass Fabric Duct Hose applications in various applications include aircraft, automotive, brake ducting, brick kilns, rocket support duct, tractor pull exhaust, transmission cooling and vehicle exhaust systems, this flexible red silicone coated duct hose pipe is ideal for high temperature air handling applications, such as for granules dryer in the plastics industry, for printing machines, blowers and compressors, for exhaust gas technology, engine warming and military construction.
Structure:
Spiral: Spring steel wire
Wall: Silicon coated glass fiber fabric
Reinforcement: Glass fiber cord
Application:
Heat resistant silicone coated glass fiber fabric hose is designed for
●transmission hot and cold air
●printing machines, blowers and compressors
●exhausting gas, engine construction, engine Warming, aircraft construction and military construction
Features:
●Double-layer of silicone coated glass fiber fabric
●Extremely good heat resistance
●Leak-proof
●Smooth interior
●Highly flexible
●Small bending radius
●Kink-proof
Working temperature:
-70℃ to +260℃ Short time to +280℃
Inner Diameter: 1″-12″
Length: 4m/roll
Silicone Duct Hose Specification
| ID | OD | L | WP | BP | Weight | |||
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
| 3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
| 1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
| 1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
| 1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
| 1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
| 1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
| 1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
| 1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
| 1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
| 1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
| 1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
| 5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
| 5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
| 5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
| 5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
| 5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
| 5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
| 5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
| 5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
| 3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
| 3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
| 3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
| 1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |
