Nylon Duct
Nylon Duct

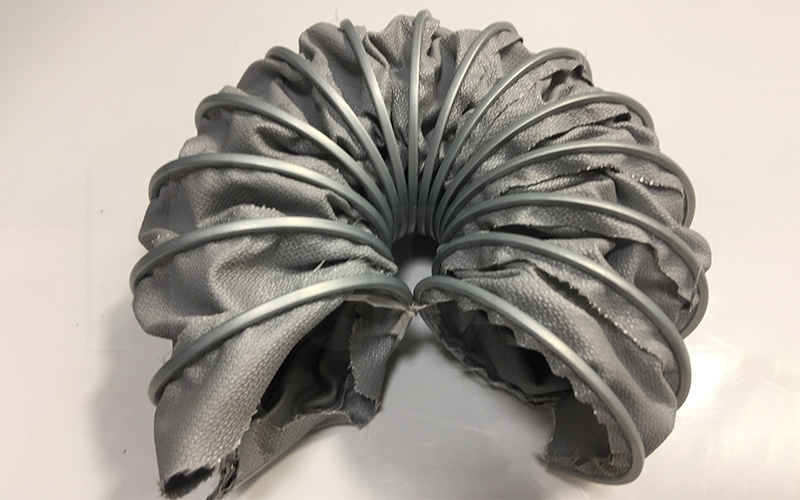

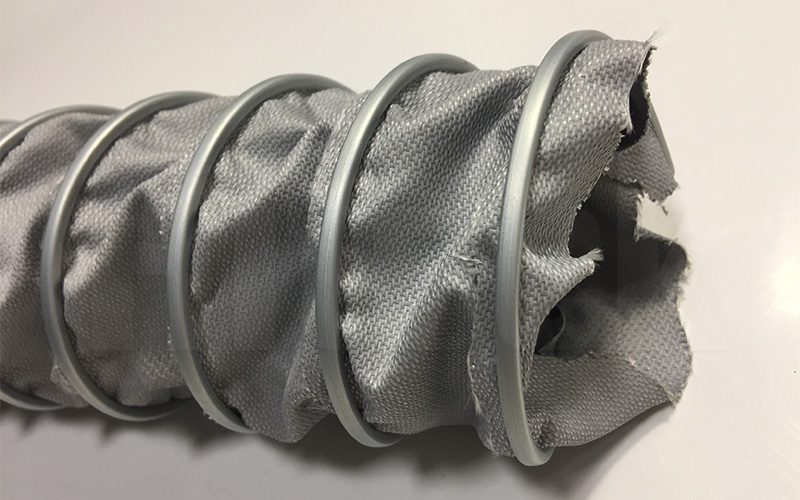

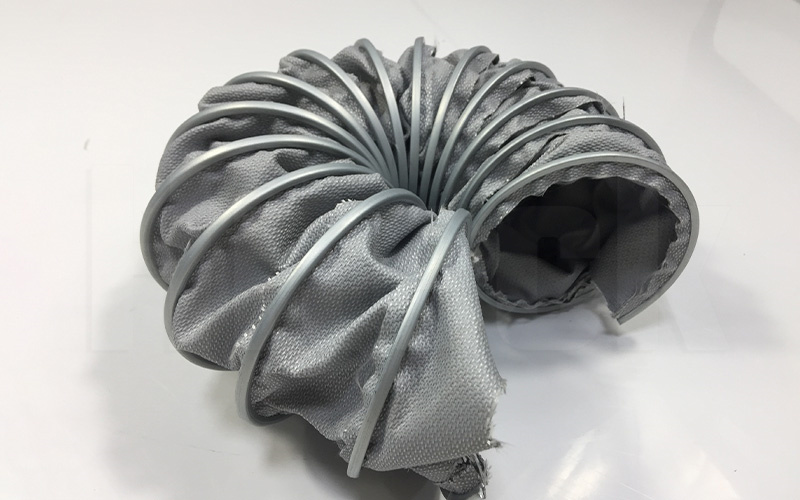

Nylon Duct is a flexible hose with small bend radius. It’s made from high quality fibreglass cloth with a grey and high temperature resistant coating. Besides, there is a stainless electrolytic steel clip outside. It can bear much higher temp which is max 400℃.
Details
Wall: coated glass fiber fabric
Clamped profile: Zinc plated steel slice
Good resistance to high temperature up to 400℃
Highly flexible and compressible
External galvanized steel helix protects against crushing
Temperature: -60℃ to +400℃
Size: ID 2″to 24″
Nylon Duct
Flame Retardant Glass-Fiber Ducting Hose is made of double-ply silicone coated fiberglass fabric hose mechanically crimped in a continuous process. This makes this flexible ducting hose extremely good wear resistance, it will not damage the high temp duct when it is dragged on the ground. Ecoosi clamped profile hose high temp duct is flame retardant, insulated, high temperature resistant and vibration resistant, strong toughness and chemical resistance.
Flame Retardant Glass-Fiber Ducting Hose high temperature ducting is a high temp duct could handle working temperatue resistant to 400°C, a short time can handle about +450 °C. This flexible ducting hose is ideal used for hot and cold gases and for dust, powder, fibers, high temperature extraction: oven, foundry, furnace, smelting, ceramics industry, glass industry, steel plant, aluminium mill.
Structure:
Wall: Silicon coated glass fiber fabric
Clamped profile: Zinc plated steel slice
Application:
Clamped high temperature resistant flame retardant duct hose, especially suitable:
● For suction of high temperature air in engine exhaust in industry
● For high temperature gaseous media like vapors and smoke
● In dryer, automotive, aerospace, shipbuilding, military
● As bellows and compensator
Features:
● Very good resistance to high temperature up to 400℃
● Highly flexible and compressible
● External galvanized steel helix protects against crushing
● Firm clamping structure
● Good performance on working pressure
● Good resistance to chemical substance
● Small bending radius
● Flame-retardant
● Kink-proof
● Light weight
Working temperature: -60℃ to +400℃
Inner Diameter: 2″-24″
Length: 10m/roll
Nylon Duct Specification
ID | OD | L | WP | BP | Weight | |||
inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
