Silicone Heater Hose
Silicone Heater Hose
Silicone Heater Hose is specially designed to deliver the heat from the engine to the car. It can bear extreme temperatures between -40℃-220℃. It exceeds the SAE J20 R3 standard and performs very well in various vehicles.
Silicone Heater Hose Details
Inner: 100% High quality silicone
Reinforcement: Polyester/Aramid Braid
Cover: silicone
Color: Black/Red/Blue/Green/Yellow
No taste, no toxic, eco-friendly
High temperature and aging resistant
Temperature range: -40℃ (-104℉) to +220℃ (+428℉)
Size: ID 8mm to 32mm
Silicone Heater Hose
Silicone Heater Hose meet or exceed the requirements of the SAE J20 R3 Class A specification. The silicone hoses are reinforced with 1-ply polyester fabric. Designed to withstand elevated temperatures, these hoses are polyester-reinforced. Silicone Heater Hose has a working temperature range of -54 degrees C to +200 degrees C, making them well-suited for coolant fluid service, and vacuum line service service.
Silicone Heater Hose Commonly used in the following applications: Air intake connection, supercharger connection, turbo and intercooler drain lines, radiator or heater core connection or virtually any application where high temperature or extreme working conditions exist. Used in performance motors and vehicles, marine wet – exhaust, commercial truck and bus induction and cooling systems, agricultural and off highway vehicles, all turbo diesel applications, food and beverage connections and general manufacturing industries worldwide.

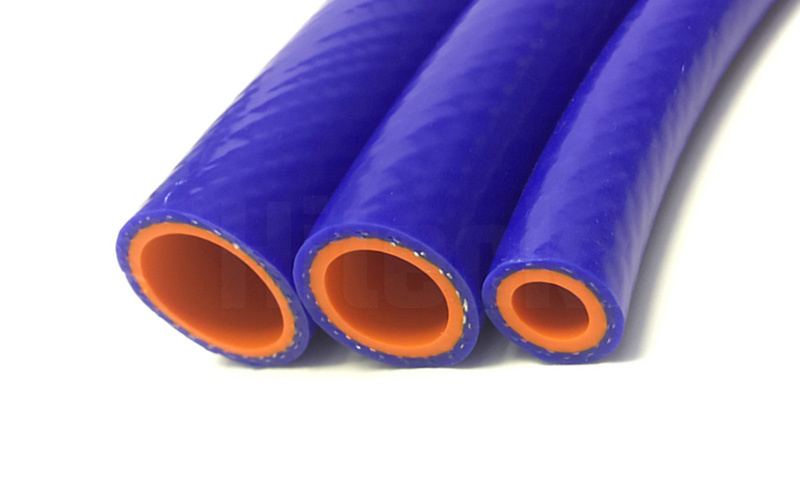

Silicone Heater Hose Structure:
Inner: 100% High quality silicone
Cover: silicone
Reinforcement: Polyester/Aramid Braid
Color: Black/Red/Blue/Green/Yellow
Silicone Heater Hose Application:
Mainly used in mine hydraulic support, oil exploration, suitable to engineer construction, crane transport, forging metallurgy, mining equipment, ships, injection molding machinery agricultural machinery various machine tools.
Silicone Heater Hose Features:
● 100% Virgin silicone materials
● Provides high pressure resistance and superior impulse resistance.
● Provides superior oil resistance, heat resistance and aging resistance by using special synthetic rubber
● Provides superior bonding in hose internal, soft use and small deformation under pressure
● Provides superior kink resistance and fatigue resistance and longer services life
● Working Pressure: 0.3-1.2MPA
Silicone Heater Hose Temperature: -40℃ ( -104 ℉ ) to +220℃ (+428 ℉ )
Silicone Heater Hose Specification
ID | OD | L | WP | BP | Weight | |||
inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |


Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
