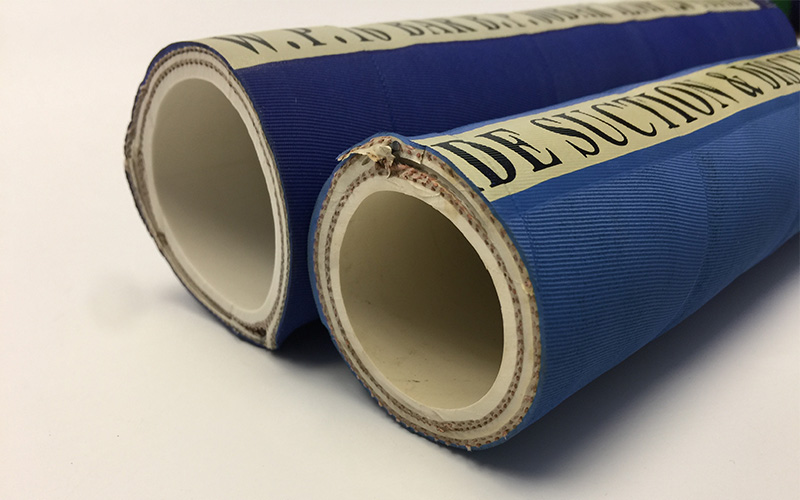

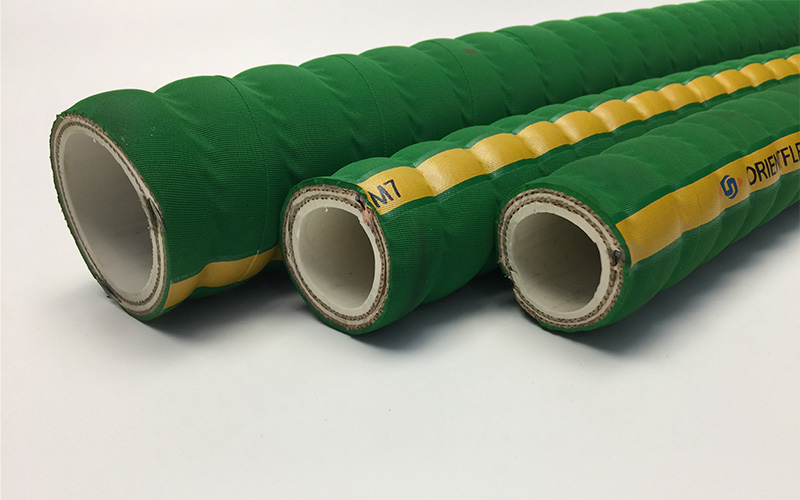

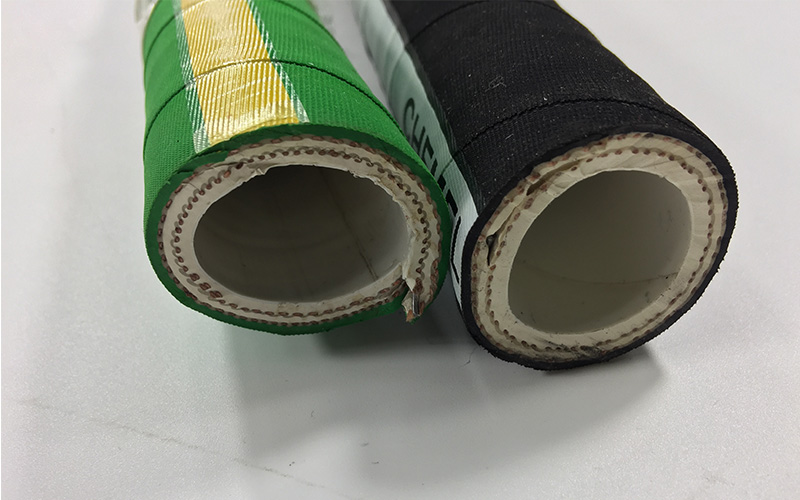

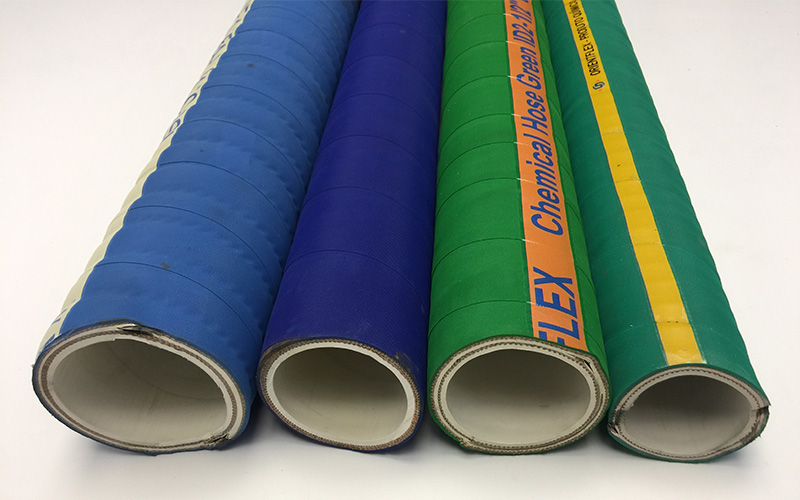

Chemical Suction Hose
Chemical Suction Hose
Chemical Suction Hose is made from EPDM which has excellent temperature, abrasion and aging resistance. In order to improve the corrosion and chemical resistance, there is an ultra high molecular weight polyethylene lining inside the hose. Thus it can transfer chemicals for long term.
Chemical Suction Hose Details
Tube: White,Smooth Ultra High Molecular Weight Polyethylene (UHMWPE), EPDM
Reinforcement:Multi plies high strength synthetic fabric and helix wire.
Cover: EPDM resistant to chemical, weather and ozone, blue, green wrapped
Designed for in-plant or tank truck use to transfer chemicals and solvents.
Flexible Chemical Hose is a high pressure, high temperature suction and discharge hose designed to handle many commonly used acids, chemicals and solvents. Chemical hose pipe incorporates a Smooth Ultra High Molecular Weight Polyethylene (UHMWPE), EPDM that features a temperature rating to 120°C, meets FDA, USDA and 3-A requirements, and will not leach into and contaminate the product being conveyed. The dual wire helix provides full suction capability, kink resistance and a path to conduct a static electrical charge to ground, and is suitable for use with internally expanded couplings. The cover is resistant to abrasion, mild chemicals and ozone.
Chemical Suction Hose Application:
Such chemical resistant hose is designed for in-plant or tank truck use, suction and discharge of chemicals and solvents.
Transfer of acids, chemicals, solvents, and petroleum products.
Loading and unloading, pumping, suction, or gravity flow discharge.
Suction and discharge of chemicals, and solvents.
In-plant transfer of chemicals, alcohols, acids and petroleum.
Spray pesticides, fertilizers and paint.
Temperature: -40℃ to + 120℃ (-72℉ to +248℉)
Chemical Hose Features:
Handle 98% of the chemical/acid
Heat,weather,abrasion resistant EPDM cover
Corrugated cover make hose more flexible
Heavy duty construction for 250 PSI working pressure
Chemical Suction Hose 150psi
| ID | OD | WP | BP | L | |||
| inch | mm | mm | bar | psi | bar | psi | m |
| 3/4" | 19.1 | 31.6 | 10 | 150 | 30 | 450 | 40 |
| 1" | 25.4 | 37 | 10 | 150 | 30 | 450 | 40 |
| 1-1/4" | 31.8 | 45 | 10 | 150 | 30 | 450 | 40 |
| 1-1/2" | 38.1 | 51 | 10 | 150 | 30 | 450 | 40 |
| 2" | 50.8 | 64 | 10 | 150 | 30 | 450 | 40 |
| 2-1/2" | 63.5 | 79 | 10 | 150 | 30 | 450 | 40 |
| 3" | 76.2 | 91 | 10 | 150 | 30 | 450 | 40 |
| 4" | 101.6 | 119 | 10 | 150 | 30 | 450 | 40 |
| 6" | 152 | 171 | 10 | 150 | 30 | 450 | 20 |
Chemical Suction Hose 250psi
| ID | OD | WP | BP | L | |||
| inch | mm | mm | bar | psi | bar | psi | m |
| 3/4" | 19.1 | 31 | 16 | 250 | 48 | 720 | 40 |
| 1" | 25.4 | 38 | 16 | 250 | 48 | 720 | 40 |
| 1-1/4" | 31.8 | 45 | 16 | 250 | 48 | 720 | 40 |
| 1-1/2" | 38.1 | 52 | 16 | 250 | 48 | 720 | 40 |
| 2" | 50.8 | 65 | 16 | 250 | 48 | 720 | 40 |
| 2-1/2" | 63.5 | 79 | 16 | 250 | 48 | 720 | 40 |
| 3" | 76.2 | 93 | 16 | 250 | 48 | 720 | 40 |
| 4" | 101.6 | 122 | 16 | 250 | 48 | 720 | 40 |
| 6" | 152 | 175 | 16 | 250 | 48 | 720 | 20 |
Chemical Suction Hose 300psi
| ID | OD | WP | BP | L | |||
| inch | mm | mm | bar | psi | bar | psi | m |
| 3/4" | 19.1 | 31 | 20 | 300 | 60 | 900 | 40 |
| 1" | 25.4 | 38 | 20 | 300 | 60 | 900 | 40 |
| 1-1/4" | 31.8 | 47 | 20 | 300 | 60 | 900 | 40 |
| 1-1/2" | 38.1 | 54 | 20 | 300 | 60 | 900 | 40 |
| 2" | 50.8 | 67.8 | 20 | 300 | 60 | 900 | 40 |
| 2-1/2" | 63.5 | 84 | 20 | 300 | 60 | 900 | 40 |
| 3" | 76.2 | 96 | 20 | 300 | 60 | 900 | 40 |
| 4" | 101.6 | 123 | 20 | 300 | 60 | 900 | 40 |
| 6" | 152 | 175 | 20 | 300 | 60 | 900 | 20 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
What is a chemical hose?
A chemical hose is a type of hose that is designed to transport chemicals, acids, and other corrosive liquids safely from one location to another.
What types of chemicals can chemical hose be used for?
Chemical hose can be used for a wide range of chemicals, including acids, alkalis, solvents, and petrochemicals.
How should chemical hose be cleaned?
Chemical hose should be cleaned using a mild detergent and warm water. It should be rinsed thoroughly and hung up to dry before being stored. Do not use harsh chemicals or abrasives to clean chemical hose, as this can damage the material.
