Corrugated Silicone Hose
Corrugated Silicone Hose

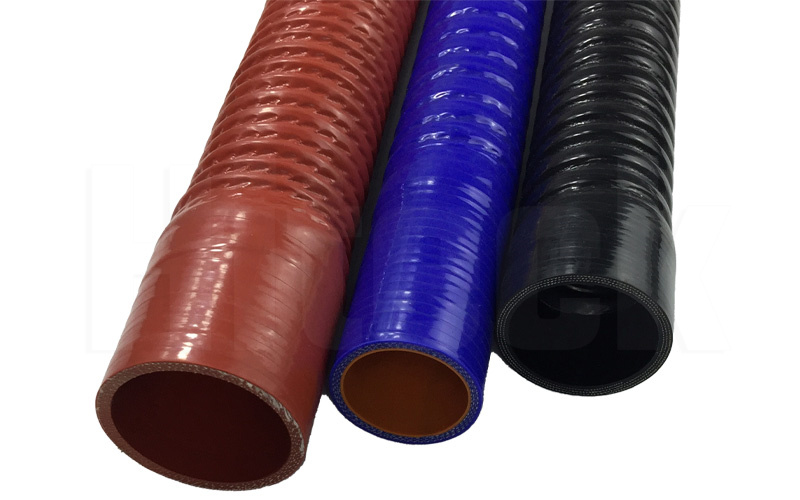

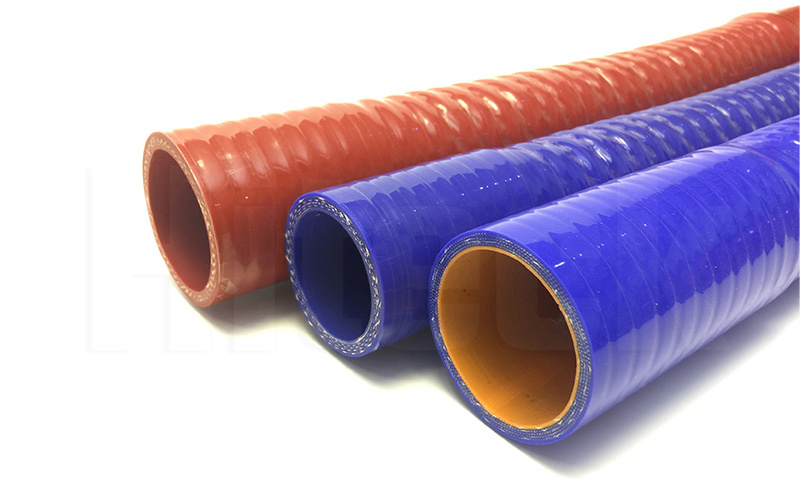

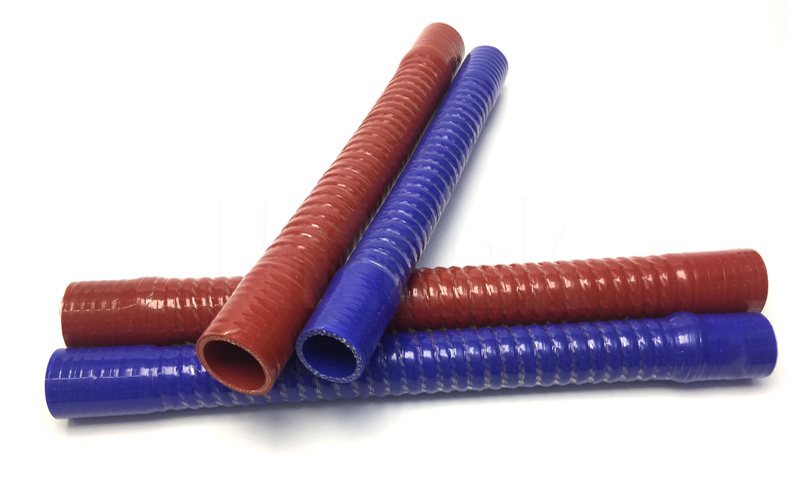

Corrugated Silicone Hose is a flexible tubing made of silicone rubber that features a corrugated or ribbed design on its surface. Besides, it has a steel wire reinforce inside. While that provides great pressure resistance and strength.
Corrugated Silicone Hose Details
Inner: 100% High quality silicone Cover: silicone Reinforcement: 4ply Polyester/Aramid fabric with helix wire
Color: Black/Red/Blue/Green/Yellow
No taste, no toxic, eco-friendly
High temperature and aging resistant
Temperature range :-40℃ (-104 ℉) to +220℃ (+428 ℉)
Size: ID 16mm to 80mm
Corrugated Silicone Hose
The silicone corrugated hose meets or exceeds the requirements of SAE J20 specification. The hoses are flexible and have high retractility. The corrugated allows the hose to bend for easy installation. We offers high quality silicone rubber hoses for exceptional performance.
The wire-reinforced corrugated hose will not collapse under suction or in a bend. The material of wire is spring steel and diameter is from 1.2mm to 2.2mm. Silicone corrugated hoses resistant to exhaust fumes, ozone, mild chemicals, antifreeze, and salt water.
The silicone corrugated hose is ideal for applications, such as air cleaner hose, main engine exhaust, generator exhaust, engine cooling circulation, engine intakes, and generator intakes.
Silicone Corrugated Hose Structure:
Inner: 100% High quality silicone
Cover: silicone
Reinforcement: 4ply Polyester/Aramid fabric with helix wire
Color: Black/Red/Blue/Green/Yellow
Silicone Corrugated Hose Application:
Mainly used in mine hydraulic support, oil exploration, suitable to engineer construction, crane transport, forging metallurgy, mining equipment, ships, injection molding machinery agricultural machinery various machine tools.
Silicone Corrugated Hose Features:
● 100% Virgin silicone materials
● Provides high pressure resistance and superior impulse resistance.
● Provides superior oil resistance, heat resistance and aging resistance by using special synthetic rubber
● Provides superior bonding in hose internal, soft use and small deformation under pressure
● Provides superior kink resistance and fatigue resistance and longer services life
● Working Pressure:0.3-1.2MPA
Silicone Corrugated Hose Temperature: -40℃ (-104 ℉) to +220℃ (+428 ℉)
Corrugated Silicone Hose Specification
| ID | OD | L | WP | BP | Weight | |||
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
| 3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
| 1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
| 1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
| 1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
| 1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
| 1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
| 1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
| 1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
| 1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
| 1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
| 1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
| 5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
| 5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
| 5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
| 5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
| 5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
| 5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
| 5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
| 5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
| 3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
| 3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
| 3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
| 1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |
Material of Corrugated Silicone Hose
Production of Corrugated Silicone Hose
Package Style of Corrugated Silicone Hose
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
