Corrugated Suction Hose
Corrugated Suction Hose

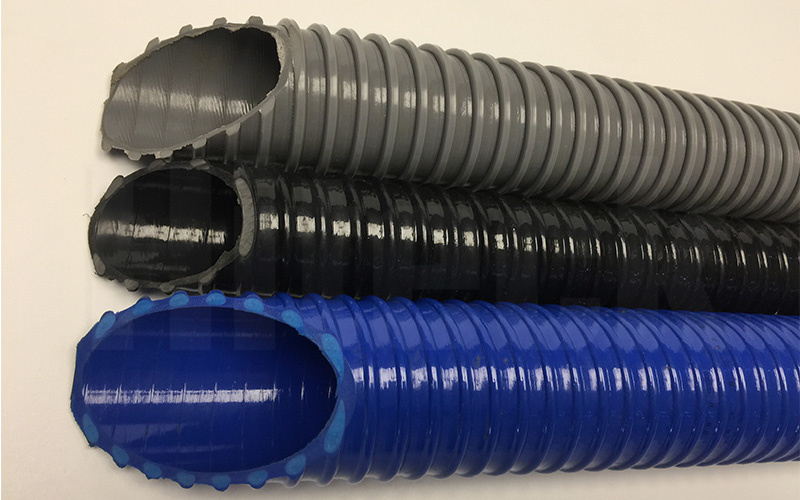

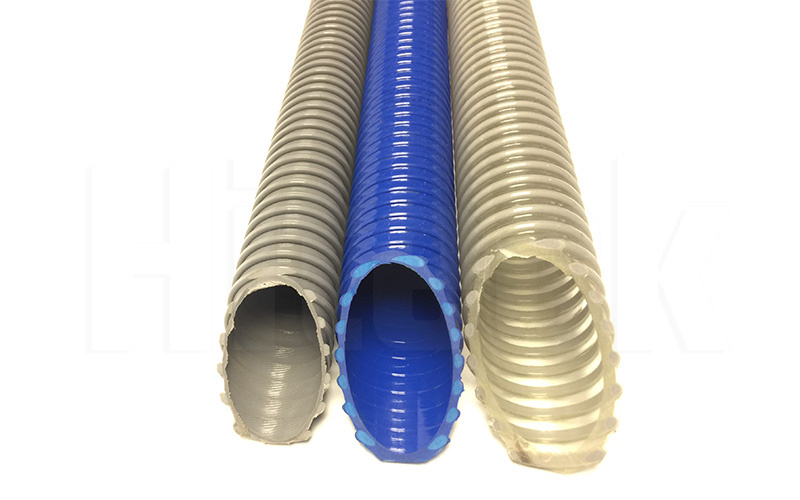

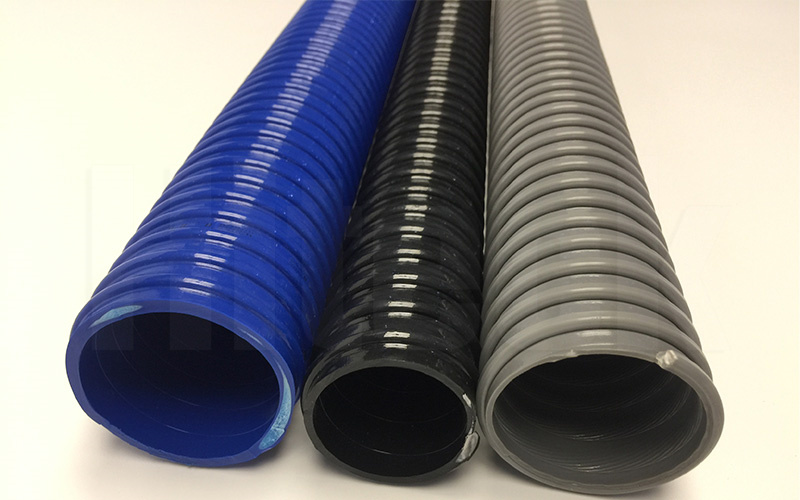

Corrugated Suction Hose is designed for general water applications such as water supply, water suction, water discharge and drainage work. Besides, it can transfer solid materials such as powder and particle. It has a rigid helix which offers extra wear resistance. Thus it is more durable.
PVC Spiral Suction Hose Details
Tube and Cover: transparent PVC
Reinforcement: High quality pvc with rigid pvc helix
Temperature: -10℃ (-50℉) to 65℃ (+150℉)
Advantage: Anti aging, long working life, non toxic, odorless, light in weight and flexible
Size: 3/4″ to 12″
Corrugated Suction Hose
PVC Corrugated Suction Hose is commonly seen on pumps in many industries (not for food transfer). It is a non-mark, light in weight, mild wear and chemical resistant hose. Besides, it’s easy to handle and and transfer. While it’s ideal for lighter duty use. The clear aspect of Pvc Suction Hose makes you can watch the mediums flow clearly. While its smooth wall allows for max flow.

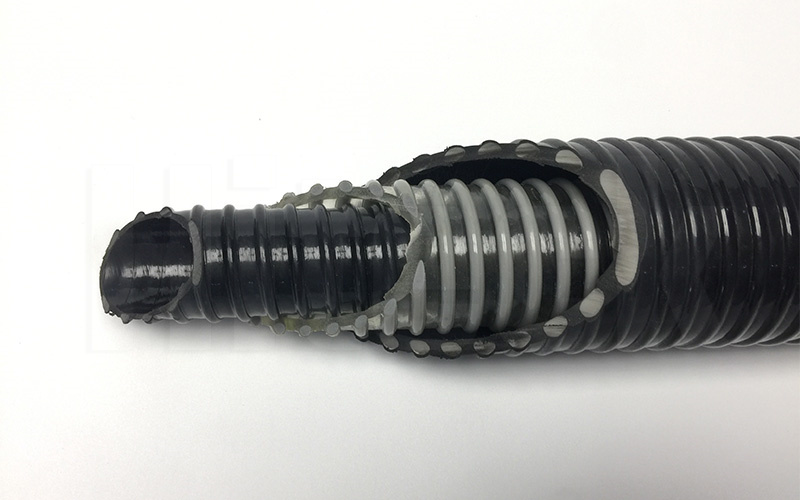

PVC Corrugated Suction Hose Structure:
High quality pvc with rigid pvc helix
Application:
PVC corrugated suction hose is designed for regular water supply and drainage. Besides, it can transfer various powdery particles and liquids. While it widely serves in civil and building, agriculture, mining, ship building and fishery.
Corrugated Suction Hose Features:
1. Abrasion, chemical and crush resistant
2. small bending radius
3. Smooth inner wall for max flow of materials
4. Economical, flexible and light in weight for easy transport
Temperature: -10℃ (-50℉) to 65℃ (+150℉)
Light Duty
| I.D | O.D | Thickness | W.P(at20˚C) | Vacuum Rat | Bend Radius | Length | ||
| inch | mm | mm | mm | bar | psi | mmHg (68˚F) | mm | m |
| 3/4 | 19.0±0.5 | 24.0±1.0 | 2.5 | 4.0 | 55 | 740 | 40 | 50 |
| 1 | 25.4±0.5 | 30.4±1.0 | 2.5 | 4.0 | 55 | 740 | 45 | 50 |
| 1 1/4 | 31.7±0.5 | 37.7±1.0 | 3.0 | 4.0 | 55 | 740 | 50 | 50 |
| 1 1/2 | 38.0±0.5 | 44.0±1.0 | 3.0 | 3.5 | 50 | 740 | 55 | 50 |
| 2 | 50.8±1.0 | 58.8±1.5 | 4.0 | 3.5 | 50 | 740 | 110 | 50 |
| 2 1/2 | 63.5±1.0 | 71.5±1.5 | 4.0 | 2.5 | 35 | 740 | 180 | 50 |
| 3 | 76.2±1.0 | 85.2±1.5 | 4.5 | 2.5 | 35 | 740 | 220 | 50 |
| 4 | 101.6±1.5 | 114.6±2.0 | 6.5 | 2.5 | 35 | 740 | 240 | 50 |
| 5 | 127.0±1.5 | 139.0±2.0 | 6.0 | 2.5 | 35 | 740 | 400 | 50 |
| 6 | 152.4±1.5 | 164.4±2.0 | 6.0 | 2.0 | 30 | 740 | 450 | 30 |
Standard Duty
| I.D | O.D | Thickness | W.P(at20˚C) | Vacuum Rat | Bend Radius | Length | ||
| inch | mm | mm | mm | bar | psi | mmHg (68˚F) | mm | m |
| 3/4 | 19.0±0.5 | 25.0±1.0 | 3.0 | 5.0 | 55 | 740 | 40 | 50 |
| 1 | 25.4±0.5 | 31.4±1.0 | 3.0 | 5.0 | 55 | 740 | 45 | 50 |
| 1 1/4 | 31.7±0.5 | 38.7±1.0 | 3.5 | 5.0 | 55 | 740 | 50 | 50 |
| 1 1/2 | 38.0±0.5 | 45.0±1.0 | 3.5 | 4.0 | 50 | 740 | 55 | 50 |
| 2 | 50.8±1.0 | 59.8±1.5 | 4.5 | 4.0 | 50 | 740 | 110 | 50 |
| 2 1/2 | 63.5±1.0 | 72.5±1.5 | 4.5 | 3.0 | 35 | 740 | 180 | 50 |
| 3 | 76.2±1.0 | 87.2±1.5 | 5.5 | 3.0 | 35 | 740 | 220 | 50 |
| 4 | 101.6±1.5 | 115.6±2.0 | 7.0 | 3.0 | 35 | 740 | 240 | 50 |
| 5 | 127.0±1.5 | 141.0±2.0 | 7.0 | 3.0 | 35 | 740 | 400 | 50 |
| 6 | 152.4±1.5 | 168.4±2.0 | 8.0 | 2.5 | 30 | 740 | 450 | 30 |
| 8 | 203.2±1.5 | 220.2±2.0 | 8.5 | 1.5 | 20 | 740 | 700 | 11.8 |
| 10 | 254.0±2.0 | 274.0±2.5 | 10.0 | 1.0 | 15 | 740 | 950 | 11.8 |
Heavy Duty
| I.D | O.D | Thickness | W.P(at20˚C) | Vacuum Rat | Bend Radius | Length | ||
| inch | mm | mm | mm | bar | psi | mmHg(68°F) | mm | m/roll |
| 3/4 | 19.0±0.5 | 26.0±1.0 | 3.5 | 7.5 | 108 | 740 | 60 | 50 |
| 1 | 25.4±0.5 | 32.4±1.0 | 3.5 | 7.0 | 102 | 740 | 70 | 50 |
| 1 1/4" | 31.7±0.5 | 40.7±1.0 | 4.5 | 7.0 | 102 | 740 | 90 | 50 |
| 1 1/2" | 38.0±0.5 | 46.0±1.0 | 4.0 | 6.0 | 87 | 740 | 120 | 50 |
| 2 | 50.8±1.0 | 60.8±1.5 | 5.0 | 6.0 | 87 | 740 | 150 | 50 |
| 2 1/2" | 63.5±1.0 | 73.5±1.5 | 5.0 | 5.5 | 80 | 740 | 200 | 50 |
| 3 | 76.2±1.0 | 88.2±1.5 | 6.0 | 5.0 | 72 | 740 | 230 | 50 |
| 4 | 101.6±1.5 | 116.6±2.0 | 7.5 | 4.5 | 65 | 740 | 350 | 50 |
| 5 | 127.0±1.5 | 142.0±2.0 | 7.5 | 4.5 | 65 | 740 | 500 | 50 |
| 6 | 152.4±1.5 | 170.4±2.0 | 9.0 | 4.0 | 58 | 740 | 700 | 30 |
| 8 | 203.2±2.0 | 223.2±2.0 | 10.0 | 2.0 | 30 | 740 | 1200 | 11.8 |
| 10 | 254.0±2.0 | 275.0±2.0 | 10.5 | 1.5 | 22 | 740 | 1800 | 11.8 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
What's the general application of such hose?
The hose is mainly to deliver water in agriculture, mining, construction and many other industries.
Corrugated suction hoses made from which material?
Corrugated suction hoses are typically made of PVC (polyvinyl chloride), polyurethane, or rubber. The material used will depend on the application and the specific needs of the user.
What is the most important advantage of such hose?
The most outstanding advantage is the wear resistance. Because of the outer PVC spiral, it can work at tough conditions.
