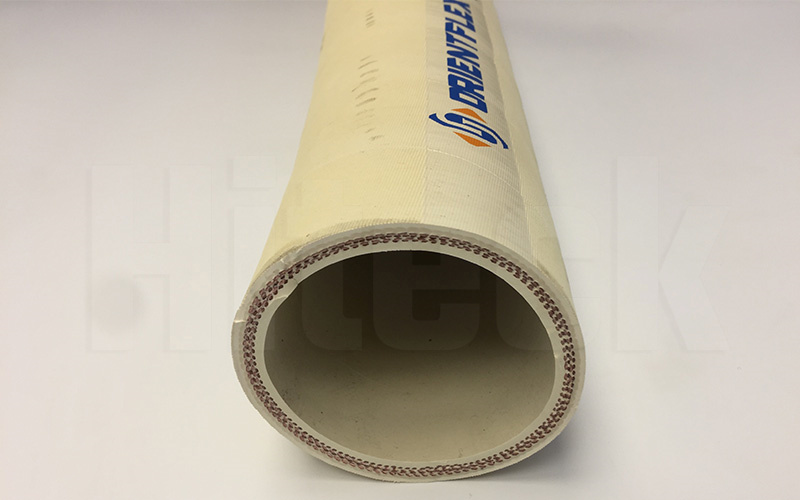

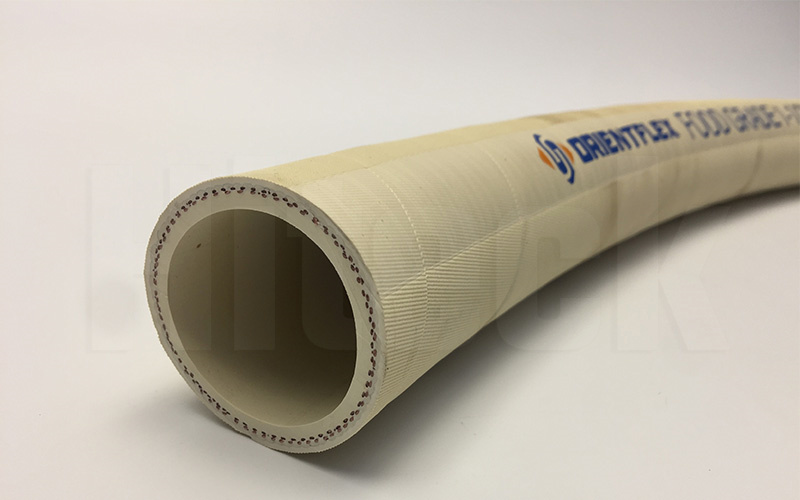

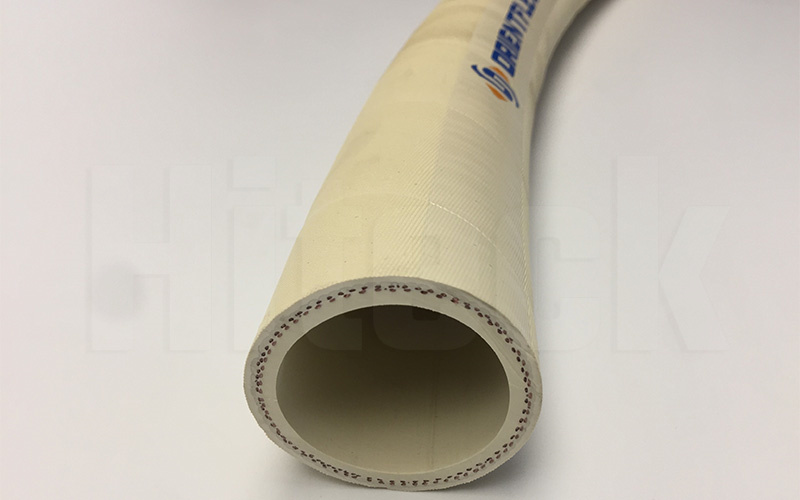

Food Discharge Hose
Food Discharge Hose
Food Discharge Hose is made from food grade rubber such as EMDP and natural rubber. While the raw material meets the 3A, USDA and FDA standard. Thus it’s a safe material for food such as milk, beer, juice and others.
Details
Tube: White, smooth, NR, NBR or EPDM food quality rubber
Reinforcement: High strength synthetic fabric.
Cover: smooth (wrapped finish), synthetic rubber, blue or white, weather resistant.
Temperature:-32℃ to 80℃ (-90℉ to +176℉)
Food Discharge Hose
Such Food Grade Hose is suitable for milk, fruit juices, soft drinks, beer, wine, pharmaceuticals, cosmetics and other non-oily food products. Its tube is made of a high-temperature synthetic rubber compound that meets 3-A, USDA and Food FDA standards for food handling. It has a smooth bore that encourages max flow rates and inhibits bacterial growth. The cover is made of corrugated gray nitrile for flexibility and resistance to chemicals, heat, and aging. It can be used with a variety of coupling options (not included). This Food Discharge Hose assembly is suitable for a wide range of applications in the food and beverage industries.
Food Discharge Hose Application
FDA approved food hose is to deliver foods such as milk, juice, beer, edible oil, daily products etc.
Temperature: -32℃ to 80℃ (-90℉ to +176℉)
Food Discharge Hose Features:
1.FDA grade tube
2.Weather and abrasion resistant
3.Ideal for wide variety of food products
150 Psi
| ID | OD | WP | BP | L | |||
| inch | mm | mm | bar | psi | bar | psi | m |
| inch | mm | mm | bar | psi | bar | psi | m |
| 1/2" | 12.7 | 22 | 10 | 150 | 30 | 450 | 40 |
| 3/4" | 19.1 | 29 | 10 | 150 | 30 | 450 | 40 |
| 1" | 25.4 | 37 | 10 | 150 | 30 | 450 | 40 |
| 1-1/4" | 31.8 | 43 | 10 | 150 | 30 | 450 | 40 |
| 1-1/2" | 38.1 | 50 | 10 | 150 | 30 | 450 | 40 |
| 2" | 50.8 | 64 | 10 | 150 | 30 | 450 | 40 |
| 2-1/2" | 63.5 | 78 | 10 | 150 | 30 | 450 | 40 |
| 3" | 76.2 | 90 | 10 | 150 | 30 | 450 | 40 |
| 3-1/2" | 89 | 104 | 10 | 150 | 30 | 450 | 40 |
| 4" | 101.6 | 116 | 10 | 150 | 30 | 450 | 40 |
300 Psi
| ID | OD | WP | BP | L | |||
| inch | mm | mm | bar | psi | bar | psi | m |
| 1/2" | 12.7 | 22 | 20 | 300 | 60 | 900 | 40 |
| 3/4" | 19.1 | 31 | 20 | 300 | 60 | 900 | 40 |
| 1" | 25.4 | 38 | 20 | 300 | 60 | 900 | 40 |
| 1-1/4" | 31.8 | 45 | 20 | 300 | 60 | 900 | 40 |
| 1-1/2" | 38.1 | 51 | 20 | 300 | 60 | 900 | 40 |
| 2" | 50.8 | 68 | 20 | 300 | 60 | 900 | 40 |
| 2-1/2" | 63.5 | 79 | 20 | 300 | 60 | 900 | 40 |
| 3" | 76.2 | 91 | 20 | 300 | 60 | 900 | 40 |
| 3-1/2" | 89 | 106 | 20 | 300 | 60 | 900 | 40 |
| 4" | 101.6 | 120 | 20 | 300 | 60 | 900 | 40 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
What is a food discharge hose?
The food hose is to transfer food and beverage products in the food processing and food service industries. It is used to safely and hygienically transport food and beverage liquids from one location to another.
Can I ask for different size hose?
Yes, sure. We offer you custom service and we can offer you different sizes.
Can I ask for a certain color?
No problem. We can offer you any colors.
