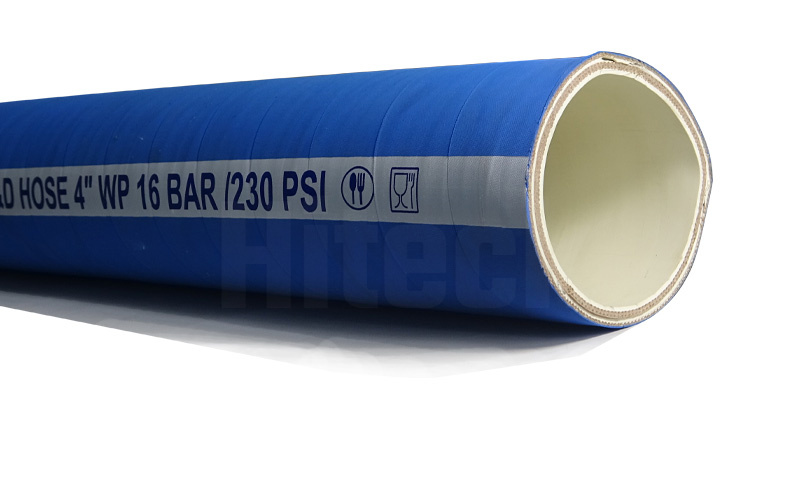

Food Grade Rubber Hose
Food Grade Rubber Hose
Food Grade Rubber Hose is made from food grade material. Generally, it’s natural rubber, nitrile rubber or EPDM. Thus it can transfer various food and beverage such as milk, bear, juice, jam and many others. It’s nontoxic and odorless.
Details
Tube: White, smooth, NR, NBR or EPDM food quality rubber
Reinforce: Multi plies high strength synthetic fabric and helix wire
Cover: smooth(wrapped finish), synthetic rubber, blue or white, weathering resistant.
Application:FDA approved food hose designed for the delivery of foods such as milk, Juice, beer, edible oil, daily products etc.
Temperature:-32℃ to 80℃(-90℉ to +176℉)
Food Grade Rubber Hose
The Food Suction And Delivery Hose is recommended for the food transfer app that demands both flexibility and ruggedness with a clean white FDA grade tube. The food grade EPDM tube is odorless and suitable for milk, fruit juices, soft drinks, beer, wine, pharmaceuticals, cosmetics and other non-oily food products. Its tube is made of a high-temperature synthetic rubber compound that meets 3-A, USDA and FDA standards for food handling.

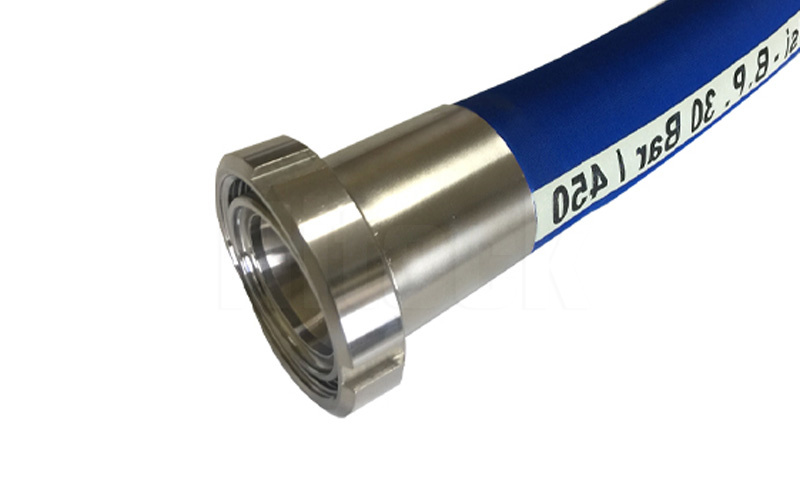

Food suction hose has a smooth bore that encourages max flow rates and inhibits bacterial growth. The cover is made of corrugated gray nitrile for flexibility and resistance to chemicals, heat, and aging. The hose is reinforced with multiple textile spirals and a dual wire helix for flexibility, strength, improved coupling retention, and kink resistance. Such food safe hose has a temperature range of -90 to +176 ℉. Besides, the food grade tubing can be used with a variety of coupling options.
Food Grade Rubber Hose Structure:
Tube: White, smooth, NR, NBR or EPDM food quality rubber
Reinforcement: Multi plies high strength synthetic fabric and helix wire
Cover: smooth(wrapped finish), synthetic rubber, blue or white, weather resistant.
Application:
FDA approved food grade pipe is designed for the delivery of foods such as milk, juice, beer, edible oil, daily products etc.
Temperature: -32℃ to 80℃ (-90℉ to +176℉)
Food Grade Rubber Hose Features:
FDA grade tube
Weather and abrasion resistant cover
Handling wide variety of food products
Both smooth and corrugated cover are available
Food Grade Rubber Hose Specification
| ID | OD | L | WP | BP | Weight | |||
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
| 3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
| 1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
| 1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
| 1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
| 1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
| 1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
| 1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
| 1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
| 1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
| 1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
| 1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
| 5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
| 5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
| 5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
| 5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
| 5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
| 5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
| 5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
| 5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
| 3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
| 3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
| 3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
| 1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
How many types of food grade hose?
PVC Food Grade Hose: These hoses are made of a clear PVC material that allows the user to visually inspect the contents of the hose. They are lightweight and flexible, making them easy to handle and install.
Silicone Food Grade Hose
Rubber Food Grade Hose
Polyurethane Food Grade Hose
Teflon (PTFE) Food Grade Hose:
Where need a rubber food hose?
Dairy Industry
Beverage Industry
Food Processing Industry
Meat Processing Industry
Bakery Industry
What can the food grade rubber hose deliver?
Milk and dairy products such as cream, yogurt, and cheese
Fruit juices, soft drinks, and carbonated beverages
Wine, beer, and other alcoholic beverages
Vegetable oils, cooking oils, and fats
Chocolate, syrup, and other sweeteners
Sauces, soups, and gravies
Liquid eggs and egg products
Confectionery and bakery products such as dough, fondant, and icing
Pharmaceuticals and cosmetics that require a high degree of hygiene and safety.
