Furnace Door Hose
Furnace Hose
Furnace Hose is a flexible duct or hose that is designed to be attached to a furnace or heating system to transport air or other gases. It is used in a variety of applications, such as in heating and cooling systems for industrial and commercial buildings, as well as in residential HVAC systems.
Details
Tube: EPDM, white, smooth and non-conductive.
Reinforcement: 2 plies of synthetic fabric.
Cover: Glass fibre ply impregnated with heat and flame resistant synthetic rubber
Temperature: -40℃ (-40°F) to +130℃ (+266°F), Cover to +302℃ (+575°F)
Furnace Hose
Non-Conductive Hose is an industrial cooling/water hose for furnaces in foundries, glassworks, steel mills and other worksites that require a hose to withstand extreme external temperatures. The durable, heat resistant aramid cover withstands steel splashes and external heat radiation to 572°F (300°C). The hose is non-conductive with a min resistance of one megaohm per inch at 1000 volts DC.

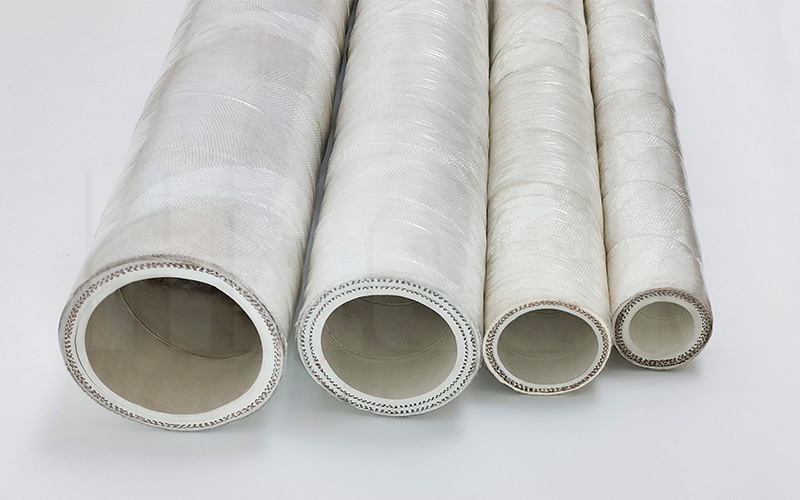

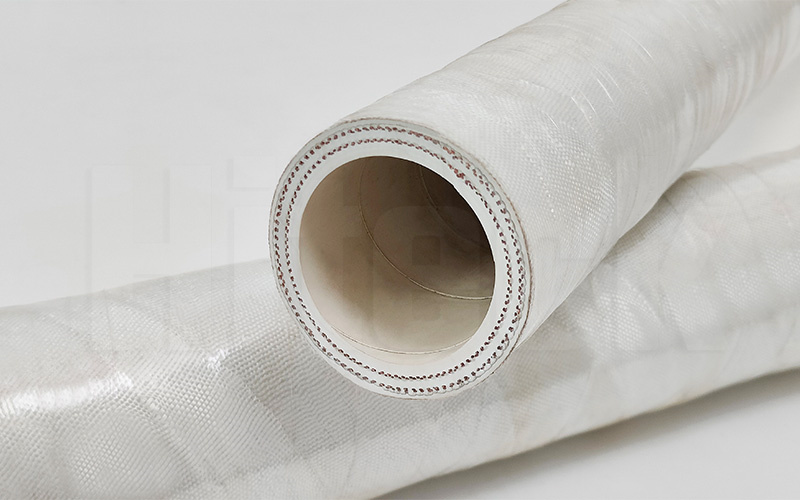

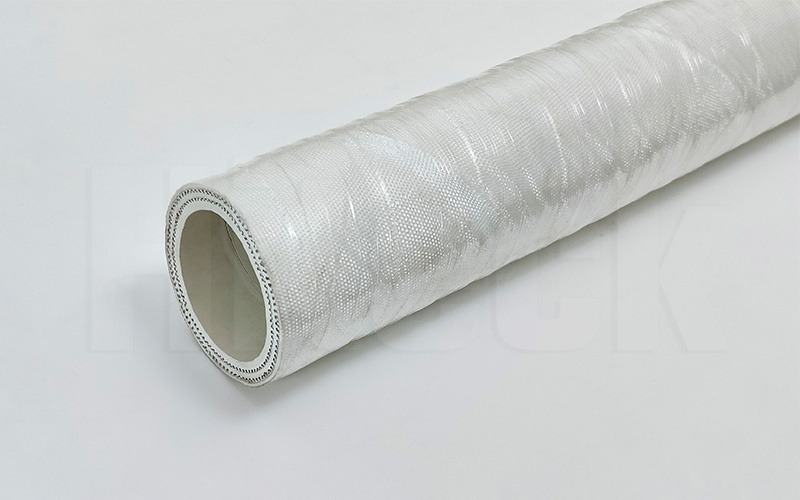

Furnace Hose Structure:
Tube: EPDM, white, smooth and non-conductive
Reinforcement: 2 plies of synthetic fabric
Cover: Glass fibre ply impregnated with heat and flame resistant synthetic rubber
Furnace Hose Application:
The hose is designed for conveying cooling water to furnace doors in steel mills, glass plants and similar operations.
Furnace Hose Temperature:
-40℃ (-40°F) to +130℃ (+266°F), Cover to +302℃(+575°F)
Furnace Hose Features:
1.Superior heat resistance cover resists heat up to +575°F
2.Resists heat, open flamee and splashes of white hot metal to +575°F (+302℃)
3.EPDM tube is non-conductive
Specification
| ID | OD | Reinforcement | WP | L | ||
| inch | mm | mm | Ply | bar | psi | m |
| 1/2" | 12.7 | 23 | 2 | 10 | 150 | 50 |
| 3/4" | 19 | 30 | 2 | 10 | 150 | 50 |
| 1" | 25.4 | 35 | 2 | 10 | 150 | 50 |
| 1-1/4" | 31.8 | 45 | 4 | 10 | 150 | 50 |
| 1-1/2" | 38.1 | 51 | 4 | 10 | 150 | 50 |
| 2" | 50.8 | 64 | 4 | 10 | 150 | 50 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
FAQ
What is a furnace hose?
A furnace hose is a type of ducting that is specifically designed to handle high-temperature air and gases in industrial furnace applications. These hoses are typically made of materials that can withstand extreme heat and are reinforced with metal wire or other materials to provide durability and flexibility. They are used to transfer hot air or gases between the furnace and other components, such as heat exchangers, furnaces, and other processing equipment. Furnace hoses are commonly used in a variety of industries, including metalworking, glass manufacturing, and chemical processing.
What is furnace hose used for?
Furnace and kiln connections: Furnace hoses are used to connect industrial furnaces and kilns to other components, such as heat exchangers or process equipment.
Foundry and metalworking applications: Furnace hoses are used to transport hot air and gases in foundries and metalworking facilities, where high temperatures are required to melt and process metals.
Glass manufacturing: Furnace hoses are used in glass manufacturing to transport hot air and gases to and from glass furnaces and annealing ovens.
Chemical processing: Furnace hoses are used in chemical processing plants to transport high-temperature gases and chemicals between different process equipment.
