Hydrauli Hose SAE 100 R8
Hydraulic Hose SAE 100 R8

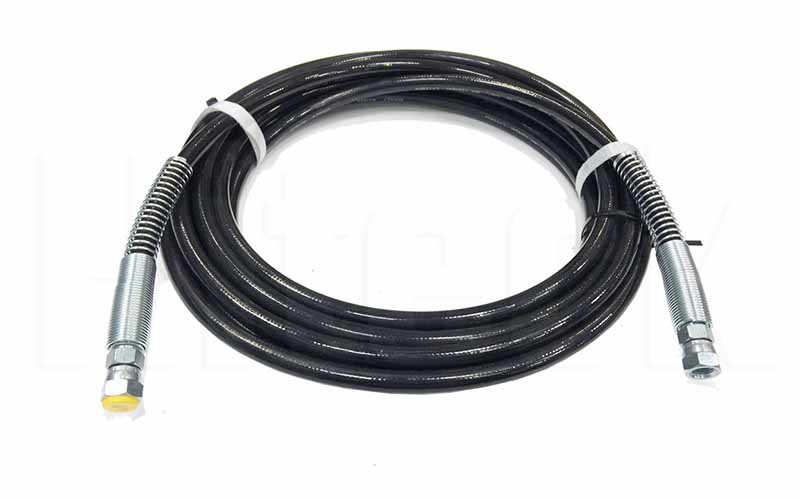

Hydrualic Hose SAE 100 R8 has parts, a inner tube, a reinforce and a cover. The inner tube is high quality PA, which has high tensile strength and excellent corrosion resistance. While the fibre reinforce layer makes it more flexible. Then the PU cover provides excellent wear resistance.
Hydraulic Hose SAE 100 R8 Details
Inner tube: Oil resistant seamless thermoplastic Polyamide tube
Cover: Black and high abrasion resistant polyurethane
Reinforcement: one or twoe layers of high tensile aramid fibre braid
Application: Hydraulic hose SAE 100 R8 can be used for paint machine
Temperature range: -40℃ (-104 ℉) to +100℃(+212 ℉)
Size: 1/4″ to 1”
Hydraulic Hose SAE 100 R8
SAE 100 R8 Thermoplastic Hydraulic Hose is suitable for delivering synthetic, petroleum and water based hydraulic fluids mainly in high pressure working conditions. It is composed of three parts: tube, reinforcement and cover. The tube is made from high quality hydraulic fluids resistant thermoplastic, making the hose widely used to deliver hydraulic fluids. The reinforcement is made from suitable synthetic fiber. The cover is made from weather and hydraulic fluids resistant thermoplastic, making the hose have longer service life.
Aramid Fibre Braid Resin Hose Application:
Medium pressure hydraulic and pneumatic systems. Exceeds SAE 100R8 requirements. For pneumatic or gaseous systems, use perforated (pin-pricked) hose.
Structure:
Inner tube: Oil resistant seamless thermoplastic Polyamide (PA) tube.
Reinforcement: one or twoe layers of high tensile aramid fibre braid
Cover: Black and high abrasion resistant polyurethane.
Temperature range: -40℃ (-104 ℉) to +100℃(+212 ℉)
Hydraulic Hose SAE 100 R8
| ID | OD | L | WP | BP | Weight | |||
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
| 3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
| 1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
| 1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
| 1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
| 1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
| 1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
| 1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
| 1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
| 1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
| 1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
| 1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
| 5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
| 5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
| 5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
| 5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
| 5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
| 5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
| 5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
| 5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
| 3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
| 3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
| 3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
| 1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |
Hydraulic Hose SAE 100 R8
Hydraulic Hose SAE 100 R8
Hydraulic Hose SAE 100 R8
