Hydraulic Hose EN 857 2SC
Hydraulic Hose EN 857 2SC

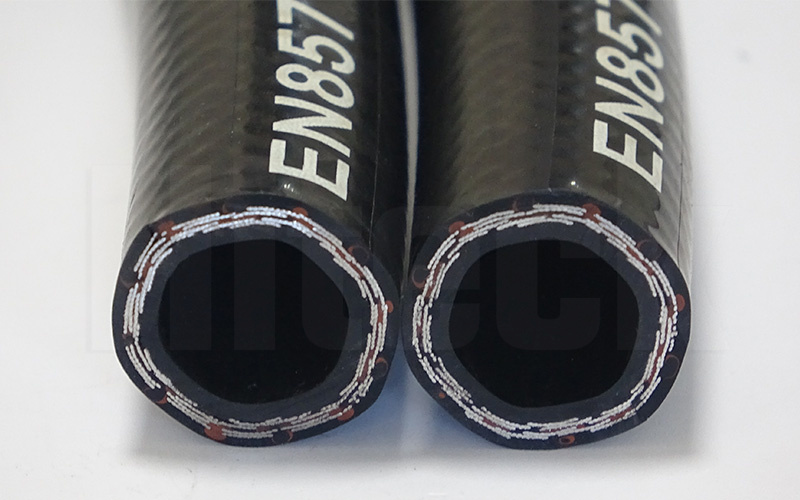

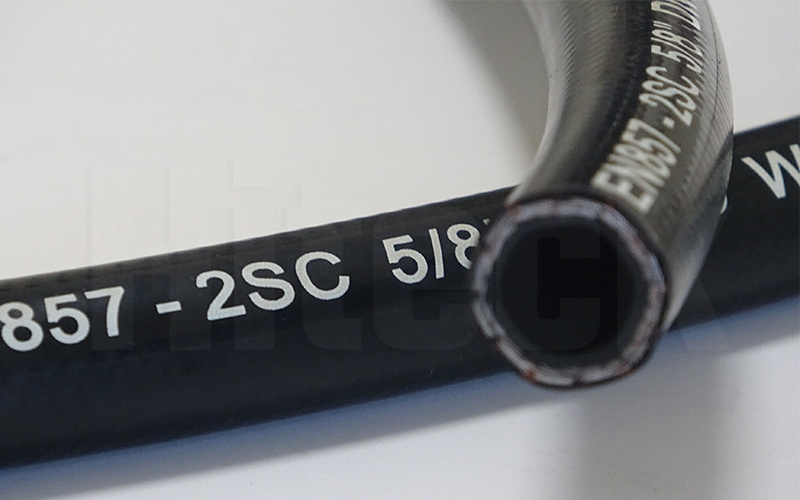

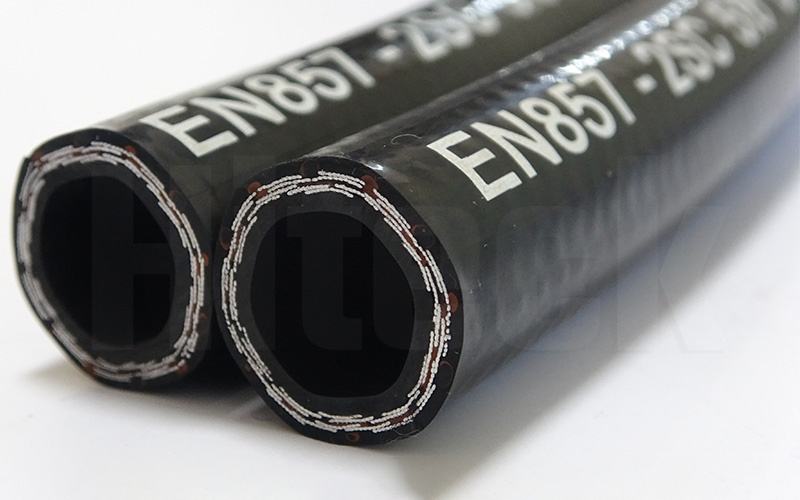

Hydraulic Hose EN 857 2SC adopts nitrile rubber as the raw material of the inner tube. Because it has excellent oil resistance. With 2 layers of high strength steel wire braid, it can bear much higher pressure. While the max pressure can be 40 Mpa.
Hydraulic Hose EN 857 2SC Details
Inner tube: oil resistant nitrile rubber
Reinforcement: 2 layers of high tensile steel wire braid
Cover: oil and weather resistant synthetic rubber
Application: petroleum and water based hydraulic fluids
Temperature range: -40℃ (-104℉) to +100℃ (+212℉)
Size: 1/4 “to 1”
Hydraulic Hose EN 857 2SC
EN 857 2SC steel wire reinforced hydraulic hose is similar to EN 853 2SN steel wire reinforced hydraulic hose in structure. The difference is that it has smaller outside diameter, which is suitable for the equipment piping whose installation space is compact and narrow. EN857 2SC hose consists of three parts: tube, reinforce and cover. The tube is oil, abrasion and corrosion resistant synthetic rubber, making it transfer water and petroleum based hydraulic fluids without any deformation in the working temp of -40 °C to +100 °C. The reinforce is two layers of high tensile steel wires, making the hose highly resistant to high pressure. Therefore, the hose has excellent performance in high pressure working conditions. The cover is high quality synthetic rubber, making the hose resistant to abrasion, corrosion, chemical fluids, weather, ozone, aging, sunlight and cut.
Hydraulic Hose EN 857 2SC Specification
| Metric Size | Inch Size | SAE Dash Size | ID | WD | OD | WP | BP | BR | |||
| min | max | min | max | max | |||||||
| mm | inch | dash | mm | mm | mm | mm | mm | mpa | psi | mpa | mm |
| 6.3 | 1/4 | 04 | 6.1 | 6.9 | 10.6 | 11.7 | 14.2 | 40.0 | 5800 | 160.0 | 75.0 |
| 8 | 5/16 | 05 | 7.7 | 8.5 | 12.1 | 13.3 | 16.0 | 35.0 | 5080 | 140.0 | 85.0 |
| 10 | 3/8 | 06 | 9.3 | 10.1 | 14.4 | 15.6 | 18.3 | 33.0 | 4790 | 132.0 | 90.0 |
| 12.5 | 1/2 | 08 | 12.3 | 13.5 | 17.5 | 19.1 | 21.5 | 27.5 | 3990 | 110.0 | 130.0 |
| 16 | 5/8 | 10 | 15.5 | 16.7 | 20.5 | 22.3 | 24.7 | 25.0 | 3630 | 100.0 | 170.0 |
| 19 | 3/4 | 12 | 18.6 | 19.8 | 24.6 | 26.4 | 28.6 | 21.5 | 3120 | 86.0 | 200.0 |
| 25 | 1 | 16 | 25.0 | 26.4 | 32.5 | 34.3 | 36.6 | 16.5 | 2390 | 66.0 | 250.0 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
What is MOQ?
The MOQ is 1000 meters
What is the delivery time?
It will be within 30 days.
