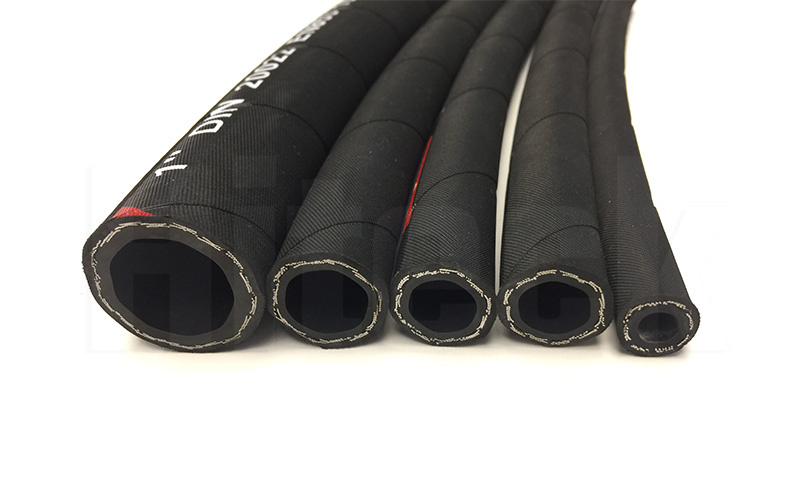

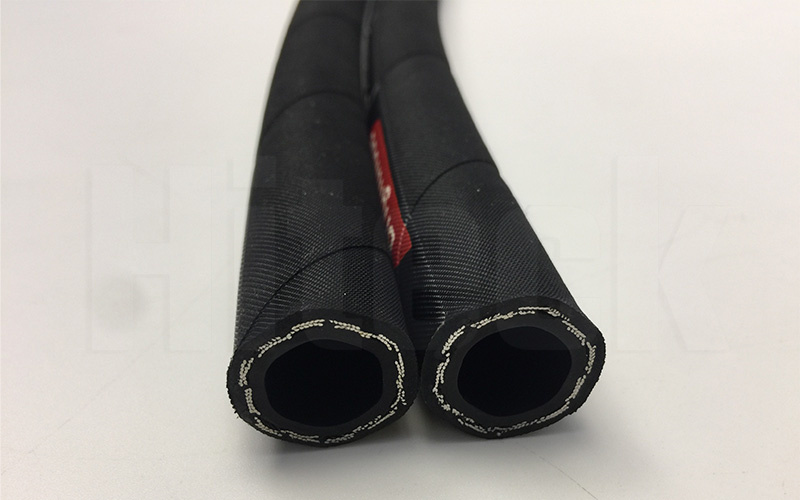

Hydraulic Hose SAE 100 R1
Hydraulic Hose SAE 100 R1
Hydraulic Hose SAE 100 R1 absorbs NBR as the inner tube material because it has the best oil resistance. Besides, it has a steel wire reinforce. So it can bear much higher pressure than common rubber hoses.
Hydraulic Hose SAE 100 R1 Details
Inner tube: oil resistant NBR
Cover: oil and weather resistant synthetic rubber
Reinforcement: single layer of steel wire braid
Application: Mine hydraulic support, oilfield extraction machinery, mine/road/construction machinery. Petroleum base hydraulic fluids and lubrication oils, water, glycol and emulsion.
Temperature range: -40℃ (-104 ℉) to +100℃(+212 ℉)
Size: 3/16 “to 2”

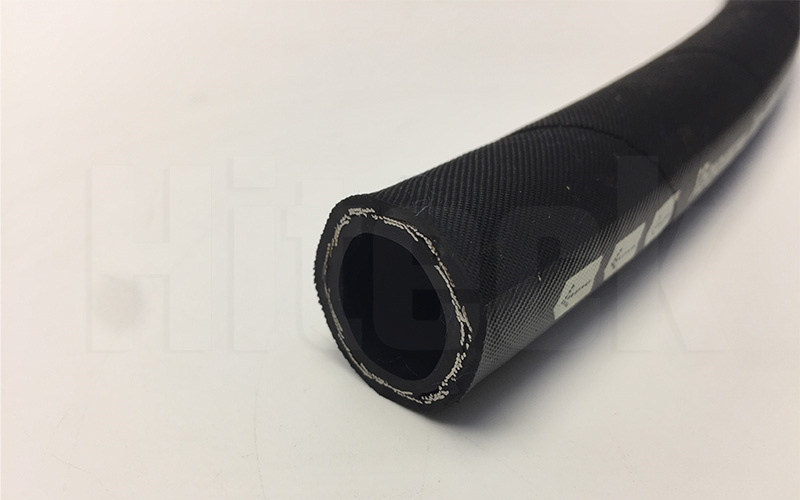

Hydraulic Hose SAE 100 R1
SAE100 R1 steel wire reinforced hydraulic hose is suitable for hydraulic and general industrial systems. SAE 100R1AT can bear higher working pressure than other rubber hoses thanks to its high tensile braided steel wire reinforcement. Hydraulic Hose R1 is composed of three parts: tube, reinforcement and cover. The tube is made from oil resistant synthetic rubber, making the hose have excellent performance in delivering oils. The reinforcement is made from one layer of high tensile braided steel wire, making the hose have outstanding high pressure resistance. The cover is made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone, aging,sunlight and cut. Therefore, it has longer service life. Contact us now for more details.
Hydraulic Hose SAE 100 R1 Standard:
Such hydraulic hose exceeds the SAE 100 R1AT and EN 853 1SN standard.
SAE 100 R1 Specification
| Metric Size | Inch Size | SAE Dash Size | ID | WD | OD | WP | BP | BR | |||
| mm | mm | mm | mm | mm | |||||||
| mm | inch | dash | min | max | min | max | max | mpa | psi | mpa | mm |
| 5.0 | 3/16" | 03 | 4.6 | 5.4 | 8.9 | 10.1 | 12.5 | 21.0 | 3150 | 84.0 | 90 |
| 6.3 | 1/4" | 04 | 6.2 | 7.0 | 10.6 | 11.7 | 14.1 | 19.2 | 2880 | 77.0 | 100 |
| 8.0 | 5/16" | 05 | 7.7 | 8.5 | 12.1 | 13.3 | 15.7 | 17.5 | 2625 | 70.0 | 115 |
| 10.0 | 3/8" | 06 | 9.3 | 10.1 | 14.5 | 15.7 | 18.1 | 15.7 | 2355 | 63.0 | 125 |
| 12.5 | 1/2" | 08 | 12.3 | 13.5 | 17.5 | 19.0 | 21.5 | 14.0 | 2100 | 56.0 | 180 |
| 16.0 | 5/8" | 10 | 15.5 | 16.7 | 20.6 | 22.2 | 24.7 | 10.5 | 1575 | 42.0 | 205 |
| 19.0 | 3/4" | 12 | 18.6 | 19.8 | 24.6 | 26.2 | 28.6 | 8.7 | 1305 | 35.0 | 240 |
| 25.0 | 1 | 16 | 25.0 | 26.4 | 32.5 | 34.1 | 36.6 | 7.0 | 1050 | 28.0 | 300 |
| 31.5 | 1.1/4" | 20 | 31.4 | 33.0 | 39.3 | 41.7 | 44.8 | 4.3 | 645 | 17.5 | 420 |
| 38.0 | 1.1/2" | 24 | 37.7 | 39.3 | 45.6 | 48.0 | 52.0 | 3.5 | 525 | 14.0 | 500 |
| 51.0 | 2 | 30 | 50.4 | 52.0 | 58.7 | 61.7 | 65.9 | 2.6 | 390 | 10.5 | 630 |
EN 853 2SN Specification
| Metric Size | Inch Size | SAE Dash Size | ID | WD | OD | WP | BP | BR | |||
| mm | mm | mm | mm | mm | |||||||
| mm | inch | dash | min | max | min | max | max | mpa | psi | mpa | mm |
| 5.0 | 3/16" | 03 | 4.6 | 5.4 | 9.0 | 10.0 | 12.5 | 25.0 | 3750 | 100 | 90 |
| 6.3 | 1/4" | 04 | 6.2 | 7.0 | 10.6 | 11.6 | 14.1 | 22.5 | 3375 | 90 | 100 |
| 8.0 | 5/16" | 05 | 7.7 | 8.5 | 12.1 | 13.3 | 15.7 | 21.5 | 3225 | 85 | 115 |
| 10.0 | 3/8" | 06 | 9.3 | 10.1 | 14.5 | 15.7 | 18.1 | 18.0 | 2700 | 72 | 130 |
| 12.5 | 1/2" | 08 | 12.3 | 13.5 | 17.5 | 19.1 | 21.4 | 16.0 | 2400 | 64 | 180 |
| 16.0 | 5/8" | 10 | 15.5 | 16.7 | 20.6 | 22.2 | 24.5 | 13.0 | 1950 | 52 | 200 |
| 19.0 | 3/4" | 12 | 18.6 | 19.8 | 24.6 | 26.2 | 28.5 | 10.5 | 1575 | 42 | 240 |
| 25.0 | 1 | 16 | 25.0 | 26.4 | 32.5 | 34.1 | 36.6 | 8.8 | 1320 | 35 | 300 |
| 31.5 | 1.1/4" | 20 | 31.4 | 33.0 | 39.3 | 41.7 | 44.8 | 6.3 | 945 | 25 | 420 |
| 38.0 | 1.1/2" | 24 | 37.7 | 39.3 | 45.6 | 48.0 | 52.1 | 5.0 | 750 | 20 | 500 |
| 51.0 | 2 | 30 | 50.4 | 52.0 | 58.7 | 61.7 | 65.5 | 4.0 | 600 | 16 | 630 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
Can I prient my logo on the hose?
Yes of course. We can prient your logo on the hose. Besides, we can print other articles and colored lines on your demand.
Which is the material of such hose
It adopts NBR as the raw material as it has excellent oil resistance.
How long can the hose lasts?
Generally, it could be 5 years. But many factors can affact it such as work condition and storage condition.
