Hydraulic Hose SAE 100 R14
Hydraulic Hose SAE 100 R14
Hydraulic Hose SAE 100 R14 adopts PTFE as the raw materal. PTFE is the king of plastic. It has great properties such as high temperature resistant, corrosion resistant, wear resistant and high strength. Thus it can deliver various oils.

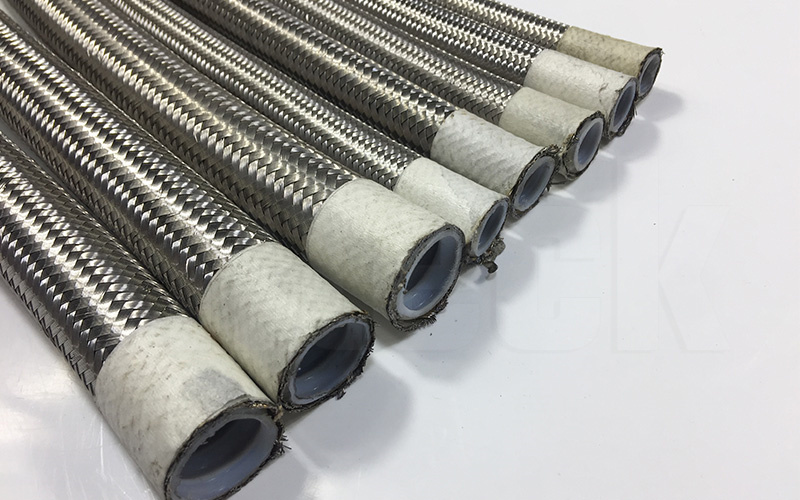

Hydraulic Hose SAE 100 R14 Details
Inner tube: PTFE
Cover: stainless steel wire braid
Application: food industry, high and low temperature fluids, chemical industry, compressor discharge, ect.
Temperature range: -73℃ (-164 ℉) to +260℃ (+500 ℉)
Size: 1/8″ to 1″

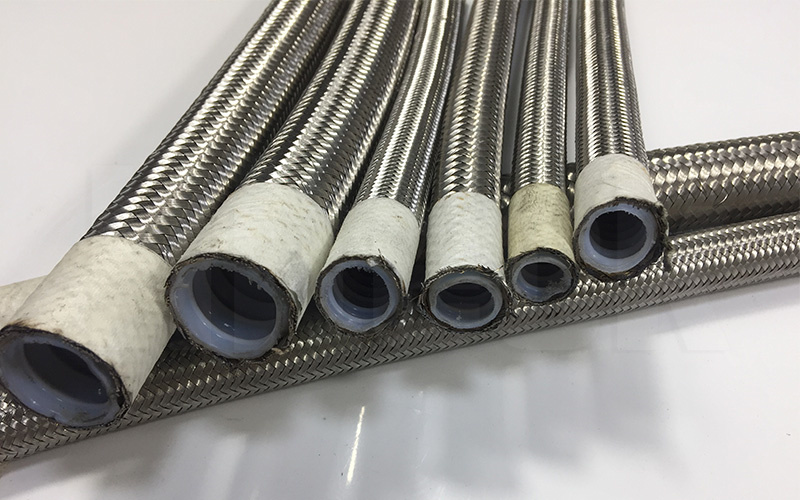

Hydraulic Hose SAE 100 R14
PTFE Hose is a special process dealing with PTFE inner tube
Stainless steel wire and the ends coat enhanced layer composed of metal connectors.
PTFE Hose assembly, the notable features are the aging, chemical corrosion, high and low temperature resistance and light weight (relative to the same working pressure of the rubber hose). PTFE hydraulic hose can also transfer liquid and gas. Apply to aviation, aerospace aircraft hydraulic, servo control, lubricating oil and fuel system, transmission tube. Contact us now!
SAE 100 R14 Smooth Bore Specification
| Size | ID | OD | Wall Thickness | WP | BP | BR | ||||
| inch | mm | inch | mm | inch | mm | psi | bar | psi | bar | mm |
| 1/8" | 3.5 | 0.138 | 6.6 | 0.26 | 1 | 4727 | 326 | 14613 | 1007.76 | 51 |
| 3/16" | 4.8 | 0.189 | 8 | 0.315 | 0.85 | 3582 | 247 | 10738 | 740.52 | 75 |
| 1/4" | 6.4 | 0.252 | 9.2 | 0.362 | 0.85 | 3106 | 214.2 | 9658 | 666.06 | 81 |
| 5/16" | 8 | 0.315 | 11 | 0.433 | 0.85 | 2781 | 191.76 | 8682 | 598.74 | 92 |
| 3/8" | 9.7 | 0.382 | 12.8 | 0.504 | 0.85 | 2736 | 188.7 | 8223 | 567.12 | 131 |
| 1/2" | 12.7 | 0.5 | 15.9 | 0.626 | 1 | 1568 | 108.12 | 6818 | 470.22 | 182 |
| 5/8" | 16 | 0.63 | 19.2 | 0.756 | 1 | 1878 | 129.54 | 5650 | 389.64 | 211 |
| 3/4" | 19 | 0.748 | 22.7 | 0.894 | 1.2 | 1154 | 79.56 | 3979 | 274.38 | 338 |
| 7/8" | 22.2 | 0.874 | 26 | 1.024 | 1.2 | 887 | 61.2 | 2884 | 198.9 | 421 |
| 1" | 25 | 0.984 | 29.3 | 0.154 | 1.5 | 592 | 40.8 | 2263 | 156.06 | 539 |
| 2" | 50 | 1.969 | 55.6 | 2.189 | 2 | 444 | 30.6 | 1775 | 122.4 | 1015 |

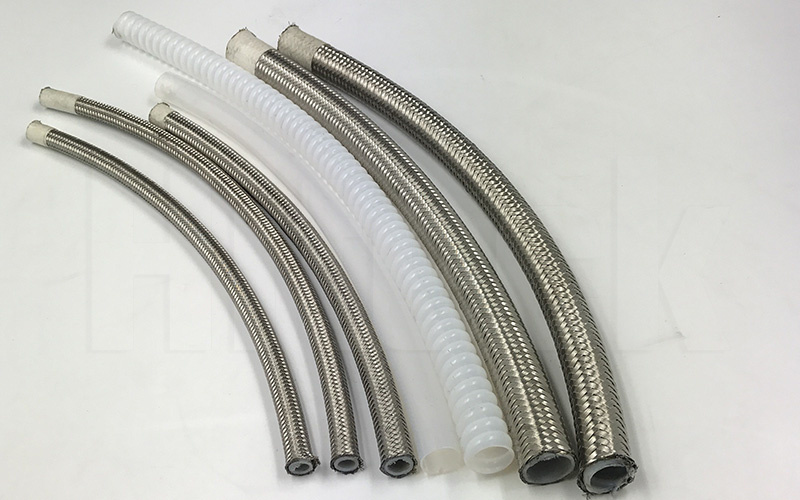

SAE 100 R14 Corrugated Bore Specification
| Size | ID | OD | Wall Thickness | WP | BP | BR | ||||
| inch | mm | inch | mm | inch | mm | psi | bar | psi | bar | mm |
| 1/4" | 6.5 | 0.256 | 11.5 | 0.453 | 0.8 | 1929 | 133 | 5546 | 382.5 | 20 |
| 5/16" | 8 | 0.315 | 12.3 | 0.484 | 0.65 | 1923 | 132.6 | 5324 | 367.2 | 25 |
| 3/8" | 10 | 0.394 | 14.2 | 0.559 | 0.65 | 1849 | 127.5 | 5177 | 357 | 33 |
| 1/2" | 13 | 0.512 | 17.2 | 0.677 | 0.85 | 1627 | 112.2 | 4881 | 336.6 | 42 |
| 5/8" | 16 | 0.63 | 21.6 | 0.85 | 0.9 | 1183 | 81.6 | 3560 | 244.8 | 60 |
| 3/4" | 19 | 0.748 | 25.3 | 0.996 | 1 | 1036 | 71.4 | 3108 | 214.2 | 63 |
| 1" | 25 | 0.984 | 31 | 1.22 | 1 | 740 | 51 | 2219 | 153 | 79 |
| 1-1/4" | 32 | 1.26 | 39 | 1.535 | 1.1 | 710 | 48.96 | 2071 | 142.8 | 125 |
| 1-1/2" | 38 | 1.496 | 45 | 1.772 | 1.45 | 636 | 43.86 | 1775 | 122.4 | 145 |
| 2" | 50 | 1.969 | 60 | 2.362 | 1.5 | 503 | 34.68 | 1479 | 102 | 180 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
What is a R14 hydraulic hose?
The hose has a Teflon inner tube and a steel wire cover. It’s to deliver hydraulid oils.
What's the advantage of R14 hose?
PTFE is the “king of plastic” because it has much more great properties. It can deliver hydrualic fluids and corrosive materials.
What's the key features of such hose?
The key features of R14 hydraulic hose are chemical resistant and abrasion resistant.
