Hydraulic Hose SAE 100 R15
Hydraulic Hose SAE 100 R15

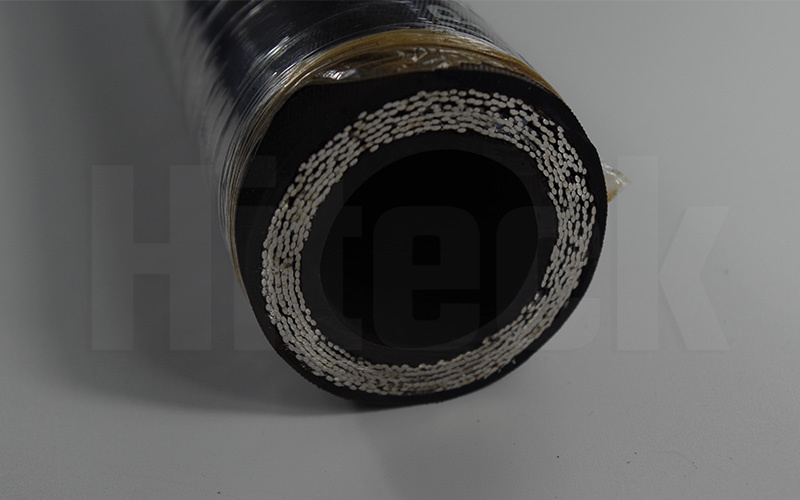

Hydraulic Hose SAE 100 R15 has multipal layers of steel wire spiral. The size less than 1” is 4 layers, while the size large than 1” is 6 layers. Because of the strong reinforce layers, it can bear much high pressure. While it could be max 42 Mpa.
Hydraulic Hose SAE 100 R15 Details
Inner tube: oil resistant nitrile rubber
Reinforce: 4 layers (3/8-1″), 6 layers (1-1/4′,1-1/2′) steel wire spiral
Cover: oil and weather resistant synthetic rubber
Application: petroleum and water based hydraulic fluids
Temperature range: -40℃ (-104 ℉) to +100℃(+212 ℉)
Size: 3/8″ to 3/2″
Hydraulic Hose SAE 100 R15

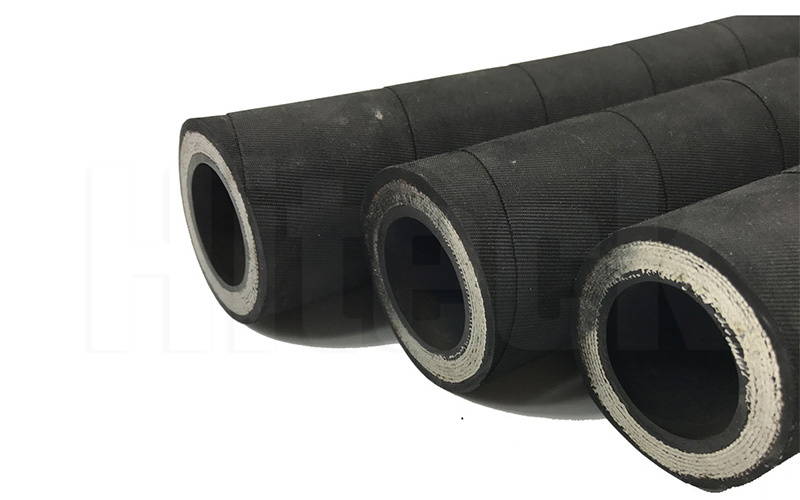

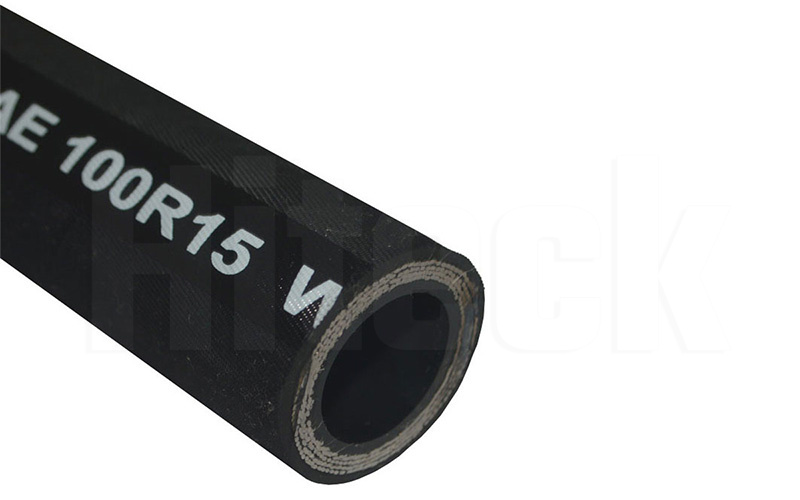

SAE 100 R15 steel wire spiraled hydraulic hose is very popular in high pressure working conditions and it is suitable for petroleum based hydraulic oils. It is composed of three parts: tube, reinforcement and cover. The tube is made from black oil resistant synthetic rubber, making the hose widely used in delivering petroleum based hydraulic oils. The reinforcement is made from multiple layers of high tensile and high strength thick spiraled steel wire in alternating direction, making the hose have very high working pressure. The cover is made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone, aging and cut.
Ideal for:
Hydraulic Rubber Hose SAE100 R15 is suitable for extremely high pressure, high impulse Hydraulic applications such as hydrostatic transmissions. This hose meet all the requirements of SAE 100R15 and performance requirements of EN 856 4SP(-6,-8,-10 and -12), EN856 4SH(-12, -16 and -20). Compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum based fluids.
Inner tube: oil resistant nitrile rubber
Reinforcement: 4 layers (3/8-1″), 6 layers (1-1/4′,1-1/2′) steel wire spiral
Cover: oil and weather resistant synthetic rubber
Application: petroleum and water based hydraulic fluids
Surface: wrapped surface
Temperature range: -40℃ (-104 ℉) to +100℃ (+212 ℉)
PRODUCTS APPLICATION:
Hydraulic hose SAE 100 R15 can be used for hydraulic system with petroleum and water based fluids, also for general industrial use.
Hydraulic Hose SAE 100 R15 Specification
| ID | OD | L | WP | BP | Weight | |||
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
| 3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
| 1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
| 1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
| 1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
| 1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
| 1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
| 1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
| 1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
| 1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
| 1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
| 1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
| 5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
| 5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
| 5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
| 5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
| 5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
| 5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
| 5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
| 5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
| 3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
| 3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
| 3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
| 1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |
Hydraulic Hose SAE 100 R15
Hydraulic Hose SAE 100 R15
Hydraulic Hose SAE 100 R15
