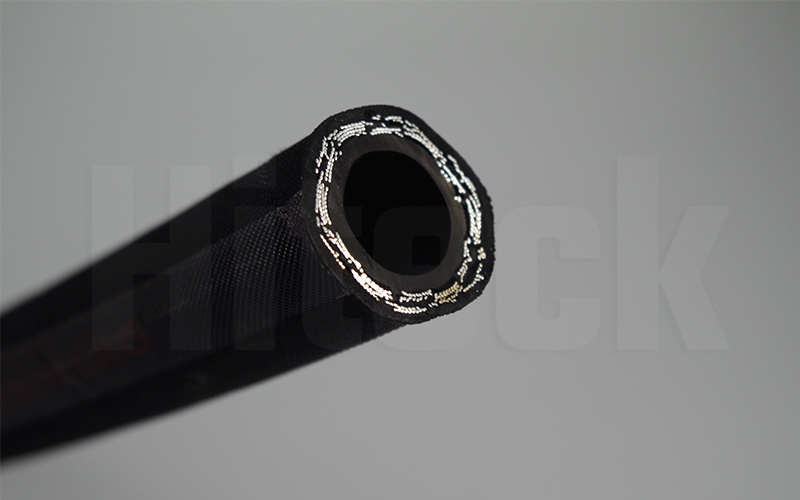

Hydraulic Hose SAE 100 R16
Hydraulic Hose SAE 100 R16

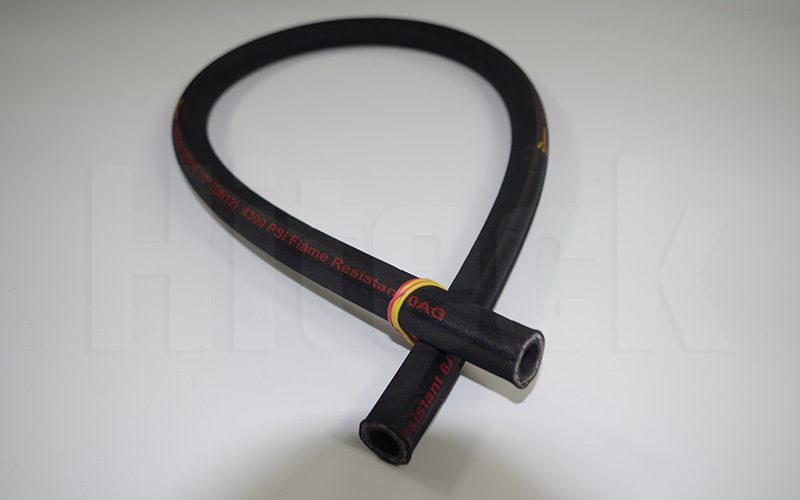

Hydraulic Hose SAE 100 R16 is very flexible. Thus it’s ideal for the use with a narrow space. Besides, the 2-layer steel wire braid reinforce makes it can work at high pressure apps. While the max work pressure can reach to 35 Mpa.
Hydraulic Hose SAE 100 R16 Details
Inner tube: oil resistant nitrile rubber
Reinforcement: 2 layers of steel wire braided
Cover: oil and weather resistant synthetic rubber
Application: petroleum and water based hydraulic fluids
Temperature range: -40℃ (-104 ℉) to +100℃ (+212 ℉)
Size: 3/16″ to 2″
Hydraulic Hose SAE 100 R16

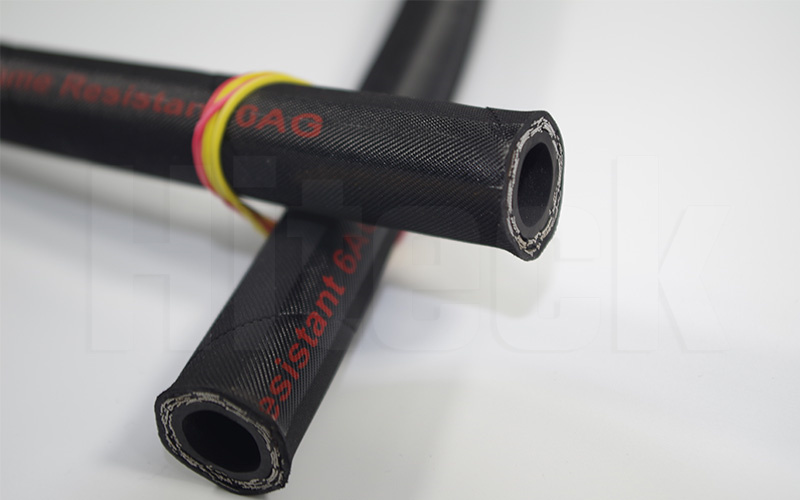

SAE 100R16 steel wire reinforced hydraulic hose is suitable for connecting hydraulic equipment in narrow installation space, because it has smaller bending radius and outside diameter. 100R16 hydraulic hose is composed of three parts: tube, reinforcement and cover. The tube is made from black and oil resistant synthetic rubber, making it have excellent performance in delivering oils. The reinforce is one layer or two layers of braided steel wire, which is highly resistant to high pressure. While the cover is made from weather resistant synthetic rubber, making the hose resistant to weather, ozone, aging, abrasion, corrosion and cut.
Hydraulic Hose SAE 100 R16 Specification
| Metric Size | Inch Size | SAE Dash Size | ID | WD | OD | WP | BP | BR | ||
| min | max | max | max | |||||||
| mm | inch | dash | mm | mm | mm | mm | mpa | psi | mpa | mm |
| 6.3 | 1/4 | 04 | 6.2 | 7.0 | 12.3 | 14.5 | 35.0 | 5075 | 140.0 | 50.0 |
| 8 | 5/16 | 05 | 7.7 | 8.5 | 13.3 | 15.7 | 29.7 | 4307 | 119.0 | 55.0 |
| 10 | 3/8 | 06 | 9.3 | 10.1 | 15.9 | 18.8 | 28.0 | 4060 | 112.0 | 65.0 |
| 12.5 | 1/2 | 08 | 12.3 | 13.5 | 19.0 | 22.0 | 24.5 | 3553 | 98.0 | 90.0 |
| 16 | 5/8 | 10 | 15.5 | 16.7 | 22.6 | 25.4 | 19.2 | 2784 | 77.0 | 100.0 |
| 19 | 3/4 | 12 | 18.6 | 19.8 | 26.3 | 29.0 | 15.7 | 2277 | 63.0 | 120.0 |
| 25 | 1 | 16 | 25.0 | 26.4 | 34.0 | 36.6 | 14.0 | 2030 | 56.0 | 150.0 |
| 31.5 | 1-1/4 | 20 | 31.4 | 33.0 | 41.9 | 44.3 | 11.3 | 1639 | 45.0 | 210.0 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
What's the reinforce of hydraulic hose R16?
It has 2 layers of steel wire braid.
What is the common size of this hose?
The common sizes of R16 are 3/16”, 3/8”, 1/4” and some others.
Can I ask for hydraulic hose assembly?
Yes, we can offer you hydraulic hose assembly. It will be crimped by a crimping machine.
