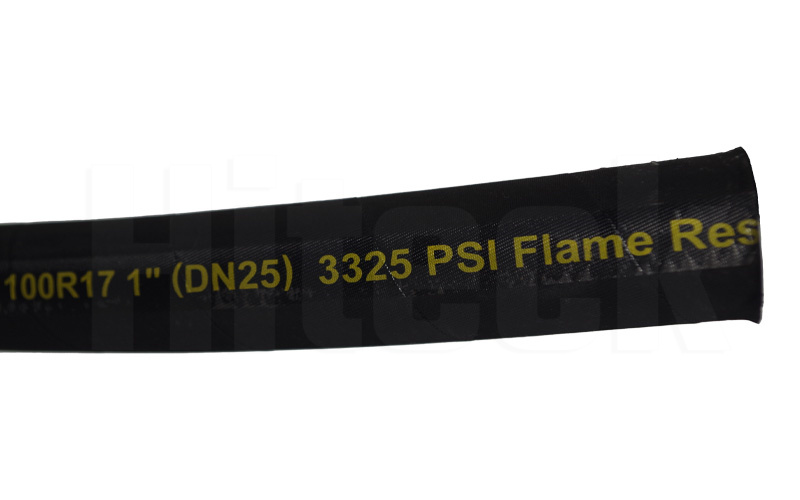

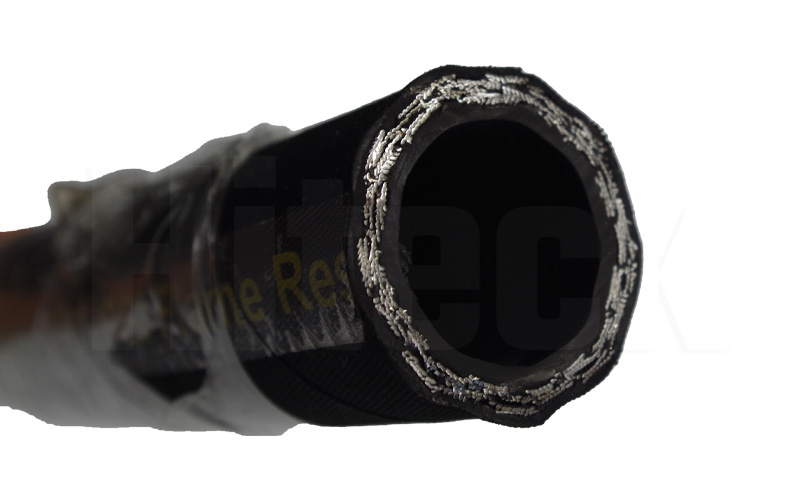

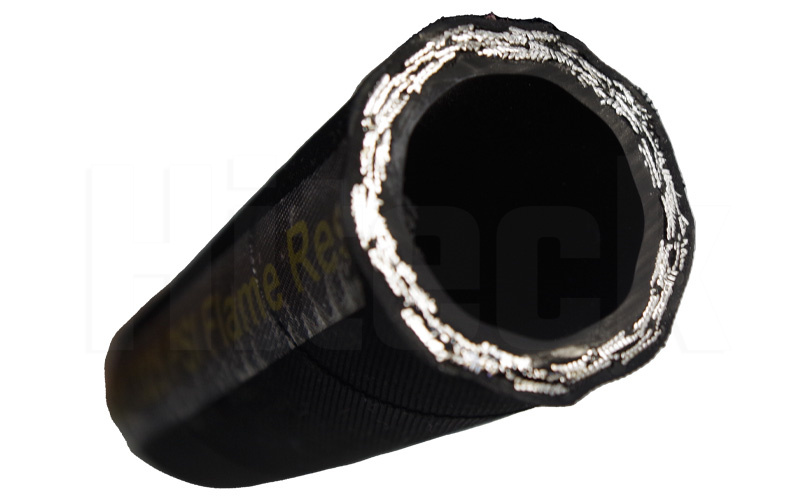

Hydraulic Hose SAE 100 R17
Hydraulic Hose SAE 100 R17
Hydraulic Hose SAE 100 R17 has a oil resistant inner tube. Thus it can transfer hydraulic fluids without any aging. It also has 1 or 2 layers of steel wire braid, which offers great pressure resistance.
Hydraulic Hose SAE 100 R17 Details
Inner tube: oil resistant nitrile rubber
Reinforcement: 2 layers of fibre braid
Cover: oil and weather resistant synthetic rubber
Application: petroleum and water based hydraulic fluids
Temperature range: -40℃ (-104 ℉) to +100℃(+212 ℉)
Size: 3/16″ to 1″
Hydraulic Hose SAE 100 R17
Inner tube: oil resistant nitrile rubber
Reinforcement: 2 layers of fibre braid
Cover: oil and weather resistant synthetic rubber
Application: petroleum and water based hydraulic fluids
Temperature range: -40℃ (-104 ℉) to +100℃ (+212 ℉)
Size: 3/16″ to 1″
Hydraulic Hose SAE 100 R17 Specification
| ID | OD | L | WP | BP | Weight | |||
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
| 3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
| 1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
| 1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
| 1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
| 1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
| 1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
| 1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
| 1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
| 1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
| 1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
| 1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
| 5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
| 5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
| 5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
| 5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
| 5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
| 5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
| 5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
| 5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
| 3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
| 3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
| 3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
| 1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |
Hydraulic Hose SAE 100 R17
Hydraulic Hose SAE 100 R17
Hydraulic Hose SAE 100 R17
