Hydraulic Hose SAE 100 R2
Hydraulic Hose SAE 100 R2/EN 853 2SN

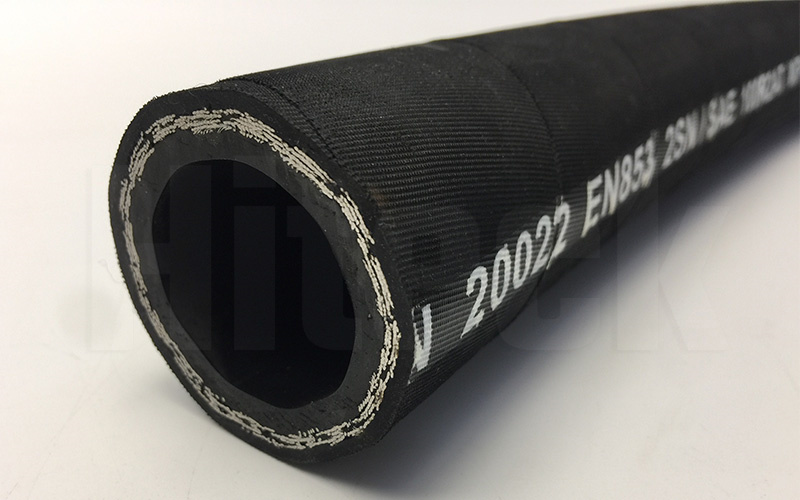

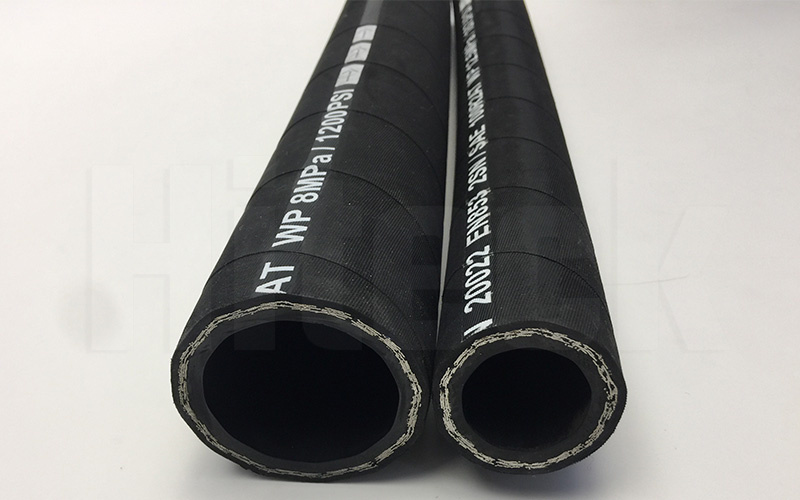

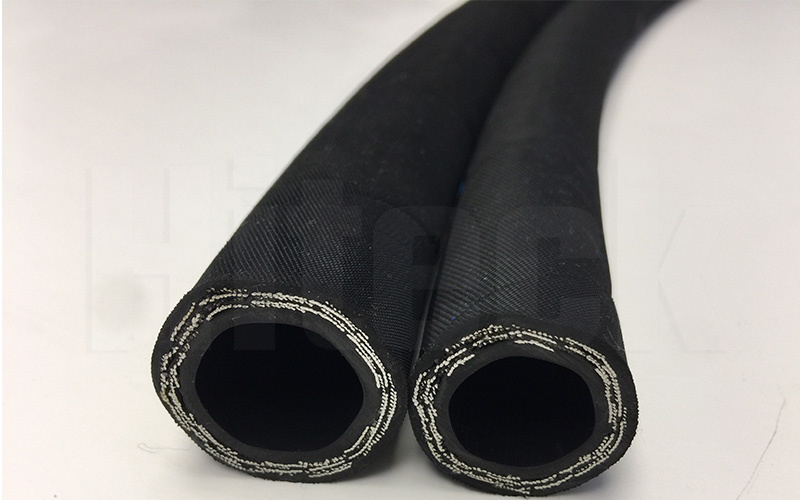

Hydraulic Hose SAE 100 R2 has a 2 layers of steel wire braid reinforce. Thus it can bear higher pressure which could reach max 35 Mpa. Such hose is ideal for high pressure hydraulic systems industry and agriculture. It also widely serves in various vehicles such as excavator.
SAE 100 R2 Details
Inner tube: oil resistant NBR
Cover: oil and weather resistant synthetic rubber
Reinforcement: 2 layers of steel wire braided
Application: high pressure hydraulic systems in industry and agriculture to transfer mineral oil and glycol based hydraulic fluids, vegetable and mineral lubricants, raw oil, cooling fluid and pressured air.
Temperature range: -40℃ (-104 ℉) to +100℃(+212 ℉)
Size: 3/16 “to 2”
Hydraulic Hose SAE 100 R2
SAE 100R2 steel wire reinforced hydraulic hose is suitable for delivering petroleum-base hydraulic oils thanks to its oil resistant tube. Besides, it can convey the oils without producing excessive heat and leak. It is mainly used in some mobile equipment, such as farm tractor, dump truck and in-plant hydraulic equipment. SAE100R2 is composed of three parts: tube, reinforcement and cover. The tube is made from oil resistant synthetic rubber, so it is mainly used to transfer oils. The reinforcement is made from two layers of high tensile braided steel wires, making the hose have solid structure and resistant to high pressure. Therefore, hydraulic hose r2 has excellent performance in high pressure working environment. The cover is made from high quality synthetic rubber, which is resistant to weather, ozone, corrosion, abrasion, aging, sunlight and cut. The sae 100 r2at hose has longer service life as a result. Contact us now!
SAE 100 R2 Specification
| Metric Size | Inch Size | SAE Dash Size | ID | WD | OD | WP | BP | BR | |||
| mm | mm | mm | mm | mm | |||||||
| mm | inch | dash | min | max | min | max | max | mpa | psi | mpa | mm |
| 5.0 | 3/16" | 03 | 4.6 | 5.4 | 10.6 | 11.7 | 14.1 | 35.0 | 5250 | 140.0 | 90 |
| 6.3 | 1/4" | 04 | 6.2 | 7.0 | 12.1 | 13.3 | 15.7 | 35.0 | 5250 | 140.0 | 100 |
| 8.0 | 5/16" | 05 | 7.7 | 8.5 | 13.7 | 14.9 | 17.3 | 29.7 | 4455 | 119.0 | 115 |
| 10.0 | 3/8" | 06 | 9.3 | 10.1 | 16.1 | 17.3 | 19.7 | 28.0 | 4200 | 112.0 | 125 |
| 12.5 | 1/2" | 08 | 12.3 | 13.5 | 19.0 | 20.6 | 23.1 | 24.5 | 3675 | 98.0 | 180 |
| 16.0 | 5/8" | 10 | 15.5 | 16.7 | 22.2 | 23.8 | 26.3 | 19.2 | 2880 | 77.0 | 205 |
| 19.0 | 3/4" | 12 | 18.6 | 19.8 | 26.2 | 27.8 | 30.2 | 15.7 | 2355 | 63.0 | 240 |
| 25.0 | 1 | 16 | 25.0 | 26.4 | 34.1 | 35.7 | 38.9 | 14.0 | 2100 | 56.0 | 300 |
| 31.5 | 1.1/4" | 20 | 31.4 | 33.0 | 43.2 | 45.6 | 49.6 | 11.3 | 1695 | 45.5 | 420 |
| 38.0 | 1.1/2" | 24 | 37.7 | 39.3 | 49.6 | 52.0 | 56.0 | 8.7 | 1305 | 43.5 | 500 |
| 51.0 | 2 | 30 | 50.4 | 52.0 | 62.3 | 64.7 | 68.6 | 7.8 | 1170 | 31.5 | 630 |
EN 853 2SN Specification
| Metric Size | Inch Size | SAE Dash Size | ID | WD | OD | WP | BP | BR | |||
| mm | mm | mm | mm | mm | |||||||
| mm | inch | dash | min | max | min | max | max | mpa | psi | mpa | mm |
| 5.0 | 3/16" | 03 | 4.6 | 5.4 | 10.6 | 11.6 | 14.1 | 41.5 | 6225 | 165 | 90 |
| 6.3 | 1/4" | 04 | 6.2 | 7.0 | 12.1 | 13.3 | 15.7 | 40.0 | 6000 | 160 | 100 |
| 8.0 | 5/16" | 05 | 7.7 | 8.5 | 13.7 | 14.9 | 17.3 | 35.0 | 5250 | 140 | 115 |
| 10.0 | 3/8" | 06 | 9.3 | 10.1 | 16.1 | 17.3 | 19.7 | 33.0 | 4950 | 132 | 130 |
| 12.5 | 1/2" | 08 | 12.3 | 13.5 | 19.0 | 20.6 | 23.0 | 27.5 | 4125 | 110 | 180 |
| 16.0 | 5/8" | 10 | 15.5 | 16.7 | 22.2 | 23.8 | 26.2 | 25.0 | 3750 | 100 | 200 |
| 19.0 | 3/4" | 12 | 18.6 | 19.8 | 26.2 | 27.8 | 30.1 | 21.5 | 3225 | 85 | 240 |
| 25.0 | 1 | 16 | 25.0 | 26.4 | 34.1 | 35.7 | 38.9 | 16.5 | 2475 | 65 | 300 |
| 31.5 | 1.1/4" | 20 | 31.4 | 33.0 | 43.3 | 45.6 | 49.5 | 12.5 | 1875 | 50 | 420 |
| 38.0 | 1.1/2" | 24 | 37.7 | 39.3 | 49.6 | 52.0 | 55.9 | 9.0 | 1350 | 36 | 500 |
| 51.0 | 2 | 30 | 50.4 | 52.0 | 62.3 | 64.7 | 68.6 | 8.0 | 1200 | 32 | 630 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
What's the pressure of such hose?
SAE 100r2 has a high working pressure which can be max 35Mpa.
Can I ask for the hose assembly?
Yes of course. We offer you one-stop service, besides hose, you can also get relevant fittings. With different types of crimping machine, we can offer you assembly.
How long can the hose last?
Generally it can work more than 2 years. But it depends on the work condition and maintenance.
