Hydraulic Hose SAE 100 R5
Hydraulic Hose SAE 100 R5
Hydraulic Hose SAE 100 R5 has a single layer fibre reinforce. While it makes the hose more flexible and pressure rsistant. It can transfer hydraulic fluids like lubricant. It can also transfer water and air in the vehicle engine system.

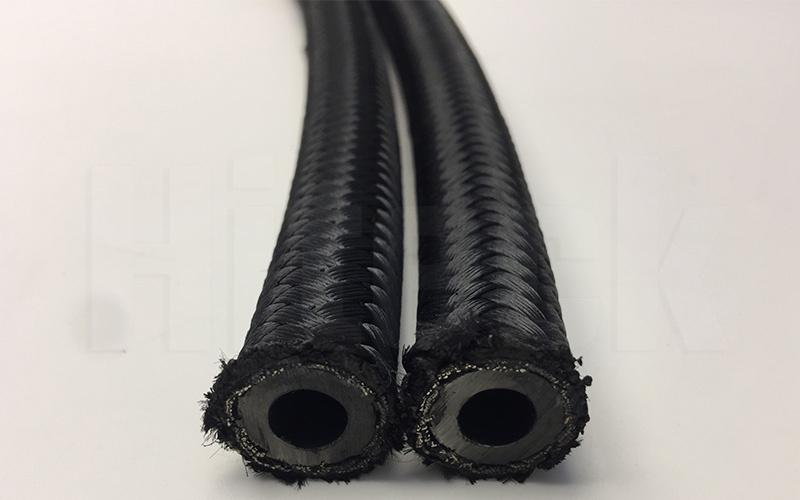

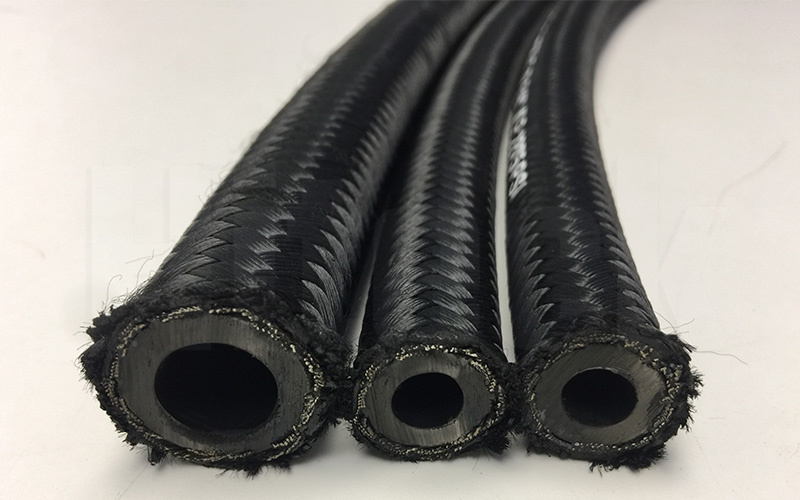

Hydraulic Hose SAE 100 R5 Details
Tube: Black, synthetic rubber designed for resistant oil.
Reinforcement: a single wire braid reinforcement
Cover: fiber braided
Temperature Range: -40℉ to +212℉ (-40℃ to +100℃)
Products Application:
Hydraulic hose SAE 100 R5 can be used for forklift, hydraulic engine, oilfield extraction machinery, mine/road/construction machinery and so on.

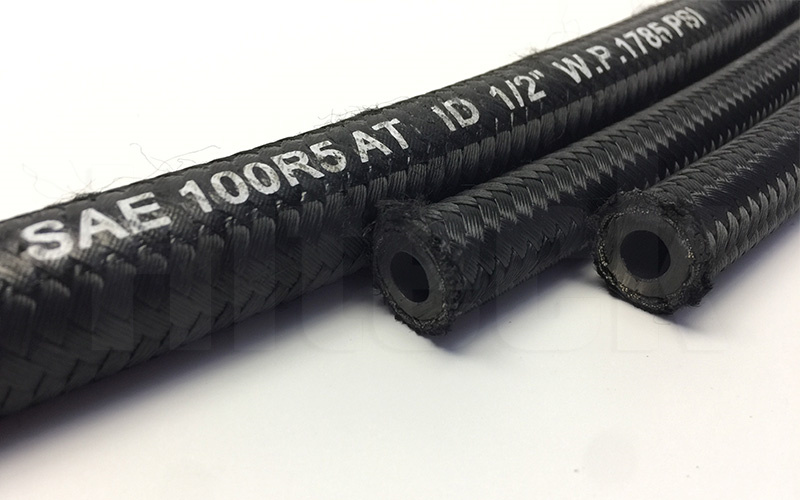

Hydraulic Hose SAE 100 R5
SAE 100 R5 steel wire reinforced hydraulic hose is suitable for impacted medium pressure hydraulic petroleum based oils, lubricats, overheat lubricat and water & air piping, such as air brake, power steering, fuel filter, turbocharger and oil cylinder of heavy commercial vehicles. R5 hose is composed of three parts: tube, reinforcement and cover. The tube is made from black synthetic rubber,which is resistant to oils and heat. The reinforcement is made from one layer of high tensile braided steel wire, making the hose have solid structure. The cover is made from braided fiber, making the R5 hydraulic hose resistant to weather and ozone. Inquiry Now!
Hydraulic Hose SAE 100 R5 Specification
| Metric Size | Inch Size | SAE Dash Size | ID | OD | WP | BP | BR | |||
| mm | mm | mm | mm | |||||||
| mm | inch | dash | min | max | min | max | mpa | psi | mpa | mm |
| 5 | 3/16 | 03 | 4.8 | 5.5 | 12.7 | 13.7 | 21.0 | 3050 | 84.0 | 75 |
| 6.4 | 1/4 | 04 | 6.4 | 7.2 | 14.3 | 15.3 | 21.0 | 3050 | 84.0 | 85 |
| 8 | 5/16 | 05 | 7.9 | 8.7 | 16.7 | 17.6 | 15.7 | 2280 | 62.8 | 100 |
| 11 | 13/32 | 06 | 10.3 | 11.1 | 18.9 | 20.0 | 14.0 | 2030 | 56.0 | 115 |
| 12.5 | 1/2 | 08 | 12.7 | 13.7 | 22.8 | 24.0 | 12.2 | 1770 | 48.8 | 140 |
| 16 | 5/8 | 10 | 15.9 | 17.0 | 26.8 | 28.0 | 10.5 | 1520 | 42.0 | 165 |
| 22 | 7/8 | 14 | 22.2 | 23.3 | 30.6 | 32.2 | 5.6 | 810 | 22.4 | 185 |
| 29 | 1-1/8 | 18 | 28.6 | 29.8 | 37.3 | 38.9 | 4.3 | 620 | 17.2 | 230 |
| 35 | 1-3/8 | 22 | 34.9 | 36.1 | 43.7 | 45.2 | 3.5 | 510 | 14.0 | 265 |
| 46 | 1-13/16 | 29 | 46.0 | 47.2 | 55.2 | 57.6 | 2.4 | 350 | 9.6 | 335 |
| 60 | 2-3/8 | 38 | 60.3 | 61.9 | 71.8 | 74.2 | 2.4 | 350 | 9.6 | 610 |
| 76 | 3 | 48 | 76.2 | 77.8 | 89.3 | 91.7 | 1.4 | 200 | 5.6 | 840 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
What is a hydraulic hose SAE 100 r5?
It’s a high pressure resistant hose with a single layer of wire braid. It is to transfer hydrualic oils in the hydraulic systems.
What's the key feature of such hose?
The most obvious feature is that the hose has a textile cover. While it can protect the reinforece from over wear and outer impact.
Which size of the hose is available?
We offer you custom service. That means you can ask for any size of such hose. But the most common size is 3/16” to 2”.
