Hydraulic Test Hose

Pressure Test Hose

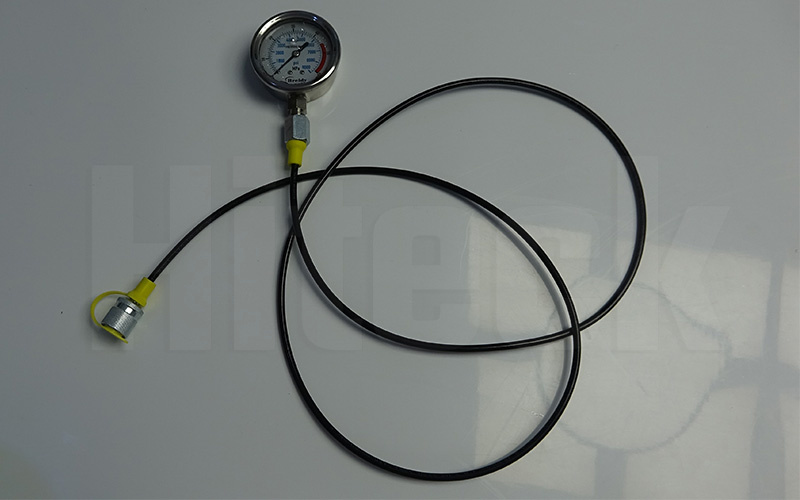

Micro-Pressure Testing Hose is used as connecting lines between the high pressure system unit and the measuring instruments, both for permanent connections and sporadic checks.

Micro-Pressure Testing Hose is also used as connection elements in micro hydraulic systems. These hoses are equally used for venting jobs (avoiding external leaks) and for the extraction of fluid samples directly from actuator connection lines.

Micro-Pressure Testing Hose Structure:

Tube: PA
Cover: PA or PU
Reinforce: Polyester Fiber or aramid fibre.

Micro-Pressure Testing Hose Application:

the nominal diameter of miniature high-pressure hose series HF are 2mm and 3mm. With a maximum working pressure 63Mpa, the miniature high-pressure hose is used in hydraulic systems for testing pressure and conducting the fluid medium. The miniature high-pressure hose assembly series HF is used in conjunction with the couplings.

Temperature: -40℃ (-104 ℉) to +121℃ (+250 ℉)

Pressure Test Hose Specification

	4	M16×2	2		2-970-04-02-001-CF	Connector for test coupling metal cap type B(round) incl. ferrule*
	10	M16×1.5	2		2-970-10-02-001
	12	S12×1.5	2		2-970-12-02-001-CF

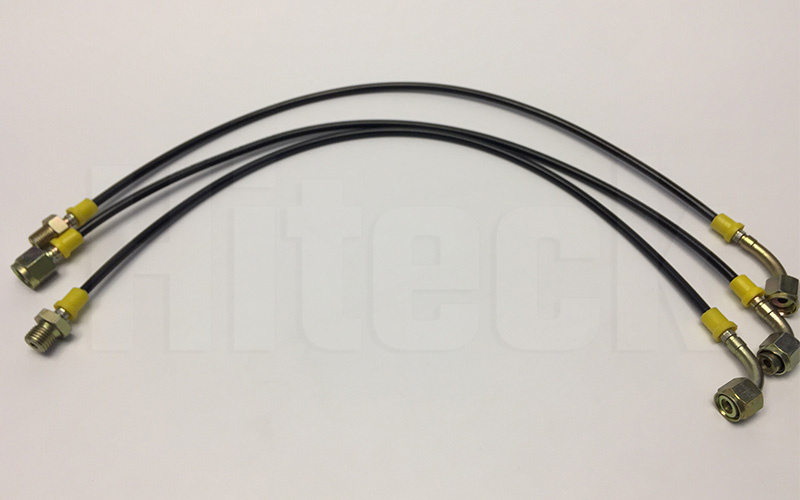

	50	M16×2	2		2-970-50-02-001-CF	Connector for test coupling metal cap type B(round) 90° elbow incl. ferrule*
	61	M16×1.5	2		2-970-51-02-001
	57	S12×1.5	2		2-970-57-02-001-CF
	2	G 1/4	17	2	2-970-02-02-004-CF	pressure gauge connector with whitworth-thread sealing to pressure gauge by o-ring incl.ferrule
	25	G 1/2	27	2	2-970-25-02-001-CF
	58	G 1/4	17	2	2-970-58-02-001-CF	pressure gauge connector with whitworth-thread sealing to pressure gauge by o-ring 90° elbow incl.ferrule
	54	G 1/2	27	2	2-970-54-02-001-CF
	26	1/4 NPT	17	2	2-970-26-00-001-CF	pressure gauge connector with NPT-thread incl.ferrule
	27	1/2 NPT	27	2	2-970-27-00-001-CF
	19	M12×1.5	6L	2	2-970-19-02-001-CF	seal cone with o-ring and swivel nut for 24°cone fitting(DKO) incl.ferrule
	20	M14×1.5	6S	2	2-970-20-02-001-CF
	21	M14×1.5	8L	2	2-970-21-02-001-CF
	22	M16×1.5	8S	2	2-970-22-02-001-CF
	23	M16×1.5	10L	2	2-970-23-02-001-CF
	24	M18×1.5	10S	2	2-970-24-02-001-CF
	60	G 1/8	14	2	2-970-60-02-001-CF	connector with 24° cone(DKR) acc. BS5200 incl.ferrule
	40	G 1/4	17	2	2-970-40-02-001-CF

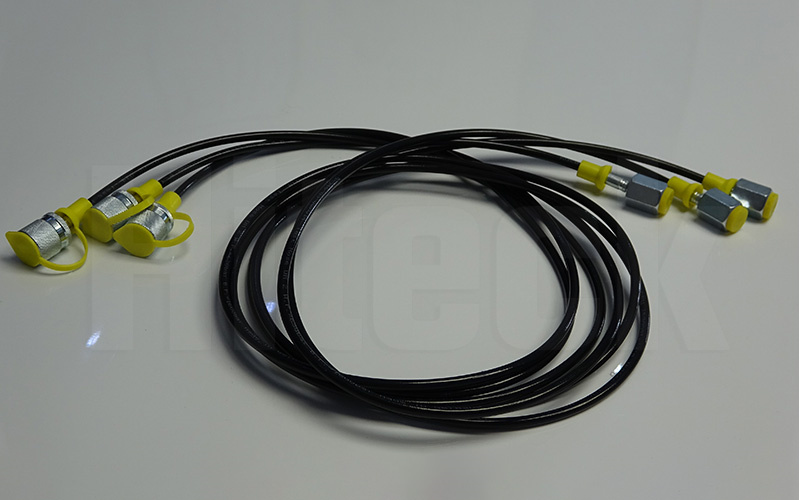

Pressure Test Hose
