LPG Hose
LPG Hose

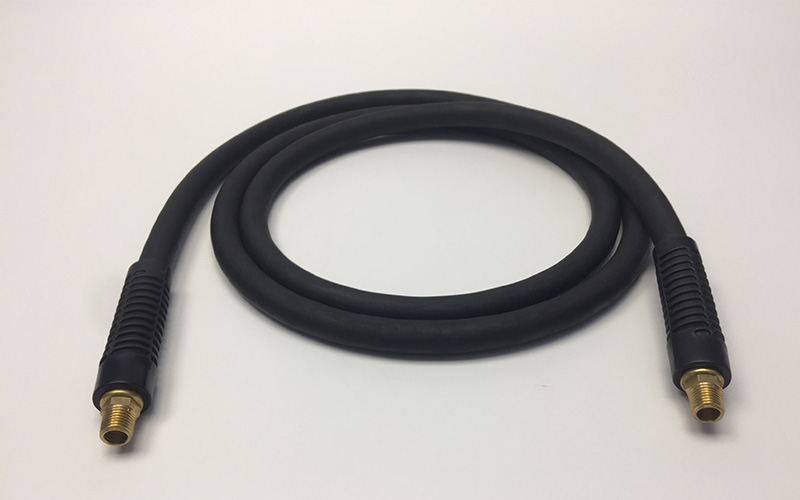

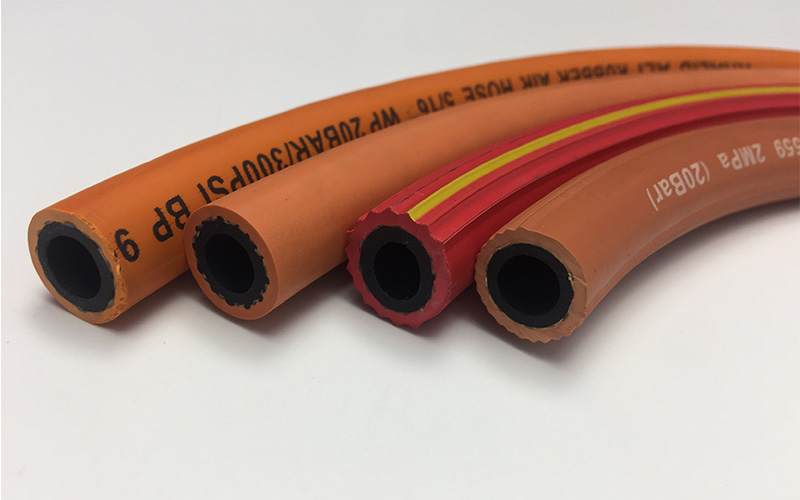

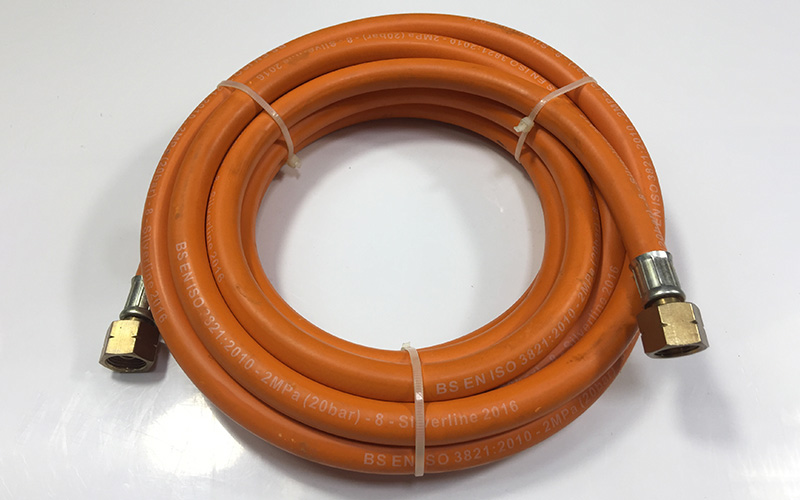

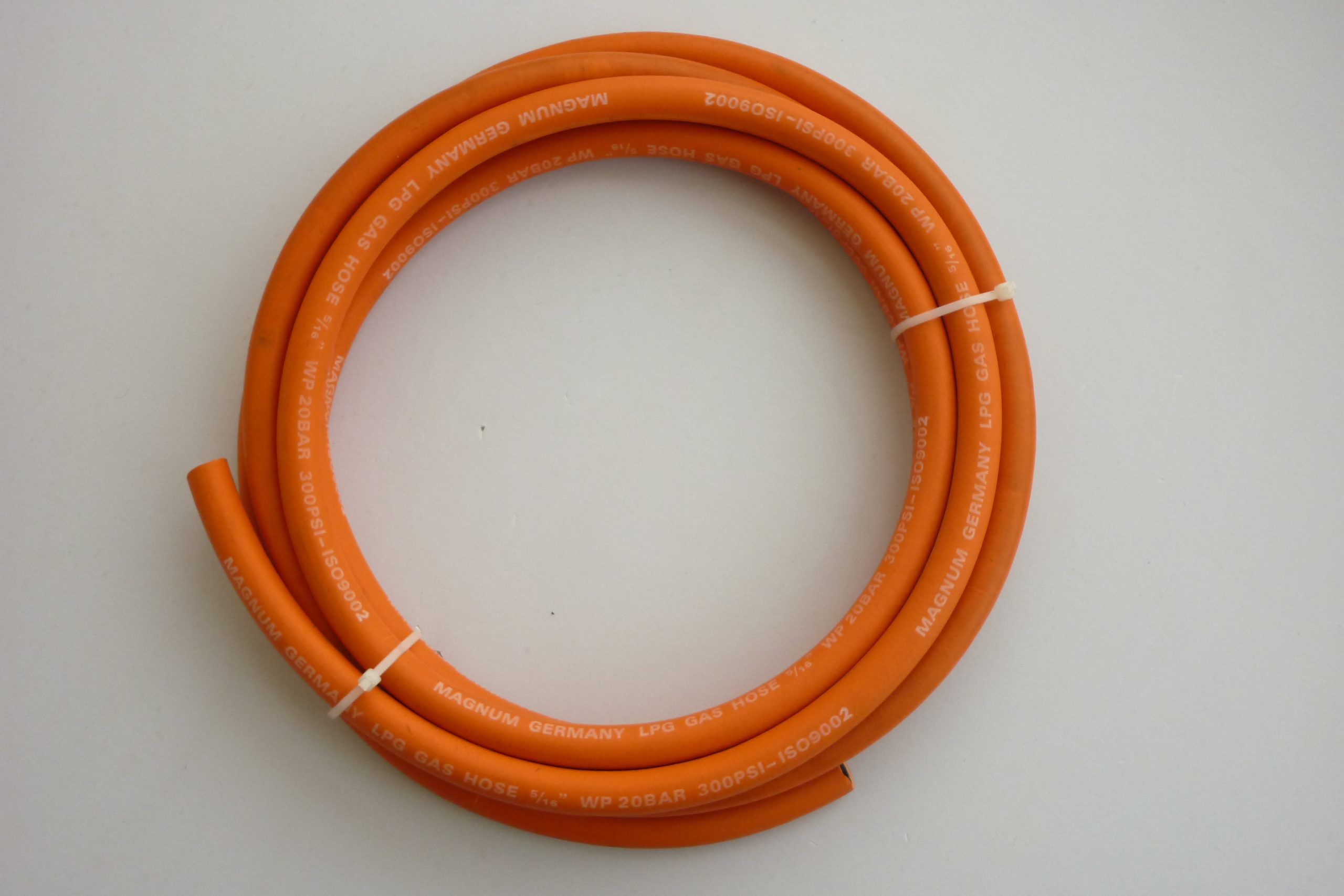

LPG Hose is a flexible tube designed to transfer liquefied petroleum gas from one location to another. Such hose is used in a variety of apps, such as for connecting LPG cylinders to gas stoves or heaters, and for filling LPG tanks in vehicles.
Flexible LPG Gas Hose Details
Inner tube: Black, smooth and conductive NBR.
Reinforcement: high strength synthetic plies with steel wire spiral
Cover: black, smooth, pin pricked, fire proof and antistatic (R<106 Ohm/m), cloth impression CR, resistant to oils, abrasion and weather
Application: Suction and delivery of LPG Temperature: -22°F to +158°F
LPG Hose
Tube: Black, smooth NBR rubber compound. Conductive
Reinforcement: High strength synthetic plies
Cover: Black, smooth, pin pricked, fire proof and antistatic (R<106Ohm/m), cloth impression CR rubber compound, resistant to oils, abrasion and weather
Application: Delivery hose for LPG
Temperature: -22°F to +158°F
Specifications: EN1762
LPG Hose Specification
| ID | OD | WP | BP | BR | Vacuum | L | |||
| inch | mm | mm | bar | psi | bar | psi | mm | bar | m |
| 1/2 | 13 | 23 | 25 | 375 | 100 | 1500 | 55 | 0.9 | 40/61 |
| 5/8 | 16 | 26 | 25 | 375 | 100 | 1500 | 75 | 0.9 | 40/61 |
| 3/4 | 19 | 31 | 25 | 375 | 100 | 1500 | 100 | 0.9 | 40/61 |
| 1 | 25 | 38 | 25 | 375 | 100 | 1500 | 140 | 0.9 | 40/61 |
| 1.1/4 | 32 | 45 | 25 | 375 | 100 | 1500 | 190 | 0.9 | 40/61 |
| 1.1/2 | 38 | 52 | 25 | 375 | 100 | 1500 | 200 | 0.9 | 40/61 |
| 2 | 51 | 67 | 25 | 375 | 100 | 1500 | 280 | 0.9 | 40/61 |
| 2.1/2 | 63.5 | 81 | 25 | 375 | 100 | 1500 | 380 | 0.9 | 40/61 |
| 3 | 76 | 94 | 25 | 375 | 100 | 1500 | 460 | 0.9 | 40/61 |
| 4 | 102 | 120 | 25 | 375 | 100 | 1500 | 625 | 0.9 | 40/61 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
What is an LPG hose?
An LPG hose is a type of hose that is designed to transport liquefied petroleum gas (LPG) from a storage tank to an appliance or heating system.
What types of LPG can LPG hose be used for?
LPG hose can be used for a variety of LPG gases, including propane, butane, and a mixture of the two.
How should LPG hose be cleaned?
LPG hose should be cleaned using a mild detergent and warm water. It should be rinsed thoroughly and hung up to dry before being stored. Do not use harsh chemicals or abrasives to clean LPG hose, as this can damage the material.
