Oilfield Frac Hose
Oilfield Frac Hose

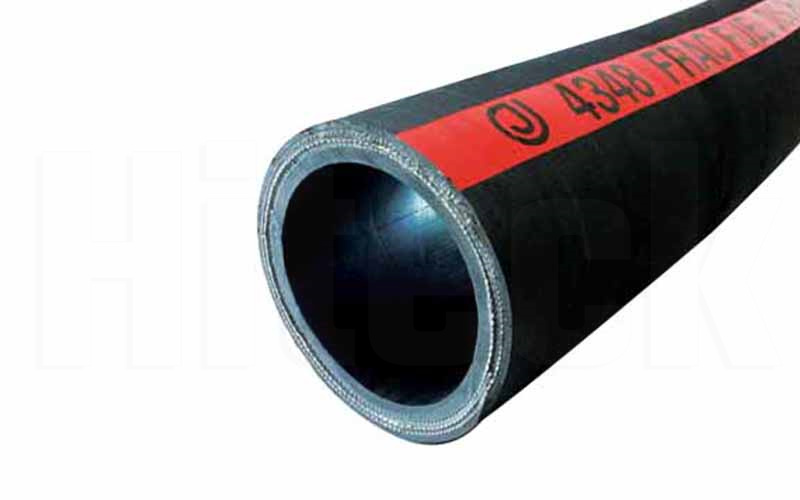

Oilfield Frac Hose is made from oil resistant nitrile rubber. While the reinforce is 6 plys of high strength fibre and steel wire. In order to avoid the serious problem caused by static, there is an antistatic wire inside the hose.
Frac Hose Details
Tube: Black nitrile rubber, smooth
Reinforcement: 6 plies high tensile fabric, helix steel wire skeleton with anti-static wire
Cover: weather and abrasion resistant synthetic rubber.
Fracking hose is to transfer types of hydraulic fracking fluids from tank trucks. And also designed for the demands of high working pressures of hydraulic fracturing operations.
Oilfield Frac Hose
Frack Oilfield Fuel Discharge Hose is specifically ideal for constant use in the transfer of alternative fuels such as bio-diesel, bio-diesel blend, ethanol and ethanol blend. It can also transfer gasoline, diesel, oil and other petroleum products. It is ideal for tank truck, terminal loading and in-plant operations.
High Pressure Frac Hose Application:
Designed to transfer types of hydraulic fracking fluids from tank trucks. And also designed for the demands of high working pressures of hydraulic fracturing operations.
Temperature: -32°C to +82°C (-90°F to +180°F).
Frac Hose Features:
1.Weather and abrasion resistant cover
2.Designed for aromatic content up to 50%
3.Heavy duty construstion for 400 psi applicaiton
Specification
| ID | OD | WP | BR | L | ||||
| inch | mm | mm | bar | psi | inch | mm | m | ft |
| 3 | 76 | 94 | 27.6 | 400 | 18 | 460 | 61 | 200 |
| 4 | 102 | 124 | 27.6 | 400 | 24 | 600 | 61 | 200 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
What is a frac hose?
It is a specialized high-pressure hose used in hydraulic fracturing operations in the oil and gas industry. It is designed to handle the high-pressure flow of fluids, such as water, chemicals, and proppants, during the fracking process.
What is the purpose of such hose?
The primary purpose of the hose is to transport fluids under high pressure from the fracking equipment to the wellhead. It connects the fracking pumps to the wellhead and delivers the fluids into the wellbore to create fractures in the rock formation and release oil or gas.
How is it different from a regular hose?
Compared to regular hoses, frac hoses can handle significantly higher pressures. They have a thicker wall construction and stronger reinforcement to withstand the extreme pressure conditions during fracking. Frac hoses also have specialized end fittings to connect to the fracking equipment and wellhead.
