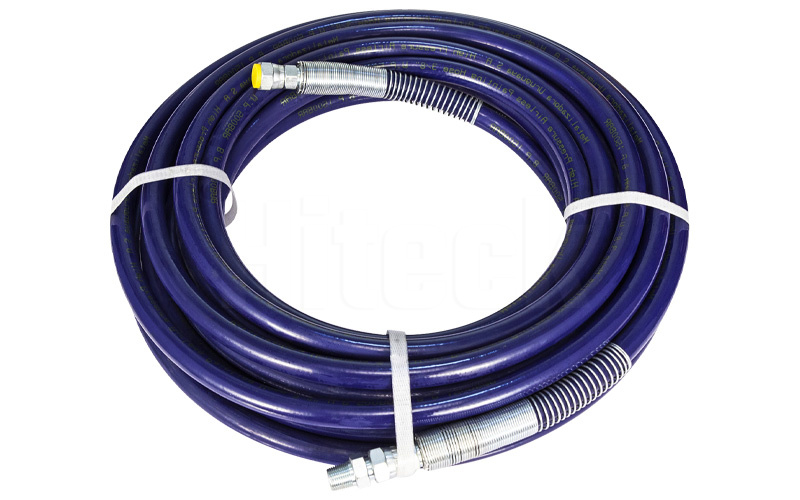

Paint Spray Hose
Paint Spray Hose
Paint Spray Hose adopts nylon as the raw material of the inner tube. Then reinforced with multi layers of high tensile strength yarn or steel wire. While it can greatly increase the pressure resistance.

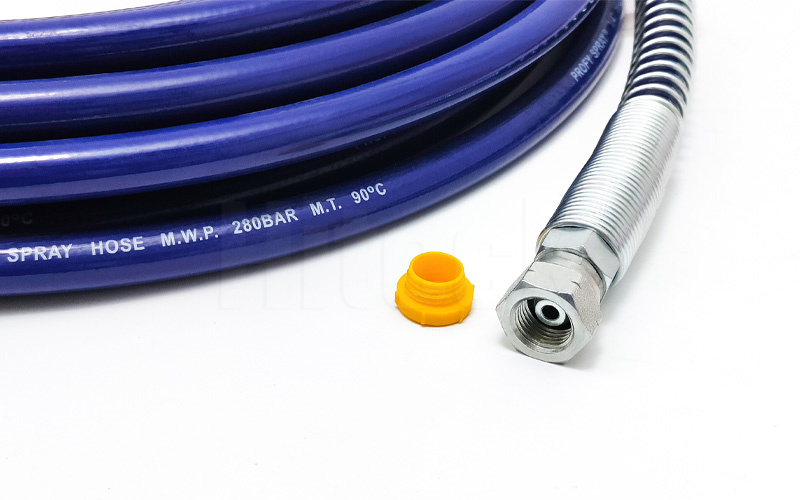

Spray Gun Hose Details
Inner tube: internal core is polyamide
Reinforcement: Multi plies of high tensile steel wires braid or polyester yarn braid
Cover: PU, blue, black, red or grey
Application: petroleum and water based hydraulic fluids
Temperature range: -40℃ (-104 ℉ ) to +100℃ (+212 ℉)
Size: 1/4″ to 3/8″

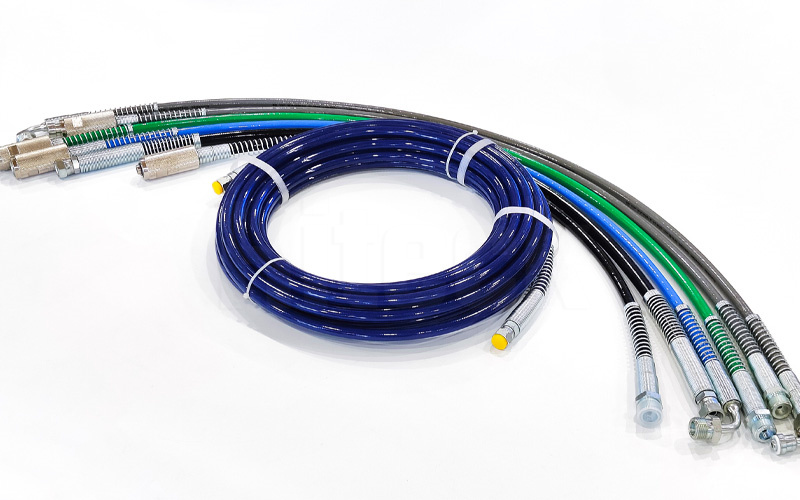

Paint Spray Hose
Textile braided paint sprayer hose has excellent lay flat features and extremely high shock absorbing and volumetric expansion capabilities. Wire braid gives the high pressure spray gun hose great strength and ensures 100% electrical conductivity throughout the spray hose. Each of our high pressure flexible airless sprayer hose assures compatibility with all finishing equipment sprayers. Higher burst pressures allow you to safely work within the surface treatment industry at recommended working pressures.
Paint Spray Hose Features:
1.High abrasion resistance cover
2.High pressrue Max W.P.50Mpa
3.Chemical and solvents resistant
4.Seamless nylon inner core is compatible with most paints, coatings and solvents.
5.PU cover provides super abrasion resistance.
6.Special construction keeps the hose lightweight and flexible.
7.A special static drain element dissipates static charge.
8.Date coding on the coupling provides traceability.
9.Available in 3/16″, 1/4″ and 3/8″ with working pressure to 3500 PSI
Temperature: -40℃ to +100℃ (-72 °F to +212 °F)
Paint Spray Hose Specification
| ID | OD | WP | BP | BR | ||||
| inch | mm | inch | mm | mpa | psi | mpa | psi | mm |
| 1/4 | 6.4 | 0.49 | 12.5 | 22.7 | 3292 | 68.1 | 9874.5 | 30 |
| 1/4 | 6.4 | 0.55 | 14.0 | 40 | 5800 | 120 | 17400 | 55 |
| 1/4 | 6.4 | 0.61 | 15.5 | 50 | 7250 | 150 | 21750 | 70 |
| 5/16 | 8.0 | 0.53 | 13.5 | 22.7 | 3292 | 68.1 | 9874.5 | 75 |
| 5/16 | 8.0 | 0.59 | 15.0 | 40 | 5800 | 120 | 17400 | 90 |
| 5/16 | 8.0 | 0.65 | 16.5 | 50 | 7250 | 150 | 21750 | 105 |
| 3/8 | 9.5 | 0.62 | 16.0 | 22.7 | 3292 | 68.1 | 9874.5 | 80 |
| 3/8 | 9.5 | 0.75 | 19.1 | 40 | 5800 | 120 | 17400 | 127 |
| 3/8 | 9.5 | 0.85 | 21.5 | 50 | 7250 | 150 | 21750 | 135 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
How do I determine the right hose diameter for my paint sprayer?
The hose diameter depends on the paint sprayer’s specifications. Typically, larger paint sprayers with higher flow rates require hoses with larger diameters to accommodate the volume of paint being delivered. Consult the paint sprayer’s manual or manufacturer’s recommendations to determine the appropriate hose diameter.
What is the significance of the pressure rating for a paint spray hose?
The pressure rating of a paint spray hose indicates the maximum pressure it can withstand without failure. It is crucial to match the pressure rating of the hose with the maximum operating pressure of the paint sprayer. Using a hose with a lower pressure rating than the sprayer’s output may result in leaks, bursts, or reduced performance.
Can paint spray hoses be used with different types of paints and coatings?
Yes, paint spray hoses are designed to be compatible with a wide range of paints, coatings, and solvents. However, it’s essential to check the hose’s specifications and ensure that it is compatible with the specific paint or coating you intend to use. Some specialty coatings may require hoses with specific material constructions or resistance properties.
