PVC Steel Wire Fibre Hose
PVC Steel Wire Fibre Hose

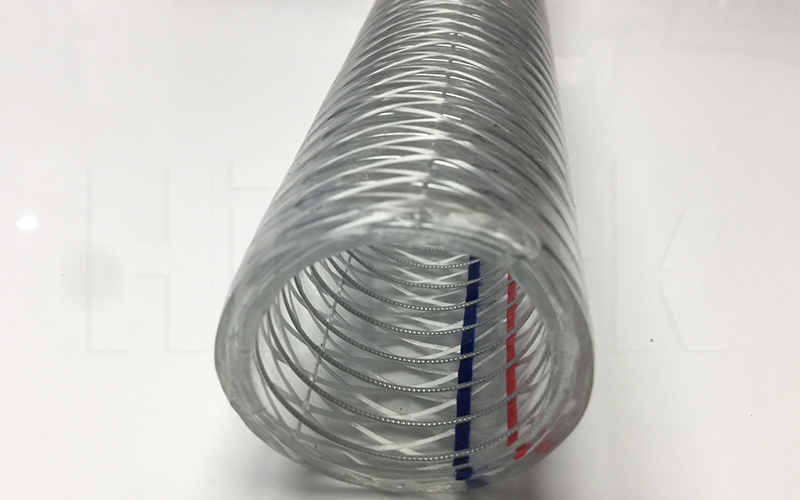

PVC Steel Wire Fibre Hose has 2 layers of reinforce. One is steel wire and the other one is high tensile strength polyster braid. It has both excellent pressure resistance and flexibility. Thus it’s ideal for heavy duty use in industry, mining, construction and civil use.
Details
Tube and Cover: transparent PVC
Reinforcement: steel wire spiral & polyester fibre braid
Temperature: -10℃ (-50℉) to 65℃ (+150℉)
Advantage: Anti aging, long working life, non toxic, odorless, light in weight and flexible
Size: 1″ to 3″
PVC Steel Wire Fibre Hose
Such PVC Braided Hose adopts advanced production technology, embedded steel skeleton, plus layer with high quality fiber. At the same time, it can bear both positive and negative pressure. Thus it can keep its original shape in the process of discharge and suction.

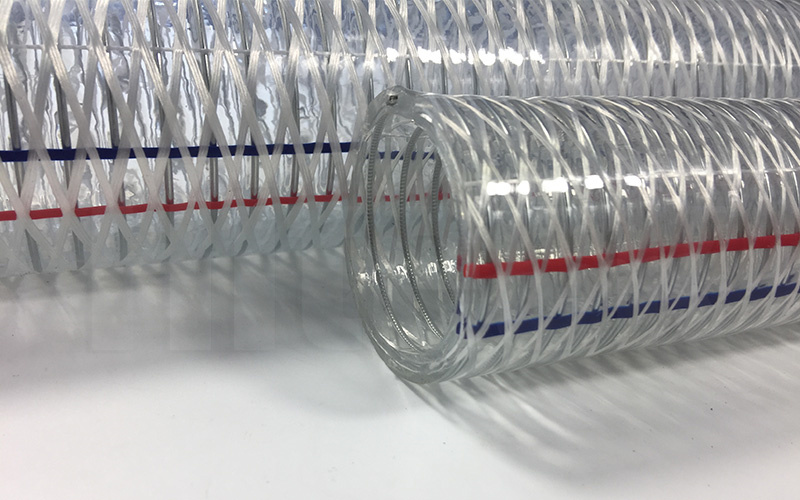

Hiteck offers you custom service. While that means all the factors such as size, length and package can be custom. In addition, we can add colorful mark line on the pipe surface, which makes it more beautiful.
PVC Reinforced Hose Structure:
Tube and cover: transparent PVC
Reinforcement: steel wire spiral & polyester fibre braid
PVC Steel Wire Fibre Hose Application:
The PVC steel wire spring and fibre composite hose serves for suction and discharge of water, oil and powdery articles. While it widely serves in industry, agriculture, engineering, food and sanitation lines. But the hose used for food is made of special food grade pvc. Thus it is non-toxic, light and odorless.
The food grade clear braided PVC hose can convey milk, beverage, distilled liquor, beer, jam and other foods.
We can also insert the cooper wire into hose. Thus the hose can avoid the block due to static. Besides, it can protect users from getting electric shock.
PVC Steel Wire Fibre Hose Features:
●Light in weight, flexible with small bend radius.
●Durable against the external impact, chemical and weather
●Transparent, easy to check the contents.
●Anti-UV, anti-aging with long working life
●Heavy duty, higher working pressure
Temperature: -10℃ (-50℉) to 65℃ (+150℉)
Specification
| ID | OD | L | WP | BP | Weight | |||
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
| 3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
| 1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
| 1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
| 1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
| 1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
| 1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
| 1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
| 1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
| 1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
| 1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
| 1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
| 5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
| 5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
| 5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
| 5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
| 5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
| 5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
| 5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
| 5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
| 3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
| 3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
| 3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
| 1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
What are the common applications of PVC fiber steel wire hoses?
PVC fiber steel wire hoses are widely used in various industries such as agriculture, construction, mining and industrial fluid transfer. They are commonly used to convey water, oil, gas and other fluids, as well as for suction and discharge of solids and liquids.
Which color is the hose?
If you don’t have special demand, the color will be clear. But other colors are available such as green and semi-transparent.
What's the length of the hose?
In general, the hose is 15, 20, 30, 50 and 100 meters for one roll. But other lengths are also available on your demand.
