PVC Steel Wire Hose
PVC Steel Wire Hose

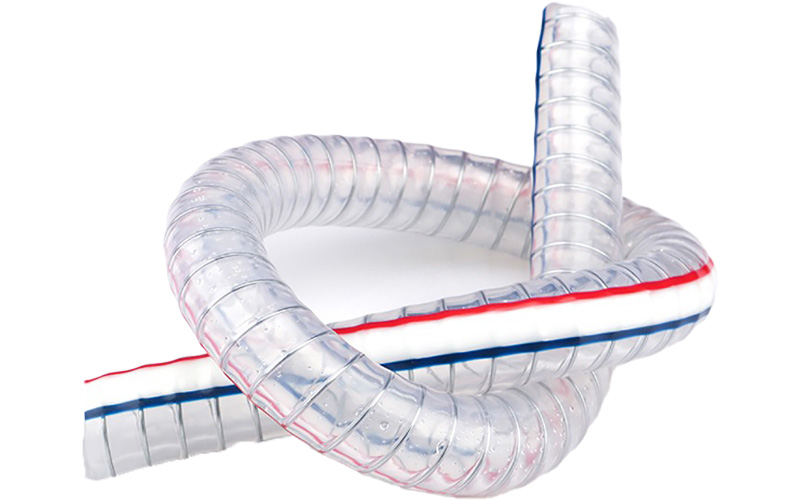

PVC Steel Wire Hose is a kind of transparent PVC hose. But it has a steel wire reinforce between the 2 layers of PVC. This structure makes the hose more strong and it can bear higher pressure. With positive and negative pressure resistance, it is ideal for both suction and discharge purpose.
Details
Tube and Cover: PVC, blue, orange, red.
Reinforcement: steel wire spiral
Temperature: -10℃(-50℉) to 65℃(+150℉)
Advantage: Anti aging, long working life
Non toxic, Without odor, lightweight and flexible
Size: 1/4 “to 8”
PVC Steel Wire Spring Hose is made from 100% pure PVC and compound with galvanized steel wire reinforcement. This structure makes it strong. According to the test, the hose will not distort even an adult steps on. Besides, it can resist both negative pressure and negative pressure. Thus it is ideal for both suction and discharge work. At the same time, it has excellent abrasion resistance.
As for the medium, it can transport gravel, powder, liquid and light chemical. When trasnporting oil and chemical, there will be static causing serious problems. On such occasion, we can insert a copper wire inside the hose to eliminate the static. Then the transportation can be safe and reliable.

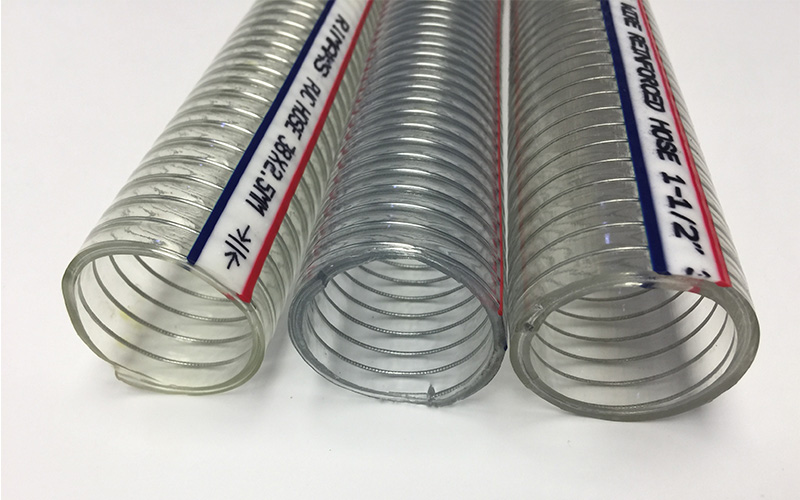

PVC Steel Wire Hose Structure:
Tube and cover: transparent PVC
Reinforcement: steel wire spiral
PVC Steel Wire Spring Hose
Steel Wire Reinforced PVC Flexible Pipe Application:
The PVC steel wire spring hose hose is widely used for suction and discharge of water, oil and powdery articles in industry, agriculture, engineering, food processing and sanitation lines.
There are two kinds of PVC steel wire hose, one is for industrial use and the other one is for food processing. Industrial hose widely serves in mining, construction, irrigation, aquaculture and many other apps. While food grade PVC steel wire hose is mainly for food transportation. The food grade PVC steel wire spring hose can convey milk, beverage, distilled liquor, beer, jam and other foods.
PVC Steel Wire Hose Features:
Lightweight, flexible with small bending radius.
Durable against the external impact, chemical and weather
Transparent, easy to check the contents.
Anti-UV, anti-aginglong working life
Temperature: -10℃(-50℉) to 65℃(+150℉)
PVC Steel Wire Hose Specification
| ID | OD | Vacuum | WP | BP | L | ||||
| inch | mm | mm | psi | bar | psi | bar | psi | bar | m/roll |
| 1/4" | 6 | 11 | -15 | -1 | 160 | 11 | 479 | 33 | 100 |
| 5/16" | 8 | 14 | -15 | -1 | 160 | 11 | 479 | 33 | 100 |
| 3/8" | 9 | 14 | -15 | -1 | 145 | 10 | 435 | 30 | 100 |
| 10 | 15 | -15 | -1 | 145 | 10 | 435 | 30 | 100 | |
| 9 | 15 | -15 | -1 | 160 | 11 | 479 | 33 | 100 | |
| 10 | 16 | -15 | -1 | 160 | 11 | 479 | 33 | 100 | |
| 1/2" | 12 | 17 | -15 | -1 | 131 | 9 | 435 | 30 | 100 |
| 12 | 18 | -15 | -1 | 145 | 10 | 435 | 30 | 100 | |
| 5/8" | 15 | 22 | -15 | -1 | 145 | 10 | 435 | 30 | 100 |
| 15 | 21 | -15 | -1 | 131 | 9 | 435 | 30 | 100 | |
| 16 | 20 | -15 | -1 | 116 | 8 | 290 | 20 | 100 | |
| 16 | 23 | -15 | -1 | 131 | 9 | 435 | 30 | 100 | |
| 3/4" | 19 | 26 | -15 | -1 | 145 | 10 | 435 | 30 | 50 |
| 19 | 25.5 | -15 | -1 | 116 | 8 | 290 | 20 | 50 | |
| 20 | 26 | -15 | -1 | 116 | 8 | 290 | 20 | 50 | |
| 20 | 24.5 | -15 | -1 | 116 | 8 | 290 | 20 | 50 | |
| 7/8" | 22 | 30 | -15 | -1 | 116 | 8 | 290 | 20 | 50 |
| 22 | 27 | -15 | -1 | 116 | 8 | 290 | 20 | 50 | |
| 1" | 25 | 33 | -15 | -1 | 145 | 10 | 363 | 25 | 50 |
| 25 | 29 | -15 | -1 | 102 | 7 | 290 | 20 | 50 | |
| 25 | 30 | -15 | -1 | 102 | 7 | 290 | 20 | 50 | |
| 25 | 32 | -15 | -1 | 102 | 7 | 290 | 20 | 50 | |
| 1-1/4" | 32 | 41 | -15 | -1 | 102 | 7 | 290 | 20 | 40 |
| 32 | 36 | -15 | -1 | 73 | 5 | 276 | 19 | 50 | |
| 32 | 38.6 | -15 | -1 | 73 | 5 | 276 | 19 | 50 | |
| 32 | 41 | -15 | -1 | 87 | 6 | 290 | 20 | 50 | |
| 32 | 41.6 | -15 | -1 | 87 | 6 | 290 | 20 | 50 | |
| 1-1/2" | 38 | 48 | -15 | -1 | 87 | 6 | 261 | 18 | 40 |
| 38 | 42.8 | -15 | -1 | 73 | 5 | 232 | 16 | 50 | |
| 38 | 44 | -15 | -1 | 73 | 5 | 232 | 16 | 50 | |
| 38 | 44.6 | -15 | -1 | 73 | 5 | 232 | 16 | 50 | |
| 38 | 45.5 | -15 | -1 | 87 | 6 | 261 | 18 | 50 | |
| 38 | 46.4 | -15 | -1 | 87 | 6 | 261 | 18 | 50 | |
| 1-3/4" | 45 | 56 | -15 | -1 | 87 | 6 | 247 | 17 | 40 |
| 45 | 50 | -15 | -1 | 73 | 5 | 232 | 16 | 50 | |
| 45 | 52 | -15 | -1 | 73 | 5 | 232 | 16 | 50 | |
| 45 | 53 | -15 | -1 | 73 | 5 | 232 | 16 | 50 | |
| 1-7/8" | 48 | 59 | -15 | -1 | 73 | 5 | 232 | 16 | 40 |
| 48 | 54.6 | -15 | -1 | 73 | 5 | 218 | 15 | 50 | |
| 48 | 56.4 | -15 | -1 | 73 | 5 | 218 | 15 | 50 | |
| 48 | 58 | -15 | -1 | 73 | 5 | 218 | 15 | 50 | |
| 2" | 50 | 62 | -15 | -1 | 73 | 5 | 232 | 16 | 40 |
| 50 | 55.6 | -15 | -1 | 73 | 5 | 145 | 10 | 50 | |
| 50 | 57.2 | -15 | -1 | 73 | 5 | 203 | 14 | 50 | |
| 50 | 58.2 | -15 | -1 | 73 | 5 | 203 | 14 | 50 | |
| 50 | 60 | -15 | -1 | 73 | 5 | 218 | 15 | 50 | |
| 2-5/46" | 58 | 70 | -15 | -1 | 73 | 5 | 218 | 15 | 40 |
| 2-1/2" | 63 | 80 | -15 | -1 | 73 | 5 | 203 | 14 | 30 |
| 64 | 72.3 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | |
| 64 | 75 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | |
| 64 | 76 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | |
| 64 | 77 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | |
| 3" | 75 | 91 | -15 | -1 | 73 | 5 | 189 | 13 | 30 |
| 75 | 84 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | |
| 75 | 85 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | |
| 75 | 87 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | |
| 75 | 89 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | |
| 3-1/2" | 90 | 108 | -15 | -1 | 58 | 4 | 174 | 12 | 20 |
| 4" | 100 | 118 | -15 | -1 | 44 | 3 | 145 | 10 | 20 |
| 102 | 112 | -15 | -1 | 44 | 3 | 145 | 10 | 30 | |
| 102 | 114 | -15 | -1 | 44 | 3 | 145 | 10 | 30 | |
| 102 | 115 | -15 | -1 | 44 | 3 | 145 | 10 | 30 | |
| 102 | 118 | -15 | -1 | 44 | 3 | 145 | 10 | 30 | |
| 4-3/8" | 110 | 123 | -15 | -1 | 44 | 3 | 145 | 10 | 20 |
| 4-5/8" | 117 | 133 | -15 | -1 | 44 | 3 | 145 | 10 | 20 |
| 5" | 127 | 143 | -15 | -1 | 44 | 3 | 145 | 10 | 20 |
| 5-1/2" | 140 | 156 | -15 | -1 | 44 | 3 | 145 | 10 | 10 |
| 6" | 152 | 170 | -15 | -1 | 44 | 3 | 145 | 10 | 10 |
| 6-5/16" | 160 | 176 | -15 | -1 | 44 | 3 | 145 | 10 | 10 |
| 7" | 180 | 196 | -15 | -1 | 44 | 3 | 145 | 10 | 10 |
| 8" | 200 | 224 | -15 | -1 | 44 | 3 | 145 | 10 | 10 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
What is a PVC steel wire hose?
A PVC steel wire hose is a type of flexible hose made of PVC material reinforced with steel wire helix, providing extra strength and durability. It is often used for suction and delivery of water, oil, and chemical solutions.
What are the advantages of PVC steel wire hose?
- Resistance to abrasion, corrosion, and weather
- High flexibility and excellent bending radius
- Non-toxic, odorless, and transparent
- Easy to handle and install
- Low maintenance and long service life
What are the applications of PVC steel wire hose?
- Suction and delivery of water, oil, and chemical solutions
- Dust collection and exhaust systems
- Vacuum cleaning equipment
- Water supply and drainage systems in buildings
- Agricultural irrigation and fertilizer spraying
- Fishery and aquaculture
What are the temperature and pressure limits of PVC steel wire hose?
The temperature and pressure limits of PVC steel wire hose depend on the specific model and size. In general, the temperature range is from -10°C to +65°C, and the pressure range is from 4 to 10 bar.
