PVC Wine Hose
PVC Wine Hose

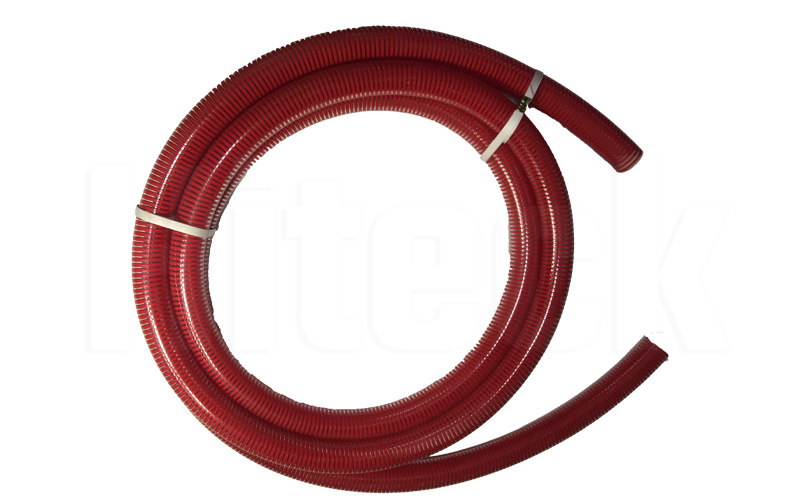

PVC Wine Hose is the hose that specially designed for wine factory. It’s made from food grade PVC and can bear the alcholo. Thus it will no corroded by the wine. While it can transfer wine, must, vinegar and alcholo (within 28%).
Details
Tube and Cover: PVC
Reinforcement: Rigid PVC helix
Temperature: -4˚F (-20℃) to 150˚F (+65℃)
Advantage: Anti aging, long working life
non toxic, odorless, light in weight and flexible
Size: 8″ to 12″
PVC Wine Hose

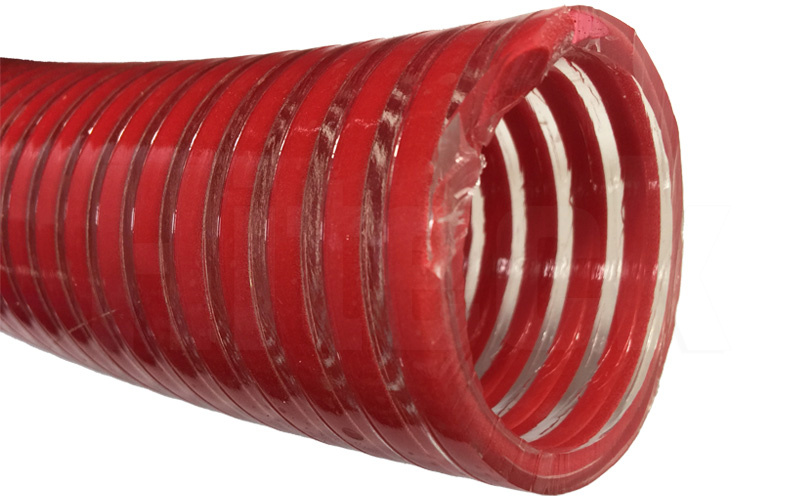

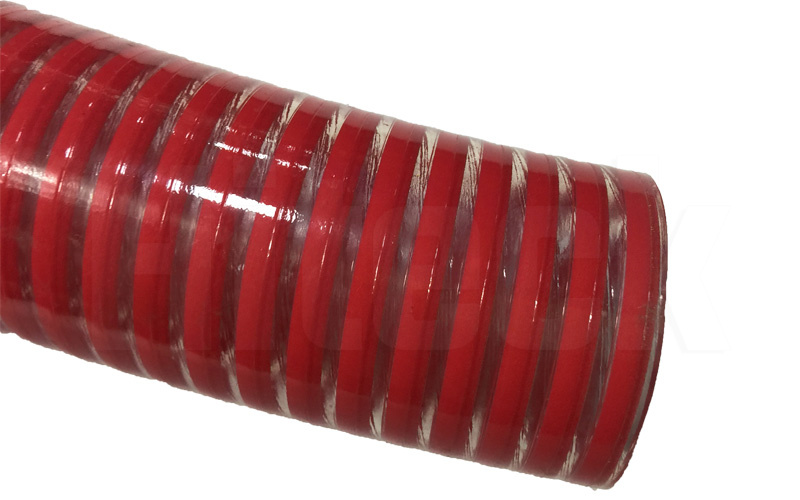

Structure: High quality pvc with rigid pvc helix.
Wine Hose Applications:
● Transfer wines, musts, vinegars, beers and alcohols (up to 28%).
● Pumping by aspiration and impulsion.
Wine Transfer Hose Features:
● Toxic and food use (European Directive 2002/72 / EC and its latest revision 2007/19 / EC)
● Resistant to alcohols and chemicals in general
Made as per UNE-EN-23994/93
● PVC hose with rigid PVC spiral
● Phthalate free as per UNE-EN 1186-9 / 13130-1 and ISO 6401
Temperature: -10℃ (-50 ℉ ) to 65℃ (+150 ℉)
Wine Hose Specification
| I.D | OD | Thickness | W.P(at20˚C) | Vacuum Rat | Bend Radius | Length | ||
| inch | mm | mm | mm | bar | psi | mmHg(68˚F) | mm | m |
| 3/4" | 20±0.5 | 26.0±0.5 | 3.0 | 10.0 | 150 | 750 | 70 | 50 |
| 1" | 25±0.5 | 31.0±0.5 | 3.0 | 9.0 | 135 | 750 | 70 | 50 |
| 1-1/4" | 32±0.5 | 40.0±0.5 | 4.0 | 8.0 | 120 | 750 | 90 | 50 |
| 1-1/2" | 38±0.5 | 47.0±0.5 | 4.5 | 7.0 | 105 | 750 | 110 | 50 |
| 2" | 50±1.0 | 60.0±1.0 | 5.0 | 6.0 | 90 | 750 | 150 | 50 |
| 2-1/2" | 63±1.0 | 73.0±1.0 | 5.0 | 6.0 | 90 | 750 | 180 | 50 |
| 3" | 75±1.0 | 87.0±1.0 | 6.0 | 5.0 | 75 | 750 | 220 | 50 |
| 4" | 100±1.5 | 114.0±1.5 | 7.0 | 5.0 | 75 | 750 | 330 | 50 |
| 5" | 125±1.5 | 141.0±1.5 | 8.0 | 4.0 | 60 | 750 | 500 | 30 |
| 6" | 150±1.5 | 168.0±1.5 | 9.0 | 3.0 | 45 | 750 | 700 | 30 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
What is the purpose of a PVC wine hose?
The primary purpose of a PVC wine hose is to transfer wine or other beverages from one container to another in a safe and hygienic manner, while maintaining the quality and integrity of the product.
Are PVC wine hoses safe for use with food and beverages?
Yes, PVC wine hoses are safe for use with food and beverages, as they are made from non-toxic materials and are designed to meet strict food safety standards.
Can I use a PVC wine hose for other applications besides wine transfer?
PVC wine hoses are designed specifically for use in the wine industry and may not be suitable for other applications. Consult with a professional to determine the appropriate type of hose for your specific needs.
