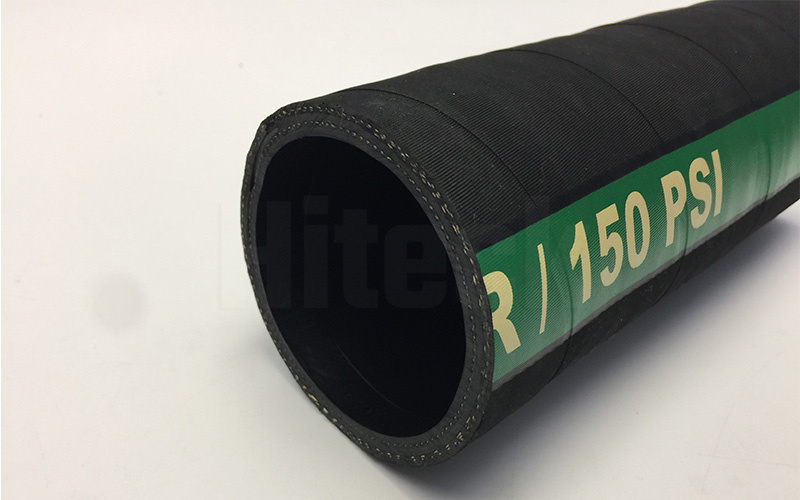

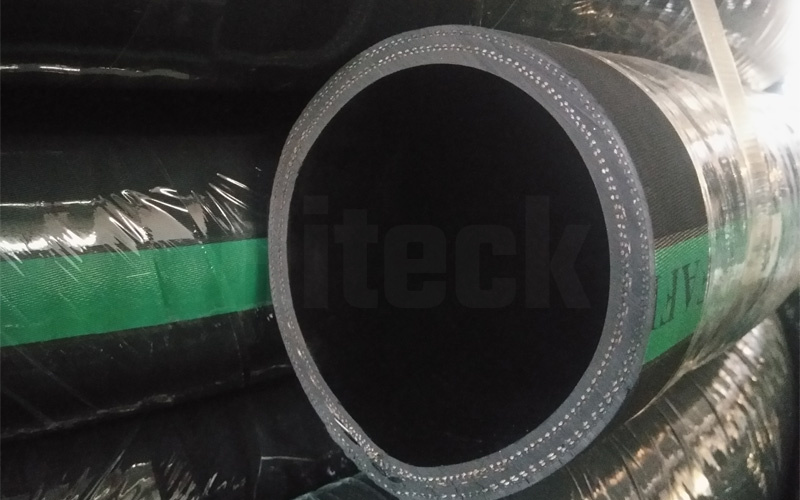

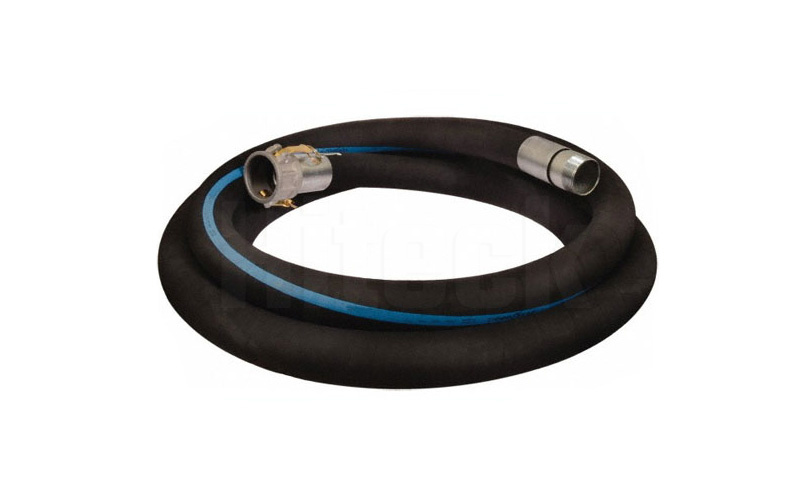

Rubber Water Suction Hose
Rubber Water Suction Hose
Rubber Water Suction Hose is made from a compound of natural rubber and SBR. Whe reinforce is multi layers of fibre with a steel wire. It can bear both positive and negative pressure. Thus it is ideal for water suction and discharge.
Rubber Water Suction Hose Details
Tube: Black, smooth, NR, SBR
Reinforcement: Multi plies of high strength synthetic fibre and helix steel wire
Cover: Black,smooth,cloth impression, SBR
Temperature: -30℃(-22℉) to+80℃ (+176℉)
Rubber Water Suction Hose
Water rubber hose, also named as water suction hose, rubber water hose and water discharge hose, is a type of rubber hose mainly for water transfer and discharge. Water rubber hose pipe can work in both positive pressure and negative pressure. Thus it can suck and discharge industrial water and neutral liquid in normal temperature. It is widely used in mine, factory, agriculture and civil. In addition, it is a good choice to convey water in irrigation. The cover can withstand weather, abrasion and ozone. Besides the industrial water hose, we can also supply PVC Garden Hose and other Water Hoses.
Water hose rubber is a versatile rubber suction and discharge hose with steel wire and textile reinforce. So it is durable with a long service life. Ruber hose for water is suitable for medium and heavy duty discharge work. In order to meet the various needs, we offer you custom service. All the factors sush as size, length, pressure rate can be custom.

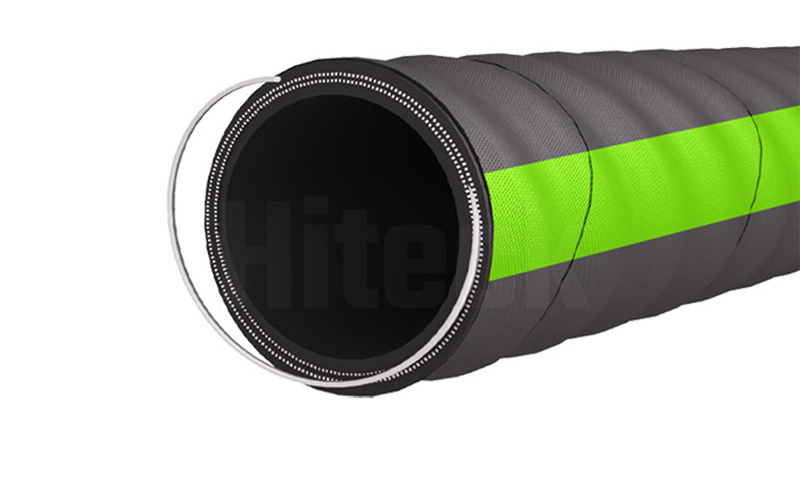

Rubber Water Suction Hose Structure:
Tube: Black, smooth, NR, SBR
Reinforcement: Multi plies of high strength synthetic fibre and helix steel wire
Cover: Black, smooth, cloth impression, SBR
Rubber Water Suction Hose Application:
Industrial high pressure water hose is designed for suction and discharge of water, and non-corrosive fluids used in project sites and light duty industrial applications. High pressure water hose is ideal for rugged and tough conditions.
Temperature: -30℃ (-22℉) to+80℃ (+176℉)
Rubber Water Suction Hose Features:
1.weather and ozone resistant
2.Anti-aging cover compound
3.Flexible and light in weight
150psi Specification
| ID | OD | WP | BP | VACUUM | L | ||||
| inch | mm | mm | bar | psi | bar | psi | bar | m | ft |
| 3/4" | 19.1 | 30 | 10 | 150 | 30 | 450 | 0.8 | 60 | 200 |
| 1" | 25.4 | 36 | 10 | 150 | 30 | 450 | 0.8 | 60 | 200 |
| 1-1/4" | 31.8 | 44 | 10 | 150 | 30 | 450 | 0.8 | 60 | 200 |
| 1-1/2" | 38.1 | 51 | 10 | 150 | 30 | 450 | 0.8 | 60 | 200 |
| 2" | 50.8 | 64 | 10 | 150 | 30 | 450 | 0.8 | 60 | 200 |
| 2-1/2" | 63.5 | 77 | 10 | 150 | 30 | 450 | 0.8 | 60 | 200 |
| 3" | 76.2 | 90 | 10 | 150 | 30 | 450 | 0.8 | 60 | 200 |
| 3-1/2" | 88.9 | 104 | 10 | 150 | 30 | 450 | 0.8 | 60 | 200 |
| 4" | 101.6 | 118 | 10 | 150 | 30 | 450 | 0.8 | 30 | 200 |
| 5" | 127 | 145 | 10 | 150 | 30 | 450 | 0.8 | 30 | 100 |
| 6" | 152.4 | 170 | 10 | 150 | 30 | 450 | 0.8 | 30 | 100 |
| 8" | 203.2 | 224 | 10 | 150 | 30 | 450 | 0.8 | 30 | 100 |
| 10" | 254 | 276 | 10 | 150 | 30 | 450 | 0.8 | 12 | 40 |
| 12" | 304 | 326 | 10 | 150 | 30 | 450 | 0.8 | 12 | 40 |
| 14" | 350 | 378 | 10 | 150 | 30 | 450 | 0.8 | 12 | 40 |
300psi Specification
| ID | OD | WP | BP | L | ||||
| inch | mm | mm | bar | psi | bar | psi | m | ft |
| 3/16" | 4.8 | 12 | 20 | 300 | 60 | 900 | 100 | 330 |
| 1/4" | 6.4 | 13 | 20 | 300 | 60 | 900 | 100 | 330 |
| 5/16" | 7.9 | 15 | 20 | 300 | 60 | 900 | 100 | 330 |
| 3/8" | 9.5 | 16 | 20 | 300 | 60 | 900 | 100 | 330 |
| 1/2" | 12.7 | 22 | 20 | 300 | 60 | 900 | 100 | 330 |
| 5/8" | 15.9 | 26 | 20 | 300 | 60 | 900 | 100 | 330 |
| 3/4" | 19.1 | 29 | 20 | 300 | 60 | 900 | 100 | 330 |
| 1" | 25.4 | 36 | 20 | 300 | 60 | 900 | 100 | 330 |
| 1-1/4" | 31.8 | 44 | 20 | 300 | 51 | 750 | 60 | 200 |
| 1-1/2" | 38.1 | 51 | 20 | 300 | 51 | 750 | 60 | 200 |
| 2" | 50.8 | 65 | 20 | 300 | 51 | 750 | 60 | 200 |
| 2-1/2" | 63.5 | 78 | 20 | 300 | 51 | 750 | 60 | 200 |
| 3" | 76.2 | 91 | 20 | 300 | 51 | 750 | 60 | 200 |
| 3-1/2" | 88.9 | 108 | 20 | 300 | 51 | 750 | 60 | 200 |
| 4" | 101.6 | 120 | 20 | 300 | 51 | 750 | 60 | 200 |
| 5" | 127 | 148 | 20 | 300 | 51 | 750 | 30 | 100 |
| 6" | 152.4 | 173 | 20 | 300 | 51 | 750 | 30 | 100 |
| 8" | 203.2 | 228 | 20 | 300 | 51 | 750 | 30 | 100 |
| 10" | 254 | 280 | 20 | 300 | 51 | 750 | 12 | 40 |
| 12" | 304.8 | 330 | 20 | 300 | 51 | 750 | 12 | 40 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
What is a rubber water suction hose?
The hose is to suck and discharge water or other liquids from one location to another. It is made of flexible rubber material and typically has a helix wire reinforcement to provide additional strength.
What are the common applications of rubber water suction hoses?
Rubber water suction hoses are commonly used in a variety of applications, including irrigation, construction, mining, dewatering, and general pumping operations. They are also often used in industrial and agricultural settings to transfer liquids and slurries.
How do I select the right rubber water suction hose for my needs?
When selecting a rubber water suction hose, it is important to consider factors such as the diameter of the hose, the material it is made from, the maximum pressure and temperature it can handle, and any additional features such as anti-static properties or chemical resistance.
