Silicone Steel Wire Hose
Silicone Steel Wire Hose

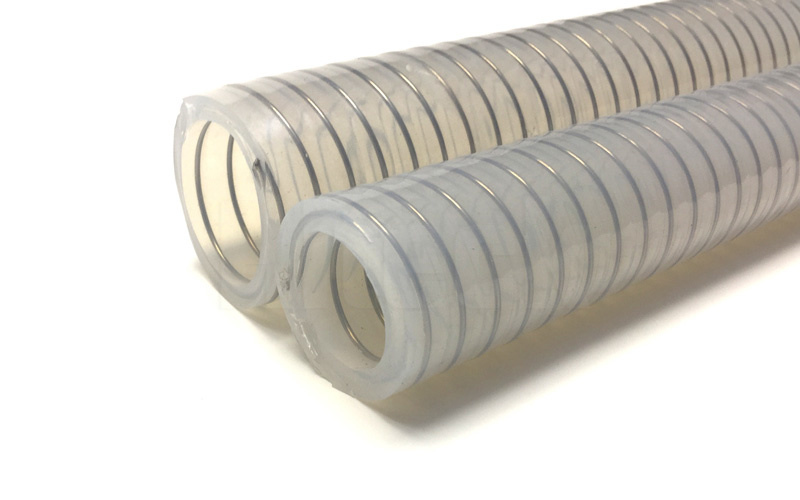

Silicone Steel Wire Hose has a steel wire reinforce inside the silicone layer. It makes the hose more strong and pressure resistant. The hose can be food grade and medical grade. But the raw material should be food and medical grade.
Silicone Steel Wire Hose Details
Wall: 100% virgin silicone Spiral: Steel wire
Various colors and sizes are available
No odor, no toxic, eco-friendly
High temperature and aging resistant
Temperature range: -40℃ ~ 220℃
Size: ID 10mm to 102mm
Common Grade Silicone Steel Wire Hose
Common Grade Silicone Steel Wire Hose is commonly use for vacuum advance systems, turbo systems, coolant systems, emission control, and temperature range applications. Made of Premium grade Silicone. Heavy wall design gives it the ability to handle extreme pressure. Ultra flexible & Excellent tensile strength.
Structure:
Material: 100% virgin silicone
Any colors are available
Features:
1.Material: 100% silicone raw material
2.No odor, no toxic, eco-friendly.
3.High temperature resistance, aging, operative temperature: – 40 ℃ ~ 220 ℃
4.For food, medicine, electronic, industrial use
5.Various colors and sizes are available
Food Grade Silicone Steel Wire Hose

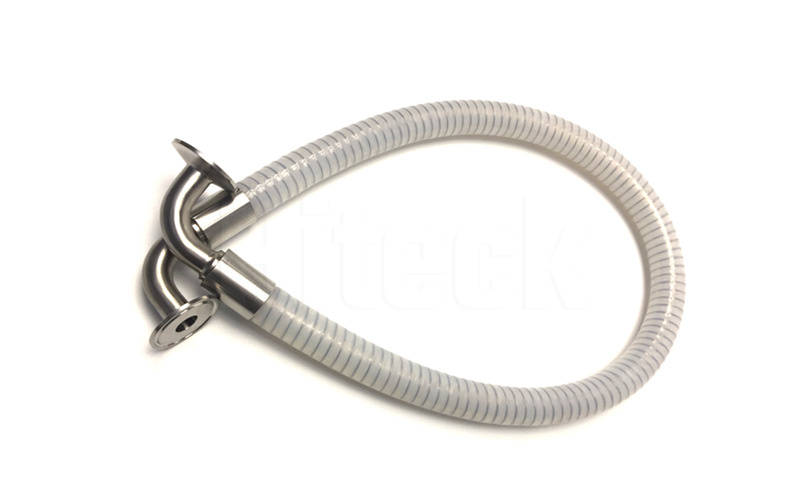

Food Grade Silicone Steel Wire Hose is designed for a variety of pump and transfer applications including, laboratory, bioprocess manufacturing and food and beverage applications. The tubes are able to withstand a high temperature of 200C (intermittent) and are available in various internal diameters and wall thickness. Uses: Food tube products; Food Machinery connecting pipe; Liquor connecting conduit; Water dispenser, coffee maker, water heaters.
Features:
1.Meet FDA Requirements: the food grade silicone materials, and the food grade 304 stainless steel
2.Resistance high pressure and vacuum: made from the polyester fabric four and the steel wire, it is resistand high pressure and vacuum
3.Uperization and Autoclaving: can meet temperature: -40℃ ~ 220℃, and uperization and autoclaving, can be CIP SIP

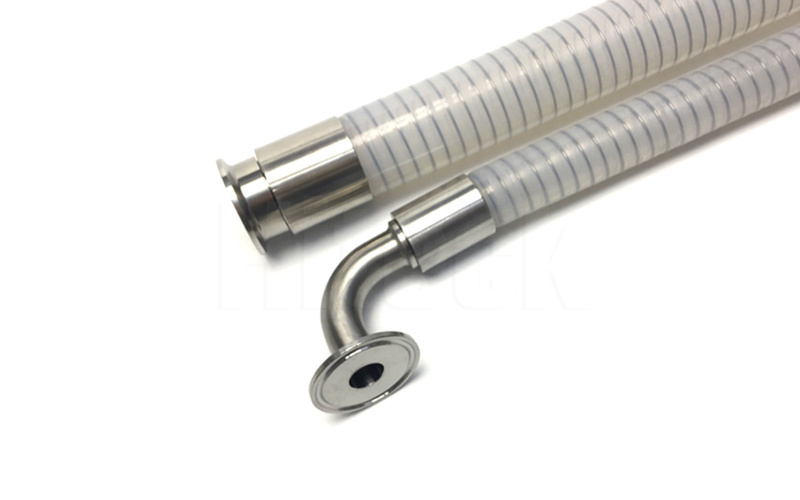

4.Sanitary Coupling: made from 316L stainless, with the standar SZR, one time press molding
Medical Grade Silicone Steel Wire Hose
Medical Grade Silicone Steel Wire Hose has long been used for medical tubing, as it meets the medical industry’s requirements for cleanliness and non-toxicity. Another of silicone’s major features — resistance to extreme temperature variations — has enabled its use in applications where a flexible tubing is needed to handle temperatures not possible with other plastics or rubbers.
Features:
1.Meet Medical Requirements: the medical grade silicone materials, and the medical grade 304 stainless steel
2.Resistance high pressure and vacuum: made from the polyester fabric four and the steel wire, it is resistand high pressure and vacuum
3.Uperization and Autoclaving: can meet temperature: -40℃ ~ 220℃, and uperization and autoclaving,can be CIP SIP
4.Sanitary Coupling: made from 316L stainless, with the standar SZR, one time press molding
Silicone Steel Wire Hose Specification
| ID | OD | L | WP | BP | Weight | |||
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
| 3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
| 1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
| 1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
| 1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
| 1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
| 1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
| 1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
| 1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
| 1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
| 1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
| 1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
| 5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
| 5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
| 5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
| 5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
| 5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
| 5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
| 5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
| 5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
| 3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
| 3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
| 3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
| 1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
Silicone Vacuum Hose
Silicone Braided Hose
Silicone Elbow Hose
Silicone Reducer Hose
Silicone Hose Coupler
Silicone Hump Hose
Silicone T Hose
Silicone Straight Hose
Corrugated Silicone Hose
Silicone Heater Hose
FAQ
What are the typical applications of silicone steel wire hoses?
They are commonly used in automotive, aerospace, medical, pharmaceutical, and food processing industries. These hoses are often used for conveying hot or cold air, gases, fluids, or particulate matter in high-temperature environments.
Is such silicone hose suitable for food grade applications?
Yes, there are silicone steel wire hoses specifically designed for food-grade applications. These hoses are made from food-grade silicone materials that comply with FDA (Food and Drug Administration) regulations. They are commonly used in food processing, beverage production, and dairy applications where a high level of hygiene and food safety is required.
What can the silicone hose use for?
Silicone steel wire hose has 3 series usages. The first one is industrial use, then the second one is food use, while the last one is medical use.
