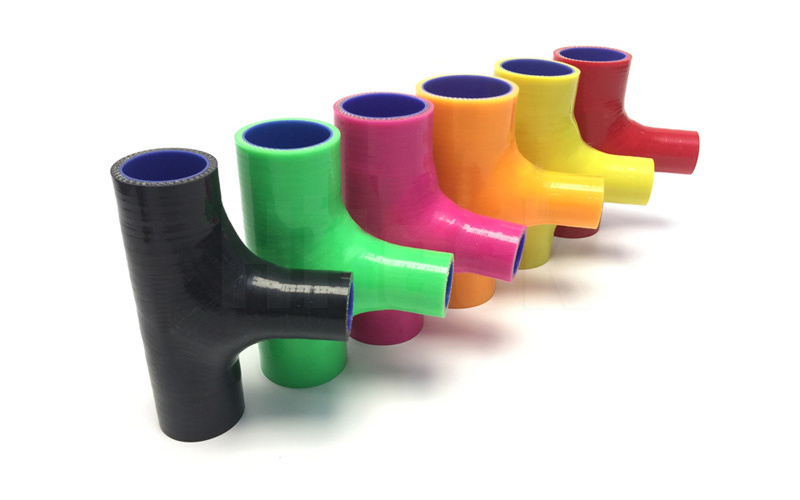

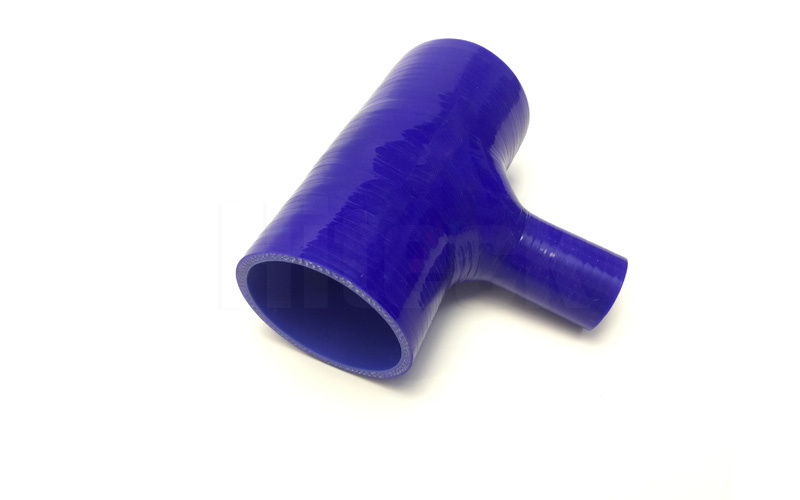

Silicone T Hose
Silicone T Hose
Silicone T Hose is a flexible and durable hose for many applications. Besides, the hose is high resistant to pressure and temperature. While it can work at 200℃ for long term. It’s ideal for various of vehicles such as truck and car.
Details
Inner: 100% High quality silicone Cover: silicone Reinforcement: 4ply Polyester/Aramid fabric with helix wire
Color: Black/Red/Blue/Green/Yellow
No odor, no toxic, eco-friendly
High temperature and aging resistant
Temperature range: -40℃ (-104℉) to +220℃ (+428℉)
Size: ID 16mm to 76mm
Silicone T Hose
T-Shape Silicone Hose is built for endurance and performance in custom coolant plumbing applications. Silicone material with 4ply or 5ply reinforcement makes these hoses tough, reliable. Silicone hose T piece is three-way silicone coupler and flexible to temperatures from -55°C to +250°C. Hand crafted and quality inspected to the high standards. Bright colour with a smooth, shiny “wipe-down” finish. Use with hose clamps to construct the exact bends and lengths needed.
Silicone T Hose Application:
Heating and Cooling Systems, CAC Charge-Air-Cooler (Hot & Cold side), Turbo Charger Systems & Custom Compressor, Intercooler or Intake & Inlet Piping for turbo/Superchargers. etc.
T Piece Silicone Hose Features:
1.Good electrical insulating performance
2.No odor, no toxic, eco-friendly.
3.Having physical laziness,Good air permeability
4.We offer OEM/ODM, We can 3D design, produce according to your drawings
Silicone T Hose Specification
| ID | Layer | Thickness | Length | ID | Layer | Thickness | Length | ||
| inch | mm | ply | mm | mm | inch | mm | ply | mm | mm |
| 1 1/2"x5/8" | 38x16 | 4 | 4-5 | 102x50 | 2 3/8"x1 1/3" | 60x34 | 4 | 4-5 | 102x50 |
| 1 1/2"x1" | 38x25 | 4 | 4-5 | 102x50 | 2 1/2"x1" | 63X25 | 4 | 4-5 | 102x50 |
| 1 3/4"x1" | 45x25 | 4 | 4-5 | 102x50 | 2 1/2"x1 1/3" | 63X34 | 4 | 4-5 | 102x50 |
| 2"x1" | 51x25 | 4 | 4-5 | 102x50 | 2 3/4"x1" | 70x25 | 4 | 4-5 | 102x50 |
| 2"x1 1/3" | 51x34 | 4 | 4-5 | 102x50 | 2 3/4"x1 1/3" | 70x34 | 4 | 4-5 | 102x50 |
| 2 1/4"x1 1/3" | 57x34 | 4 | 4-5 | 102x50 | 3"x1" | 76x25 | 4 | 4-5 | 102x50 |
| 2 3/8"x1" | 60x 25 | 4 | 4-5 | 102x50 | 3"x1 1/3" | 76x34 | 4 | 4-5 | 102x50 |
| 2 3/8"x1 1/3" | 60x34 | 4 | 4-5 | 102x50 | 1 1/2"x5/8" | 38x16 | 4 | 4-5 | 102x50 |
| 2 1/2"x1" | 63X25 | 4 | 4-5 | 102x50 | 1 1/2"x1" | 38x25 | 4 | 4-5 | 102x50 |
| 2 1/2"x1 1/3" | 63X34 | 4 | 4-5 | 102x50 | 1 3/4"x1" | 45x25 | 4 | 4-5 | 102x50 |
| 2 3/4"x1" | 70x25 | 4 | 4-5 | 102x50 | 2"x1" | 51x25 | 4 | 4-5 | 102x50 |
| 2 3/4"x1 1/3" | 70x34 | 4 | 4-5 | 102x50 | 2"x1 1/3" | 51x34 | 4 | 4-5 | 102x50 |
| 3"x1" | 76x25 | 4 | 4-5 | 102x50 | 2 1/4"x1 1/3" | 57x34 | 4 | 4-5 | 102x50 |
| 3"x1 1/3" | 76x34 | 4 | 4-5 | 102x50 | 2 3/8"x1" | 60x 25 | 4 | 4-5 | 102x50 |
| 1 1/2"x5/8" | 38x16 | 4 | 4-5 | 102x50 | 2 3/8"x1 1/3" | 60x34 | 4 | 4-5 | 102x50 |
| 1 1/2"x1" | 38x25 | 4 | 4-5 | 102x50 | 2 1/2"x1" | 63X25 | 4 | 4-5 | 102x50 |
| 1 3/4"x1" | 45x25 | 4 | 4-5 | 102x50 | 2 1/2"x1 1/3" | 63X34 | 4 | 4-5 | 102x50 |
| 2"x1" | 51x25 | 4 | 4-5 | 102x50 | 2 3/4"x1" | 70x25 | 4 | 4-5 | 102x50 |
| 2"x1 1/3" | 51x34 | 4 | 4-5 | 102x50 | 2 3/4"x1 1/3" | 70x34 | 4 | 4-5 | 102x50 |
| 2 1/4"x1 1/3" | 57x34 | 4 | 4-5 | 102x50 | 3"x1" | 76x25 | 4 | 4-5 | 102x50 |
| 2 3/8"x1" | 60x 25 | 4 | 4-5 | 102x50 | 3"x1 1/3" | 76x34 | 4 | 4-5 | 102x50 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
Silicone Elbow Hose
Reducer Silicone Hose
Silicone Hose Coupler
FAQ
What is a silicone T hose?
It is a flexible hose made from silicone material that features a T-shaped configuration. It is designed to split or merge fluid or air flow in different directions.
Which color is available?
We offer you custom service, so that we can offer you any colors as your demand.
Can I ask for different sizes?
Yes of course, we can offer you various sizes. Besides, we can offer you the T hose which has different size for one hose.
