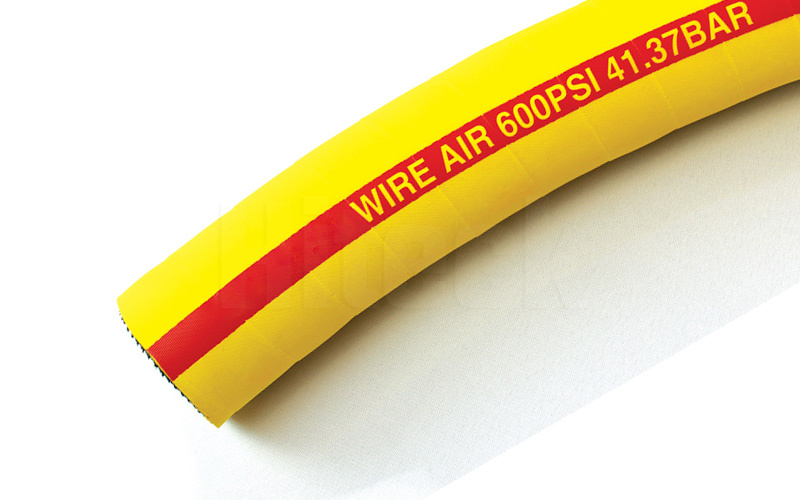

Wire Braided Air Hose
Wire Braided Air Hose
Wire Braided Air Hose adopts NR and SBR as the raw material of the inner tube. Then it’s reinforced with a braided steel wire, which makes it more strong and pressure resistant. While it can work at max 600 Psi. The cover protects the hose from wear and impact.
Details
Tube: NR & SBR synthetic rubber, black color.
Reinforcement: High tensile steel wire braid or spiral
Cover: NR & SBR synthetic rubber, black, yellow and grey are available.
Application: designed to transferhot air to tanks on dry bulk material trucks.
Temperature: -30℃ (-22℉) to 80℃ (+176℉)
Wire Braided Air Hose
Wire Reinforced Air Hose will provide long service life in construction, mining or quarry. Its steel reinforce withstands extreme abuse, tugging and pulling. While the cover make the hose resist weather and wear. Besides, its tube resists heat and oil mist from compressors. But if the tube is subject to too much oil, this hose will swell and fail prematurely, as with excessive or prolonged heat which will degrade the rubber compounds.
Our heavy-duty, wire reinforced 600 PSI hose is available in two different models. One with a standard temperature range, up to 200 °F, and the other one with a high temperature range, up to 275 °F. The high-temp hose is ideal for high-temp compressor without after-cooler.
Wire Braided Air Hose Structure:
Tube: NR or SBR, black color.
Reinforcement: High tensile steel wire braid
Cover: NR or SBR, black, yellow or grey
Wire Braided Air Hose Application:
For heavy duty air supply where high temperature is required. For use with high-temperature compressors without an after-cooler, mining, quarries, construction, industrial air placement, sand blast and heavy duty equipment.
Temperature: -30℃ (-22℉) to 80℃ (+176℉)
Wire Reinforced Air Hose Features:
1.Oil mist resistant tube
2.High working pressure
3.Weather, abrasion and ozone resistant
Specification
| ID | OD | WP | BP | L | ||||
| inch | mm | mm | bar | psi | bar | psi | m | ft |
| 1/2" | 12.7 | 23 | 42 | 600 | 126 | 1800 | 30.5 | 100 |
| 3/4" | 19.1 | 30 | 42 | 600 | 126 | 1800 | 30.5 | 100 |
| 1" | 25.4 | 37 | 42 | 600 | 126 | 1800 | 30.5 | 100 |
| 1-1/4" | 31.8 | 46 | 42 | 600 | 126 | 1800 | 30.5 | 100 |
| 1-1/2" | 38.1 | 52 | 42 | 600 | 126 | 1800 | 30.5 | 100 |
| 2" | 50.8 | 68 | 42 | 600 | 126 | 1800 | 30.5 | 100 |
| 2-1/2" | 63.5 | 80 | 42 | 600 | 126 | 1800 | 30.5 | 100 |
| 3" | 76.2 | 92 | 42 | 600 | 126 | 1800 | 30.5 | 100 |
| 4" | 101.6 | 123 | 42 | 600 | 126 | 1800 | 30.5 | 100 |
| 6" | 152 | 175 | 42 | 600 | 126 | 1800 | 30.5 | 100 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
What is a wire reinforced air hose?
A wire reinforced air hose is a type of air hose that is constructed with a wire helix embedded in the walls of the hose. The wire provides additional strength and support to the hose, allowing it to withstand higher pressure and bending without collapsing or kinking.
What materials is wire braided air hose made of?
Wire-reinforced air hoses are typically made of a synthetic rubber material such as EPDM, nitrile, or PVC, with a wire helix made of steel or other metals.
What are wire-reinforced air hoses used for?
Wire-reinforced air hoses are commonly used in industrial settings for pneumatic tools, air compressors, and air-powered machinery. They are also used in construction, mining, and automotive applications.
