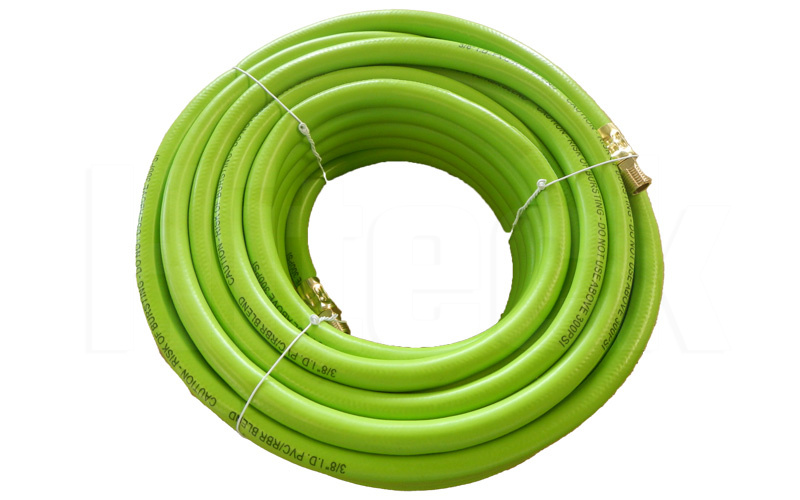

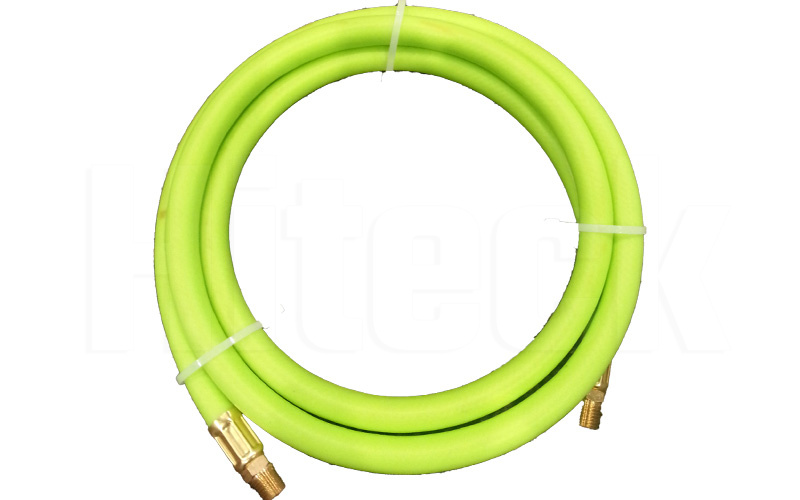

Hybrid Air Hose
Hybrid Air Hose
Hybrid Air Hose is made from special blend of rubber and PVC. Thus it’s light in weight as PVC hose and flexible as rubber hose. It can transfer both gas and liquid such as air and gasoline. It’s ideal for automotive industy and pneumatic tools.
Details
Tube and Cover: special blend of rubber and pvc
Reinforcement: High tensile polyester braid
Temperature: -30°C (- 22°F) to + 65°C (+ 150°F)
Advantage: Anti aging, long working life, light in weight and flexible
Size: 1/4″ to 3/8″
Rubberized PVC hybrid material has both the properties of PVC rubber. Thus it is light in weight and flexible. In addition, the hose has a longer service life. Thus it’s a reliable choice for you. Hybrid Hose is suitable for compressed air and common industrial water. Hybrid hose is an ideal choice for assembly lines and installation workshops. Hybrid polymer hose is widely used in auto equipment with air as the main fluid. It’s also ideal for pneumatic tools, gas pipeline instruments and mechanical lubrication to transfer non-corrosive chemical objects.
Hybrid Air Hose Structure:
Tube and cover: Specialized blend of rubber and pvc
Reinforcement: high tensile polyester braid
Application:
The air hose is widely used in pneumatic tools, air compressors, automated air line, air supply, cleaning equipment, construction equipment and so on.
Hybrid Air Hose Features:
1.Extreme all-weather flexible
2.Flexible even in sub-zero temperatures
3.Max working pressure 300psi
4.Excellent abrasion-resistant outer cover
5.Light weight, flexible, non-kinking, non-twisting
6.UV and ozone resistant, Anti-aging
7.With 1/4” NPT fittings
Temperature: -30℃ (-22℉) to 65℃ (+150℉)
Hybrid Air Hose Specification
| I.D | O.D | W.P | B.P | L | QTY/CTN | Weight | |||
| inch | mm | mm | psi | bar | psi | bar | ft/pc | pcs | kg/ctn |
| 1/4" | 6 | 12 | 300 | 20 | 900 | 60 | 25 | 20 | 18 |
| 1/4" | 6 | 12 | 300 | 20 | 900 | 60 | 50 | 10 | 18 |
| 5/16" | 8 | 14 | 300 | 20 | 900 | 60 | 25 | 20 | 22 |
| 5/16" | 8 | 14 | 300 | 20 | 900 | 60 | 50 | 10 | 22 |
| 3/8" | 9.5 | 15.5 | 300 | 20 | 900 | 60 | 25 | 20 | 25 |
| 3/8" | 9.5 | 15.5 | 300 | 20 | 900 | 60 | 50 | 10 | 25 |
| 3/8" | 9.5 | 15.5 | 300 | 20 | 900 | 60 | 75 | 5 | 19 |
| 3/8" | 9.5 | 15.5 | 300 | 20 | 900 | 60 | 100 | 5 | 25 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
What types of fittings do hybrid air hoses use?
Hybrid air hoses typically use the same fittings as traditional air hoses, such as quick-connect fittings or threaded fittings.
Can hybrid air hoses be used for high-pressure applications?
Yes, hybrid air hoses can typically handle high-pressure applications, but it’s important to choose a hose that is rated for the specific pressure you will be using.
Are hybrid air hoses compatible with all air tools?
Yes, hybrid air hoses are compatible with most air tools. However, it’s important to check the manufacturer’s recommendations for the specific air tool you will be using.
