Tank Truck Hose
Tank Truck Hose

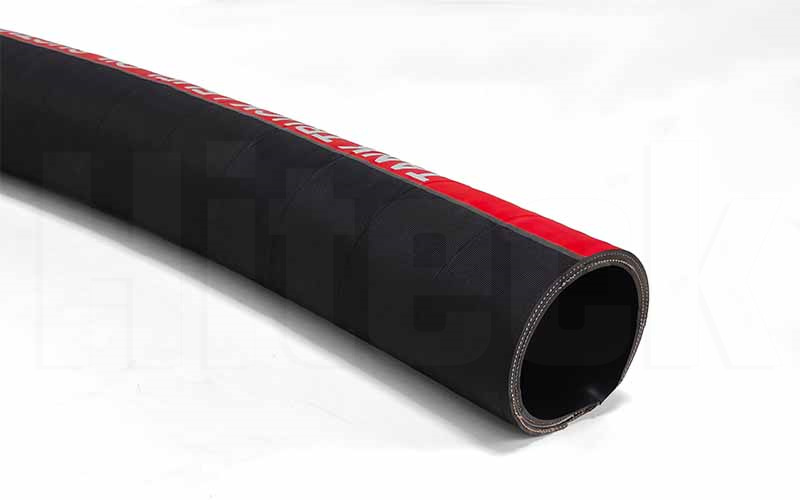

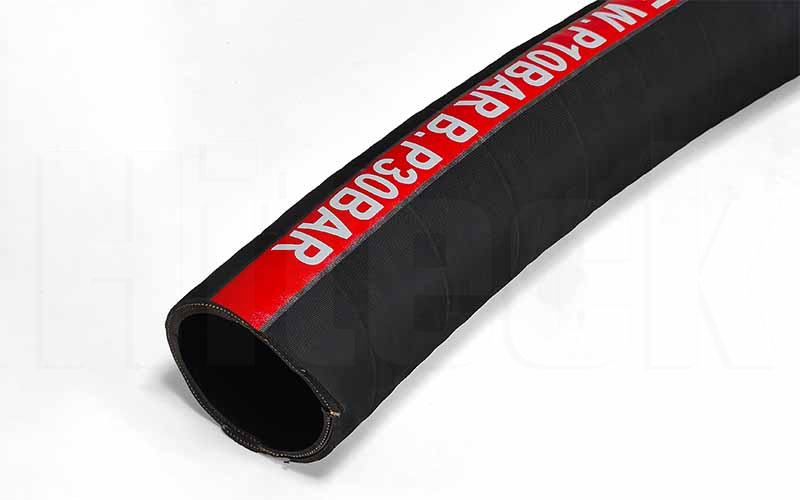

Tank Truck Hose is specially designed for tank truck to load and unload oil. It adopts NBR as the raw material for its great oil resistance. Then it’s reinforced with high tensile strength fibre and steel wire. In addition, it has a anti static wire inside the hose to eliminate the static for the safe oil transfer.
Tank Truck Hose Details
Inner tube: black, smooth, nitrile rubbe
Reinforcement: high strength synthetic fabric and helix wire with anti-static wire
Cover: Black or red; smooth or corrugated; oil, fuel, and weather resistant synthetic rubber
Designed for general refueling equipment to convey aviation kerosene, gasoline, diesel oil and other mineral oils
Tank Truck Hose
Tank Truck Oil hose is ideal for tank tanker, rail tanker and in-plant, oilfield loading operations to transfer gasoline, oil, ethanol blends and other petroleum based products up to 50% aromatic content. It is for pressure, gravity flow, or full-suction service.
Tank Truck Hose Application:
Oil tank hose is for suction and delivery of a wide range of petroleum fuel with aromatic content up to 50% for tank trucks.
Temperature: -32°C to +82°C (-90°F to +180°F)
Tank Truck Hose Features:
1.Weather and abrasion resistant
2.Corrugated cover is available, more flexible
3.Light in weight, easy to handle
4.Designed for aromatic content up to 50%
Specification
| ID | OD | WP | BP | L | ||||
| inch | mm | mm | bar | psi | bar | psi | m | ft |
| 2" | 50.8 | 63 | 10 | 150 | 30 | 450 | 61 | 200 |
| 2-1/2" | 63.5 | 76 | 10 | 150 | 30 | 450 | 61 | 200 |
| 3" | 76.2 | 89 | 10 | 150 | 30 | 450 | 61 | 200 |
| 3-1/2" | 88.9 | 103 | 10 | 150 | 30 | 450 | 61 | 200 |
| 4" | 101.6 | 120 | 10 | 150 | 30 | 450 | 61 | 200 |
| 5" | 127 | 147 | 10 | 150 | 30 | 450 | 30.5 | 100 |
| 6" | 152.4 | 172 | 10 | 150 | 30 | 450 | 30.5 | 100 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
What is a tank truck hose?
It is a flexible hose specifically for use in the transfer of fluids or gases to and from tank trucks. It is to connect the truck’s piping system to the loading or unloading point, such as a loading rack or storage tank.
What's the size of such hose?
Such hose can be 2”-6” according to your demand.
