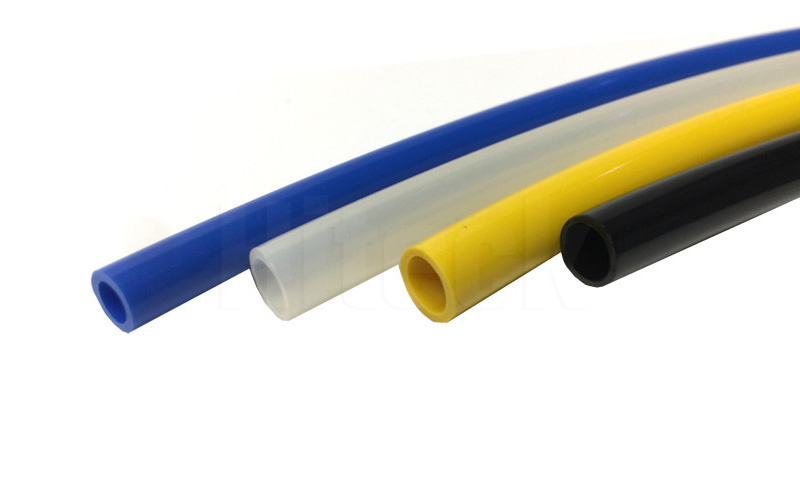

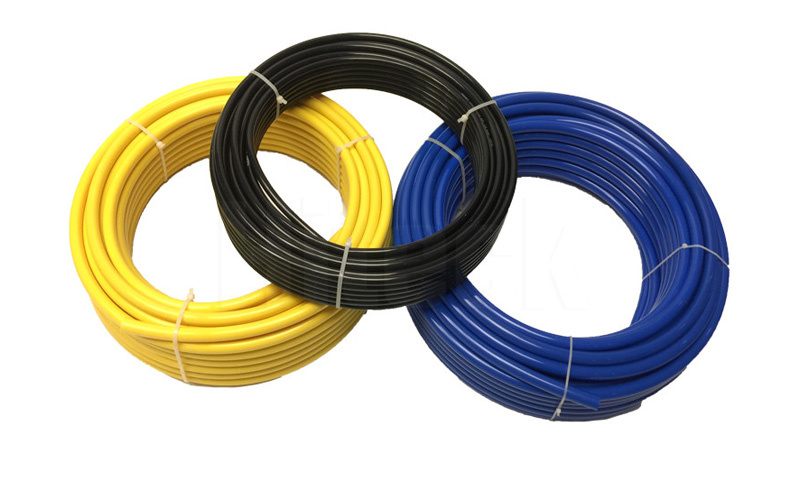

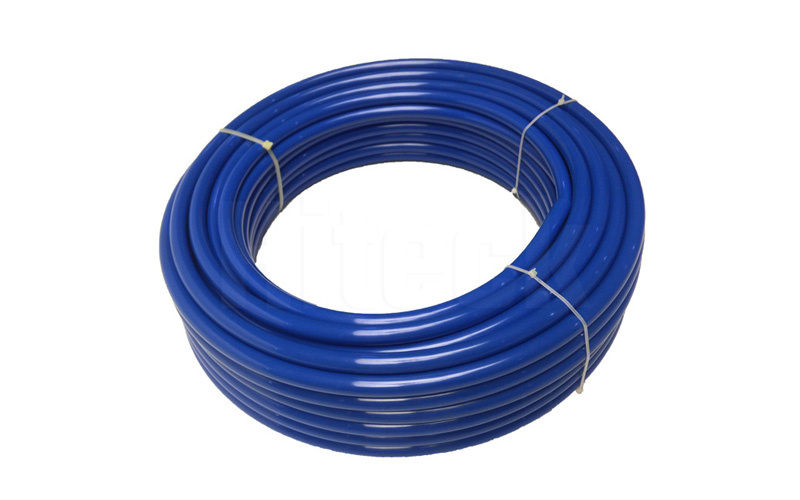

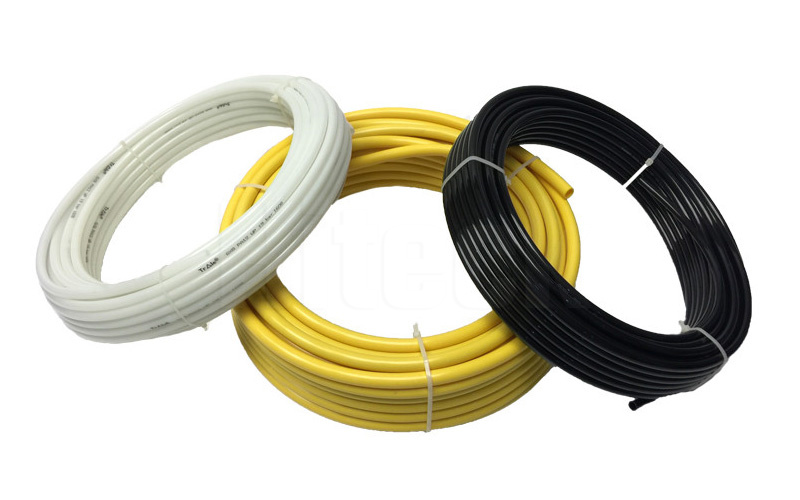

Nylon Pneumatic Tube
Nylon Pneumatic Tube
Nylon Pneumatic Tube is made from high quality PA. It has super high mechanical strength. Besides, it resists to wear, corrosion and oil. It can work at 120℃ and remains flexible in cold weather. Nylon hose can transfer air, water and oil.
Details
PA hose has superior mechanical strength
Excellent abrasive, oil and cold resistance
The nylon air hose is high precision of inside and outside diameter, suitable for various kinds of fittings
It is highly resistant to hydrocarbons oils and chemical products.
Temperature range: -40℃(-40℉) to +121℃ (+250℉)
Size: ID 4mm to 76mm
Nylon Pneumatic Tube
Nylon hose is resistant to solvent, alkali, oil, greas, petroleum product, fungus and molds. Polyamide tube also resists crush, abrasion and crack. Besides, the nylon air hose has good resistance to dilute mineral and organic acid. It will not become brittle or swell because of water and it resists flexural fatigue and vibration. Besides, polyamide tubing is light in weight with excellent bend radius and pressure rating.
PA12 tube is suitable for compressed air system, lubricant system, oil flammable fluid line, hydraulic line, chemical fluid.
Nylon Pneumatic Tube Application:
The PA air hose is to transfer compressed air, water, oil, chemical, etc. While the nylon hose widely serves in light truck as air brake hose and power steering hose. It’s also ideal for forklift truck, loading care excavator, crane, ships and control system line, paint, air condition, etc.
Nylon Pneumatic Tube Features:
1.PA hose has superior mechanical strength
2.Excellent abrasion resistance, oil and cold resistance
3.The nylon air hose is high precision of inside and outside diameter, suitable for various kinds of fittings.
4.Resists to hydrocarbons oils and chemical products.
Temperature: -40℃ (-40℉) to +121℃ (+250℉)
Nylon Air Hose Specification
Size | ID | OD | WP | BP | BR | Size | ID | OD | WP | BP | BR |
mm | mm | mm | mpa | mpa | mm | mm | mm | mm | mpa | mpa | mm |
4.0*0.75 | 2.5 | 4 | 3.10 | 7.54 | 20 | 10.0*2.0 | 6 | 10 | 3.40 | 9.62 | 60 |
4.0*1.0 | 2 | 4 | 4.50 | 11.25 | 20 | 11.0*1.5 | 8 | 11 | 2.10 | 5.51 | 60 |
5.0*1.0 | 3 | 5 | 3.40 | 8.57 | 25 | 12.0*1.25 | 9.5 | 12 | 1.60 | 4.06 | 60 |
6.0*0.5 | 5 | 6 | 1.20 | 2.8 | 30 | 12.0*1.5 | 9 | 12 | 1.90 | 5 | 60 |
6.0*0.75 | 4.5 | 6 | 1.90 | 4.77 | 30 | 12.0*2.0 | 8 | 12 | 2.70 | 6.96 | 60 |
6.0*1.0 | 4 | 6 | 2.70 | 6.92 | 30 | 12.5*1.25 | 10 | 12.5 | 1.50 | 3.89 | 60 |
6.0*1.5 | 3 | 6 | 4.40 | 11.36 | 30 | 12.5*1.5 | 9.5 | 12.5 | 1.80 | 4.84 | 60 |
6.5*1.25 | 4 | 6.5 | 3.10 | 8.3 | 30 | 12.5*1.7 | 9.1 | 12.5 | 2.00 | 5.59 | 60 |
6.2*2.0 | 2 | 6 | 6.70 | 16.74 | 30 | 14.0*1.5 | 11 | 14 | 1.60 | 4.22 | 75 |
6.5*1.0 | 4.5 | 6.5 | 2.40 | 6.4 | 30 | 14.0*2.0 | 10 | 14 | 2.20 | 5.83 | 75 |
8.0*1.0 | 6 | 8 | 1.90 | 5 | 40 | 15.0*1.0 | 13 | 15 | 1.00 | 2.53 | 90 |
7.0*1.0 | 5 | 7 | 2.20 | 5.9 | 40 | 15.0*1.5 | 12 | 15 | 1.50 | 3.92 | 90 |
8.0*1.25 | 5.5 | 8 | 2.50 | 6.42 | 40 | 16.0*1.5 | 13 | 16 | 1.20 | 3.65 | 100 |
8.0*1.5 | 5 | 8 | 3.10 | 8 | 40 | 16.0*2.0 | 12 | 16 | 1.90 | 5 | 100 |
8.7*1.0 | 6.7 | 8.7 | 1.52 | 4.6 | 40 | 18.0*1.5 | 15 | 18 | 1.20 | 3.21 | 100 |
8.0*2.0 | 4 | 8 | 4.50 | 11.43 | 40 | 18.0*2.0 | 14 | 18 | 1.70 | 4.4 | 100 |
9.0*1.5 | 6 | 9 | 2.70 | 6.92 | 40 | 20.0*2.0 | 16 | 20 | 1.50 | 3.92 | |
10.0*1.0 | 8 | 10 | 1.50 | 3.91 | 60 | 22.0*2.0 | 18 | 22 | 1.30 | 3.54 | |
10.0*1.25 | 7.5 | 10 | 1.90 | 4.98 | 60 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
+86 177 3386 3281
Related Products
FAQ
How does a nylon pneumatic tube system work
This system consists of a network of tubes with blowers or vacuum pumps attached at strategic points. The system creates pressure differentials or vacuums within the tubes, which propel the pods through the network. The pods are inserted into the tubes at designated stations and are transported to their intended destination by the pneumatic pressure.
What are the advantages of nylon hose
Strength and durability: Nylon is a strong and resilient material, providing excellent resistance to abrasion, impact, and chemicals.
Flexibility: Nylon hose is highly flexible, allowing for easy installation and maneuverability in tight spaces.
Lightweight: Nylon is a lightweight material, making the hose easy to handle and transport.
Corrosion resistance: Nylon is resistant to many chemicals, oils, and solvents, making it suitable for a wide range of applications.
Temperature resistance: Nylon hoses can withstand a broad temperature range, typically from -40°C to 120°C (-40°F to 248°F), depending on the specific grade.
Where is nylon hose commonly used
Automotive: Nylon hoses are used in automotive fuel lines, brake systems, cooling systems, and pneumatic lines.
Industrial: They are used for transferring fluids, chemicals, compressed air, and gases in industrial processes.
Plumbing: Nylon hoses can be used for water supply lines, irrigation systems, and pneumatic plumbing.
Pneumatics: Nylon hoses are commonly used in pneumatic systems to transport compressed air to power tools, machines, and equipment.
Medical: They are used in medical devices, such as surgical equipment, laboratory instruments, and dental tools.
