Slurry Hose
Slurry Hose

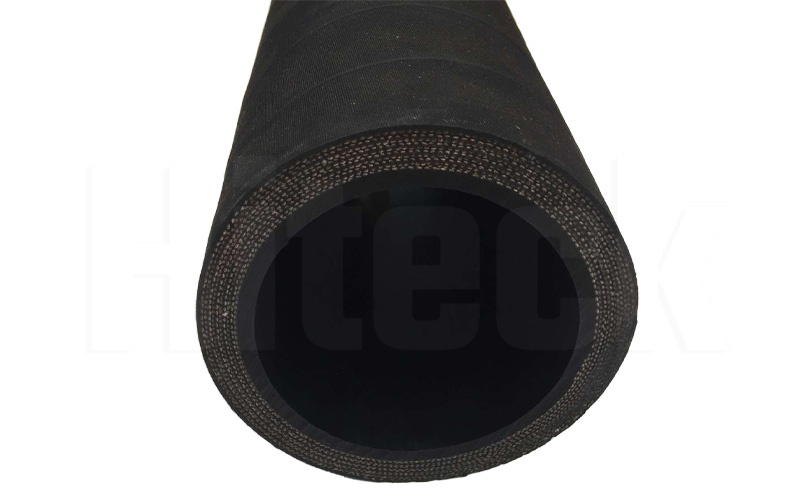

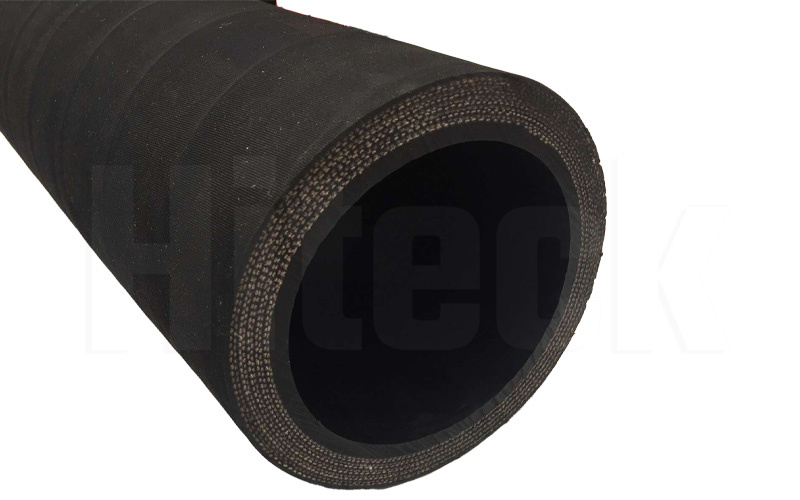

Slurry Hose is specially designed for mines. While it is to deliver the slurry from mine and quarry. Besides, it can also transfer dry abrasives such as sand and gravel. The hose has excellent abrasion and weather resistance. Thus it can work at tough conditions in mines
Details
Tube: Black NR/SBR
Cover: Black NR/SBR, corrugated abrasion and weather resistant
Reinforcement: Multi ply synthetic fabric with steel wire helix
Slurry hoses are designed primarily for handling abrasive and viscous slurries in mine and quarry.
Slurry Hose

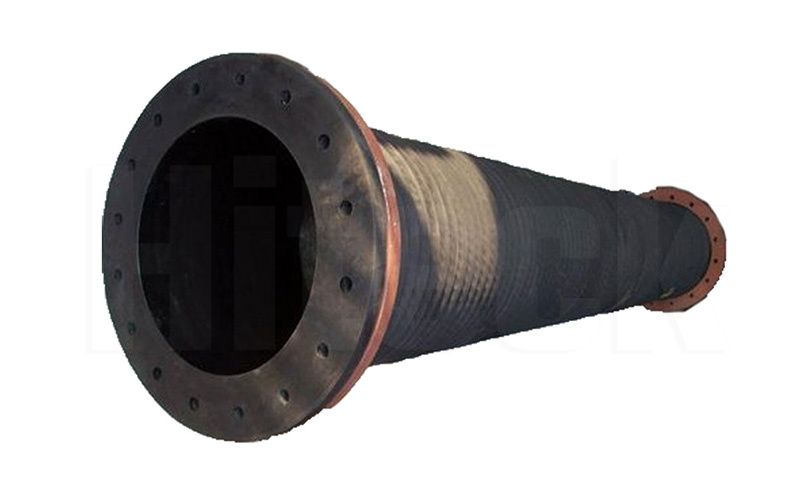

The easy handling and reusable quick-fastening flange system make it easy to install. Absorbs system vibration and saves wear on equipment. Compensates for thermal expansion and contraction, reduces noise. Flexible connection for hard piping misalignment. In mining and other highly abrasive applications, slurry hoses have internal linings to mitigate abrasive wear on the hose. Additionally, the main pipelines used in high abrasive pumping operations are also usually lined with rubber or other material to reduce wear.
Mining Slurry Hose Application:
Slurry suction hose is mainly for handling abrasive and viscous slurries from mine and quarries. They can also be used for handling dry materials such as sand, gravel and grains. The external bolt on the flanges allow for easy installation and uninterrupted free flow.
Slurry Hose Features:
1.Rugged Versatile alternative to inflexible steel piping system
2.Absorb system vibration and saves wear on equipment.
3.Can be cut to length and assembled on-site for immediate installation
4.Split flange coupling
Temperature: -40℃ to +82℃ (-40 ℉ to +180 ℉ )
Slurry Hose Specification
| ID | OD | L | WP | BP | Weight | |||
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll |
| 3/8" | 10.0 | 14.0 | 50 | 116 | 8 | 348 | 24 | 5.09 |
| 1/2" | 11.0 | 15.0 | 15 | 116 | 8 | 348 | 24 | 1.65 |
| 1/2" | 12.0 | 15.4 | 30 | 87 | 6 | 261 | 18 | 2.96 |
| 1/2" | 12.0 | 15.4 | 50 | 87 | 6 | 261 | 18 | 4.94 |
| 1/2" | 12.0 | 15.4 | 100 | 87 | 6 | 261 | 18 | 9.87 |
| 1/2" | 12.0 | 15.6 | 30 | 87 | 6 | 261 | 18 | 3.16 |
| 1/2" | 12.0 | 15.6 | 50 | 87 | 6 | 261 | 18 | 5.26 |
| 1/2" | 12.0 | 15.6 | 100 | 87 | 6 | 261 | 18 | 10.53 |
| 1/2" | 12.0 | 16.0 | 30 | 87 | 6 | 304 | 21 | 3.56 |
| 1/2" | 12.0 | 16.0 | 50 | 87 | 6 | 304 | 21 | 5.93 |
| 1/2" | 12.0 | 16.0 | 100 | 87 | 6 | 304 | 21 | 11.87 |
| 5/8" | 15.0 | 19.0 | 50 | 87 | 6 | 290 | 20 | 7.21 |
| 5/8" | 15.0 | 19.0 | 100 | 87 | 6 | 290 | 20 | 14.41 |
| 5/8" | 15.0 | 20.0 | 25 | 87 | 6 | 290 | 20 | 4.64 |
| 5/8" | 15.0 | 20.0 | 30 | 87 | 6 | 290 | 20 | 5.56 |
| 5/8" | 16.0 | 21.0 | 10 | 72 | 5 | 261 | 18 | 1.96 |
| 5/8" | 16.0 | 21.0 | 30 | 72 | 5 | 261 | 18 | 5.88 |
| 5/8" | 16.0 | 21.0 | 50 | 72 | 5 | 261 | 18 | 9.8 |
| 5/8" | 16.0 | 21.0 | 100 | 72 | 5 | 261 | 18 | 19.61 |
| 3/4" | 19.0 | 22.0 | 20 | 72 | 5 | 215 | 15 | 2.61 |
| 3/4" | 19.0 | 23.0 | 30 | 72 | 5 | 215 | 15 | 5.34 |
| 3/4" | 19.0 | 24.0 | 50 | 72 | 5 | 215 | 15 | 11.39 |
| 1" | 25.0 | 30.0 | 50 | 43 | 3 | 130 | 9 | 14.57 |
Get A Quotation
Hiteck is your expert in hose solutions. Our high quality product, competitive price and extreme service will offer you the best purchase experience. Contact us now for more details and start our business relationship.
